Low-multiplier observation of impurities in steel flow lines

Published：2022-11-02

Views：

Source：

✪The use of computers and controlled silicon to control thermal acid erosion of low-multiple tissues, and the unique PID temperature control calculation method, eliminate uncertainty in the low-multiple tissue sample process and increase the repetition of low-multiple tissue samples.

✪Touch screen manipulation shows, simple visual.

✪The control unit and acid corrosive cell work are designed separately to increase the working life of the control unit.

✪The acid corrosive cells are made of special materials, are resistant to high temperatures and closed corrosive cells ensure the volatilization of the corrosive solution to environmental pollution and human harm.

✪The three-layer approach to the segregation of samples has facilitated their removal and increased work space, improving the overall corrosivity.

✪There are discharge valves that facilitate the discharge of corrosive waste.

✪Sample trays can be removed completely and clean easily.

✪Tight acid corrosive tanks, which are fully usable in conjunction with windboxes, increase the comfort of the working environment.

✪The size diversity is fully customized to meet client requirements.

Temperature range	Room temperature-100℃
Temperature Control Precision	Error±1℃
Temperature Time	0-99min
Clindling function	Control the temperature and timing beeper intermittent alarm
Electronic metrware	Touch screens, single-screen machines
Power voltage	AC-220V 50/60HZ
Heating power	3Kw (other power, voltage custom)
Working temperature	5-40℃
Humidity	0-95% relative humidity
Effective Dimensions Outer Size Weight	Long400 mm* width 400 mm* height 250 mm Long520 mm* width 496 mm* height 550 mm 20Kg

Pictures of product test results I, II, III (reference only)

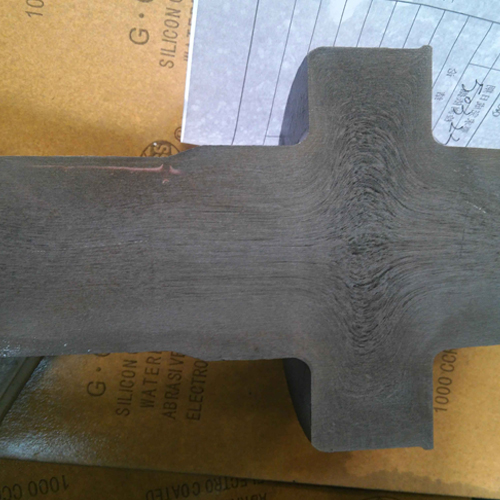

Figure I

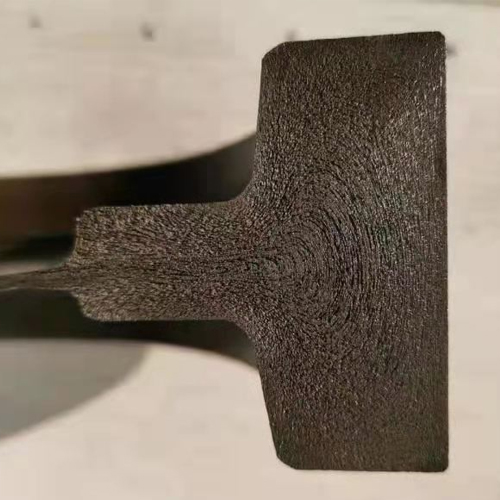

Figure II

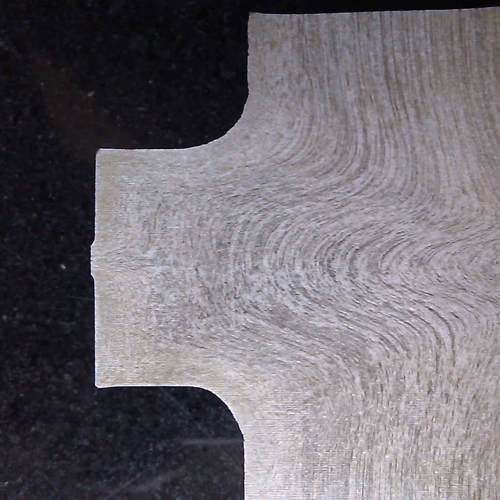

Figure III
