Sandbelt
Grid-on.
The grinding-on products consist of three basic ingredients: grinding, back-base and combinationThe agent.
SandbeltSandbelt
Product Advantages
Mill type
The following are some of the common grinding types in metal processing.
Silicon carbide
Silicon carbide is the strongest and most sharp man-made grinding. Silicon carbide is blue. Black, which is extremely sharp, can be used for rapid residual grinding and cold cutting.● Cast iron.
● Non-ferrous metals such as brass, aluminium and copper
● Non-metal materials such as glass, rubber, plasticsMaterials and stones
● Final surface treatment of wood and stainless steel
● Scratch the plaque.
Aluminium brown oxide
Aluminium brown oxide is a tough, durable synthetic grinding material, which is characterized by The blade is long-lived and resilient, even at high speed. The government has been able to maintain a strong cutting power.
● Black metal
● Aluminium
● Hardwood
Aluminium oxide thermally processed
Aluminium oxide, which is thermally treated, is a hard cold-cracker grinder that uses Long lifespans, flexible cutting, and applicable to a wide range of materials.
● Black metal
● Wood sand
Konggyu.
The Zhonggyu is a very strong synthetic cold-screech grinder.Flexibility, applicationAnd then you're going to grind it in a big amount. The grinder is more resilient and sharper than aluminium oxide.A micro-crystal structure that controls fragmentation and self-reactive performance.
● Heavy burden of all ferrous and non-ferrous metals♪ Dutch grinding and grinding ♪
● The grinding of wood, plywood and plasters.
● Breathing of fibres, rubber and plastics
Ceramic
The ceramics have sub-mixed structures, and each grain of milling can be continuously sharp. Cut the blade, thereby reducing the cold-cut temperature and extending the useful life.
● All ferrous metals/ Non-ferrous metals, carbon steelAnd rare alloys.
Backbase Type
As the base for the grinding material, the back-base is combined with the blender to support and supportIt's a fixed grinding.
Use. Back-bases for grinding are: Buki, paper-based.Polyester membrane reveal and sulphide Fibre backskin, etc.. The burki band is commonly used in metal processing.
- Bucky.
Buki, which is coated with grinding, is determined by weight. Fill or"Far-treatment" to achieve various back-based characteristics, the most of whichThe thing that stands out is tenderness. Resilient. The fabric used as a buquis consists of cotton, polyester, polyester/Nyron and polyester/Ton and /Ton and /Ton and /Ton and /Ton and /Ton and /Ton and /Ton and /Ton and /Ton and /Ton and /Ton and /Ton and /Ton and /Ton and /Ton and /Ton and /Ton and /Ton and /Ton and Ton and /Ton and Ts and Ts, / Zipper.
The fabric.3g. mass: J-Wt(also known asThe “cowboy cloth” fabric is the lightest and the most flexible. X-Wt (also known as"Slash-tweeded coarse" fabric is relatively heavy and can be selected for different flex, The most extensive application is in terms of strength and durability. Y-WtIt's a heavy slashy-grain cloth that can be used. Heavy load, heavy excess grinding.
Type of combination agent
The grinding needs to be fixed to the back base through a combination of the system. All the grinding is covered.Both of the products were used twice. Rubber coating process, i.e.Bottom glueandFloat.。
Of which the first layer of the mixture coated on the back base is referred to asBottom glueThe bottom glue is used as a grinder and a back. between the glue layers.
The second layer of the combination is calledFloat., coated on grinding and bottom glue for use in fixing grinding particles, and Provide the necessary mechanical strength for the finished product.
Animal glue, tungsten.andPyroclose resinIt's the three most common basic combinations. The glue can use a variety of combinations, for example.Animal glue./ Animal glue, tungsten resin/Animal glue, resin/Signiomer Wait. Animal glue./ Animal glueIt's the most flexible combination. Chew/SigniomerCombinant agent system It has features such as damp, heat-resistant, harder, and well-remaining grinding.
Sand-planting
The grinding is based on two-plant sands: Sand-plantingandSmack.。
Sand-planting | Smack. |
The surface of the sand and grinding equipment One. General 50%to75%It's covered in grinding. The material particles are evenly spread, which helps to mitigate Blockage caused by wood crumbs or metal particles. | The whole surface of the sand is covered with grinding. It's covered in grinding, not between particles. Zoom. Cyclops are the most common sand-planting. Mode, to maximize the amount of surplus Gravity and maximum useful life. |
|
|
Sand-planting (The milling is less than the heavy sand.)1/3） | Smack. |
Super-paintment
Super-paintment is an optional final coating and grinding aid, coated on the face.It helps to keep it. Lower grinding temperatures and prevent congestion.
Technical Specifications
General heavy-buggy sandbelts
Heavy-butk-based products can be converted to narrow bands, broadband and different sizes of sand bands for different needs in metal processing,
The scope covers material removal until polishing, and the size is very broad and usually requires custom-made processing based on the customer ' s equipment.
Products are usually used in conjunction with handheld equipment, stand-by sand bands or large sandlight machines
Sandband Selection Recommendations
Type of materialSpecification of products
Best Yu Okay.
R980P R996 R976 R984 R891 R889+ R293 R228C R445
Aluminium alloy |
Cast iron. |
Copper/ Copper ◆ ◆ ◆ ◆ |
Carbon steel ◆ ◆ |
titanium alloy ◆ |
High temperature alloy |
Cobalt chromium molybdenum alloy ◆ |
stainless steel. |
Apply |
Material removal |
Half-scrutinised. |
Fine- I'm going to get you. ◆ ◆ ◆ |
Application
A table of recommendations for the particle size of the sandbelt.
| Material removal | Half-scrutinised. | Fine/Shine |
| 24-50 | 60-100 | 120-400 |
Disorder clearance.
Common problems |
Solutions |
Common problems Solutions
| ||||||
| ||||||||
General heavy-buggy sandbelts
Best performance, used for cast iron, carbon steel, titanium alloy, high temperature alloy, cobalt chromium alloy, stainless steel
R980PSandbelt
● - Porcelain. - The speed of grinding.Come on, long life.
● A thick back base, suitable for grinding all kinds of heavy metal under high pressure, which is not easily torn, and is not a belt.
● Unique surface overdosing to prevent metal surface burns, especially for stainless steel and other thermal sensitive metals
Particle scale: 24-120
Sand planting: Cyclops
Back base: Y-wt Polyester
Roughing: dry grindingWater grinding
Cold cutting coating: Yes
Auxiliary equipment: handheld equipment, stand-by sand bands or large sand-ray machines
Best performance, used for cast iron, carbon steel, titanium alloy, high temperature alloy, cobalt chromium alloy, stainless steel
R996Sandbelt
● The ceramic grinding, the speed of the grinding, the long life.
● A thick back base, suitable for grinding all kinds of heavy metal under high pressure, which is not easily torn, and is not a belt.
● Unique surface overdosing to prevent metal surface burns, especially for stainless steel and other thermal sensitive metals
Particle scale: 36-80
Sand planting: Cyclops
Back base: Y-wt Polyester
Roughing: dry grindingWater grinding
Cold cutting coating: Yes
Auxiliary equipment: handheld equipment, stand-by sand bands or large sand-ray machines
Best performance, used for cast iron, carbon steel, titanium alloy, high temperature alloy, cobalt chromium alloy, stainless steel
R976Sandbelt
● Ceramic grinding, fast grinding, high value, suitable for medium-pressure grinding of all kinds of hard-earned metal material
● Unique surface overdosing to prevent metal surface burns, especially for stainless steel and other thermal sensitive metals
Particle scale: 36-120
Sand planting: Cyclops
Back base: Y-wt Polyester
Roughing: dry grindingWater grinding
Cold cutting coating: Yes
Auxiliary equipment: handheld equipment, stand-by sand bands or large sand-ray machines
General heavy-buggy sandbelts
It's good for cast iron, brass, carbon steel.
R984Sandbelt
● - Porcelain. - The speed of grinding.Come on, it's a good price.
● And thicken the back, It's a good thing for a medium-pressure grinding application.
Particle scale: 36-120
Sand planting: Cyclops
Back base: Y-wt Polyester
Roughing: dry grindingWater grinding
Cold cutting coating: none
Auxiliary equipment: handheld equipment, stand-by sand bands or large sandlight machines
It's good for all common materials.
R891Sandbelt
● The Zen-Gelite grindings, with self-absorbed power, The speed of grinding is faster than the market.Fluid product upgrade20%
● A thick back base, suitable for grinding all kinds of heavy metal under high pressure, which is not easily torn, and is not a belt.
● A unique surface overdoping, preventing gold.Surface burns, especially for stainless steel, titanium alloy processing
Particle scale: 40
Sand planting: Cyclops
Back base: Y-wt Polyester
Roughing: dry grindingWater grinding
Cold cutting coating: Yes
Auxiliary equipment: stand-alone sand bands or large sand-ray machines
It's good for all common materials.
R889+Sandbelt
● The Zen-Gelite grindings, with self-absorbed power, ♪ Ripping ♪Speed!
● Improving the process of combining agents, Effective protection against dissalm, which is higher than the lifetime of previous generations15%Above
● A unique surface overdoping, preventing gold.Surface burns, especially for stainless steel, titanium alloy processing
Particle scale:40-120
Sand planting: Cyclops
Back base:Y-wt Polyester
Roughing: dry grindingWater grinding
Cold cutting coating: Yes
Auxiliary equipment: handheld equipment, stand-by sand bands or large sandlight machines
General heavy-butk tape
Good performance, general use, for aluminium alloy, cast iron, carbon steel, stainless steel.
R293Sandbelt
● Aluminium oxide grinders, standard European particle size, uniform surface processing effect
● Unique resin technology, effective detachmentThe effects of sand
Particle scale: 24-400
Sand planting: Cyclops
Back base: Y-wt Polyester
Roughing: dry grindingWater grinding
Cold cutting coating: none
Auxiliary equipment: handheld equipment, stand-by sand bands or large sandlight machines
Good performance, general use, for aluminium alloy, cast iron, carbon steel, stainless steel.
R228CSandbelt
● Use quality aluminium oxide grinders, and grinding is efficient and fast
● Powery polyester tampons, hard to change.The shape, the length of the sand belt.
Particle scale: 40-400
Sand planting: Cyclops
Back base: X-wt Polyester cotton
Roughing: dry grinding
Cold cutting coating: none
Auxiliary equipment: handheld equipment, stand-by sand bands or large sandlight machines
Good performance. It's used to process aluminium, brass, titanium, stainless steel.
R445Sandbelt
● Silicon carbide. It's a good colored grinder.Metal
● Polyester backs, dry or water grinding
Particle scale:60-240
Sand planting: Cyclops
Back base:X-wt Polyester
Roughing: dry grindingWater grinding
Cold cutting coating: none
Auxiliary equipment: handheld equipment, stand-by sand bands or large sandlight machines
Temperature soft-butk tape
Soft-butk-based tape is usually converted to narrow bands for applications requiring special shapes of the piece in metal processing.
Used in semi-sweet to polish, in conjunction with handheld equipment or stand-alone sand turbines.
Sandband Selection Recommendations
Disorder clearance.
Common problems |
Solutions |
Common problems Solutions
| ||||||
| ||||||||
Conventional flexible butk tape
Best performance. It's used for brass, titanium alloy.
R946Sandbelt
● Porcelain grinding, grinding speed.Come on, long life.
● Soft polyester thongs, anti-ra.The shape is stretched and it can be fitted to the surface of the work.
Particle scale: 60-320
Sand planting: Cyclops
Back base: J-wt Polyester cotton
Roughing: dry grinding
Cold cutting coating: Yes
Auxiliary equipment: handheld equipment, stand-by sand bands
Good performance, general use, for aluminium alloy, cast iron, carbon steel, stainless steel.
R376Sandbelt
● Aluminium oxide grinders, standard European particle size, uniform surface processing effect
● Unique resin technology, effective detachmentThe effects of sand
Particle scale: 60-600
Sand planting: Cyclops
Back base: J-wt Cotton
Roughing: dry grinding
Cold cutting coating: none
Auxiliary equipment: handheld equipment, stand-by sand bands
It's good. For processing brass, titanium alloy.
R426Sandbelt
● Optimum for carbide silicon grinders to achieve uniform surface effects
● Soft polyester thongs, anti-ra.The shape is stretched and it can be fitted to the surface of the work.
Particle scale: 80-400
Sand planting: Cyclops
Back base: J-wt Polyester cotton
Roughing: dry grinding
Cold cutting coating: none
Auxiliary equipment: handheld equipment, stand-by sand bands
Round ball, buky.
The polymer grinding is a grinding material that combines many of the single grindings with special blends.Particle. Use normal grinding
The sand belt of the material, which is only a single-story grinder on the surface, and the sandbelts that are used with the polymer grinder, are equivalent to the one in which theThe surface is bound to multiple layers.
Mills.
Good performance, generic, for aluminium alloy, cast iron, carbon steel, stainless steel

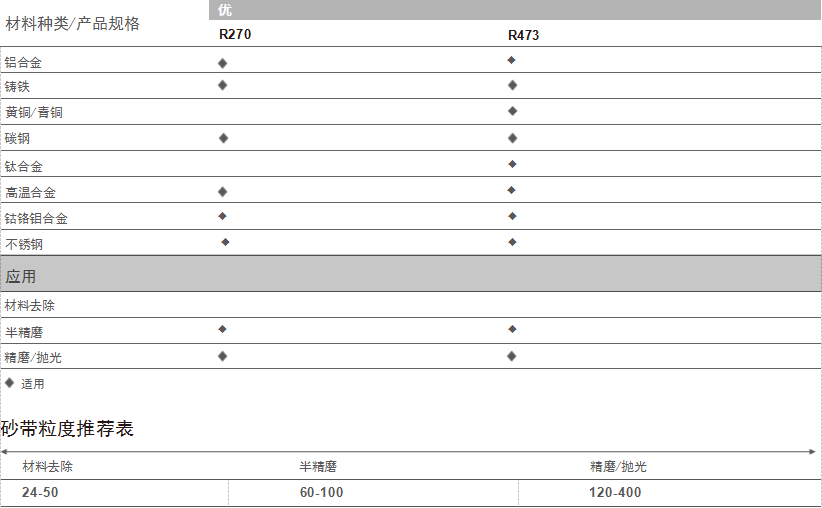

Sandband Selection Recommendations
Disorder clearance.
Common problems |
Solutions |
Common problems Solutions
| ||||||
| ||||||||
The ball is re-buky tape.
Capable of processing aluminium alloy, cast iron, carbon steel, stainless steel
R270Sandbelt
● Aluminium oxide polymers, long life, and uniform surface processing
● Unique resin combined technology for application under medium-pressure conditions
Particle scale: 60-400
Sand planting: Cyclops
Back base: X-wt Polyester
Roughing: dry grindingWater grinding
Cold cutting coating: none
Auxiliary equipment: handheld equipment, stand-by sand bands
High performance, usable for processing of various non-ferrous metal materials
R473Sandbelt
● Silicon carbide polymers, suitable for grinding titanium alloys and other common metals
● Unique resin combined technology for application under medium-pressure conditions
Particle scale: 60-600
Sand planting: Cyclops
Back base: X-wt Polyester
Roughing: dry grindingWater grinding
Cold cutting coating: none
Auxiliary equipment: handheld equipment, stand-by sand bands
