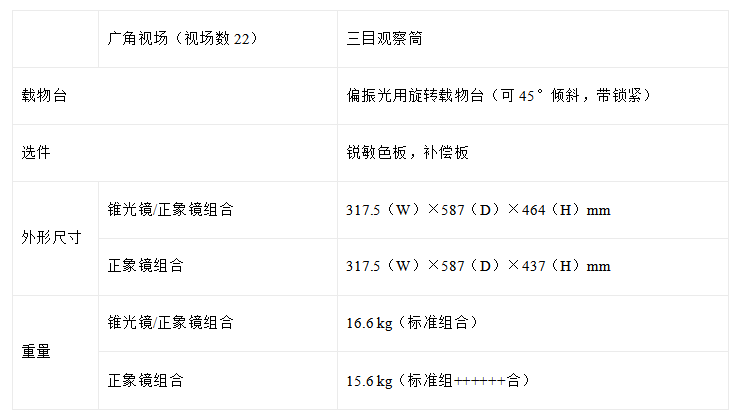

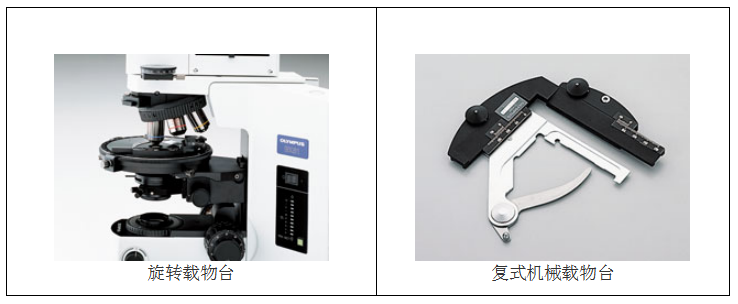

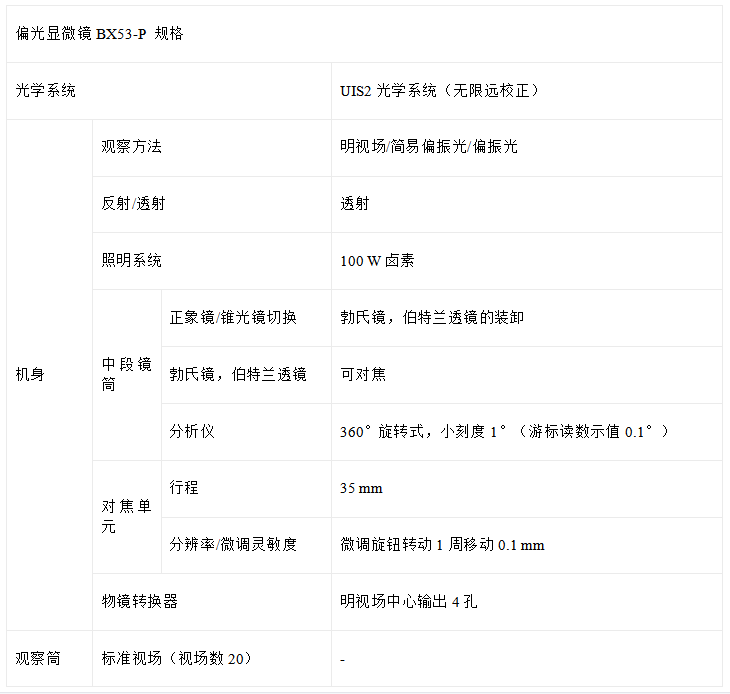

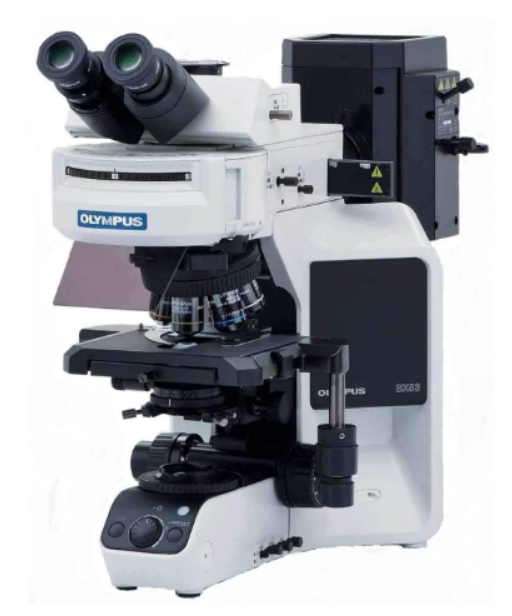

The view field has reached 22, and the range of observation has increased 21%, compared to the general microscope of 20. Moreover, the lighting system uses 12 V 100 W bright halogen lamps, which allow for the observation of bright and true oscillation images. The platform that supports efficient diagonal observation has a rotor board with a rotor board of the rotor centre output, and samples can be rotated. In addition, the observation efficiency is enhanced by having a fixed structure at 45 degrees. The rotor stage is equipped with a re-engineered machine load table that controls the small movement of the samples.

Annex for Advanced Optical Observation

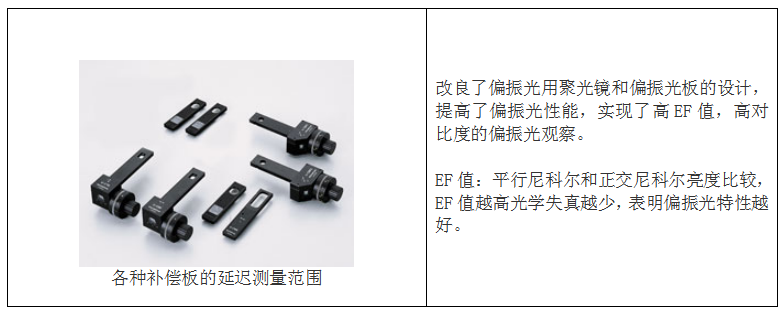

Annex with excellent photometric properties

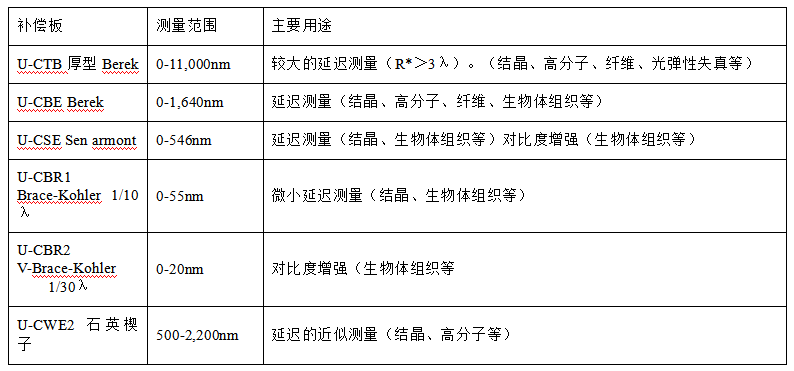

Delayed measurement range of various compensation panels

*R indicates delay.

To improve the accuracy of the measurements, it is recommended to be used with the interferoscope 45IF546. (except U-CWE2)

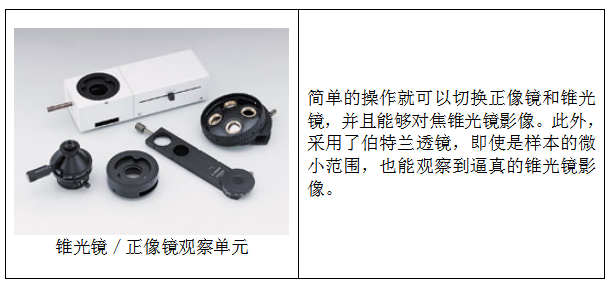

Visible positive mirror images and cone mirror images

Digital cameras are used to record and save digital images

The tri-eye viewer can connect to a digital camera. It can save and record digital images and help create inspection reports.

The Limba Image Analysis Software is designed for industrial microscope applications with visual operating menus and software routines.

Defined application requirements.

Quality assurance period: Equipment warranty from the date of acceptance and acceptance12Month， (c) Provision of spare parts on a permanent basis.
