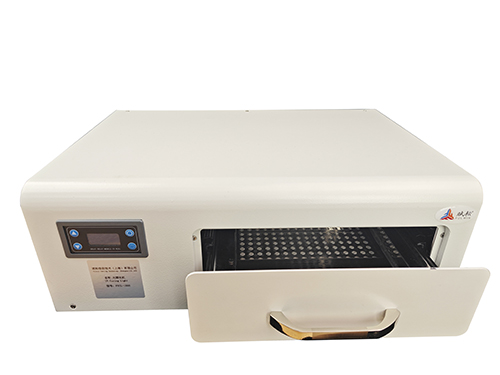

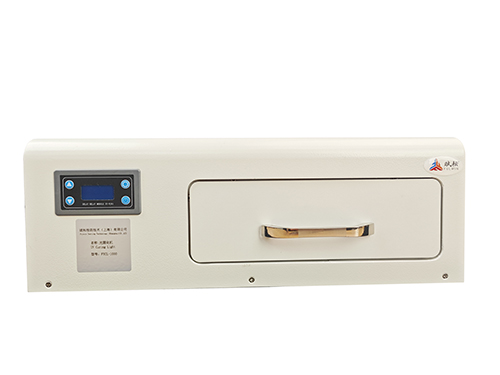

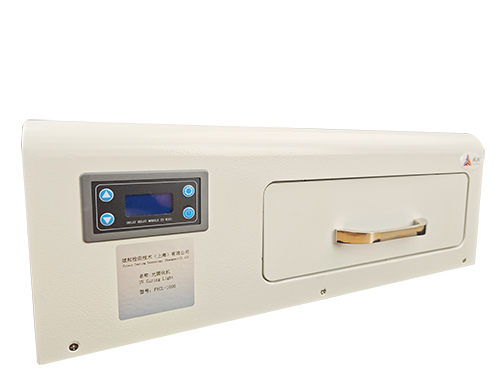

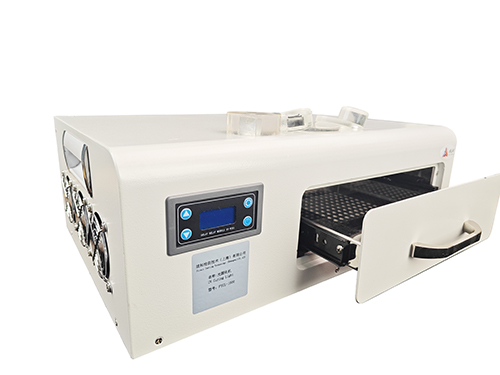

FYCL-10000 UV Curing Light
Pilot-laying, semiconductor technology, microelectronics, medical, photovoltaic, temperature-sensitive materials for:
Attention
1. The UV light from the light is a certain harm to the human body. Close the drawer while running.
2. Frequent inspection of wires, which, in turn, cause electrical leakage.
3. Do not unopen the lights and change the connection.
For other uses, please refer to the User Note. Use pure water as a cooling medium.

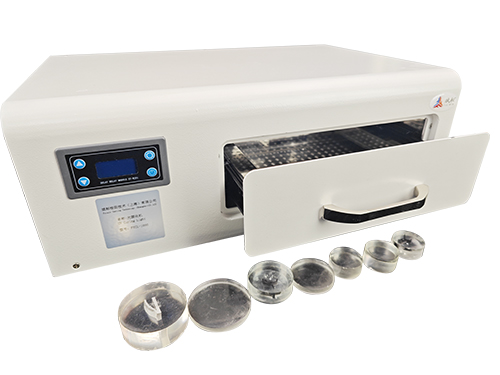

✪It can also be embedded in multiple samples and be solidified in a minute.
✪Solidified under blue light without harmful UV
✪"All resins are used in compounds, without special mixing. "
✪The storage time was extended because the polymers only occur in blue light
✪Top temperature 80°C
✪High Transparency Effect
✪It's good for alcohol and acid.
✪For scanned mirror testing
✪No stink.
✪Excellent mobility.
Accompanying resin | Photocondensation resin |
| Model | FCM-UV1000 |
| Capacity | 1000 ml/bar |
Device Parameters
Wavelength | 365nm |
| Lighten-face size | 160X160mm |
| Distance of ultraviolet light | 5-15mm |

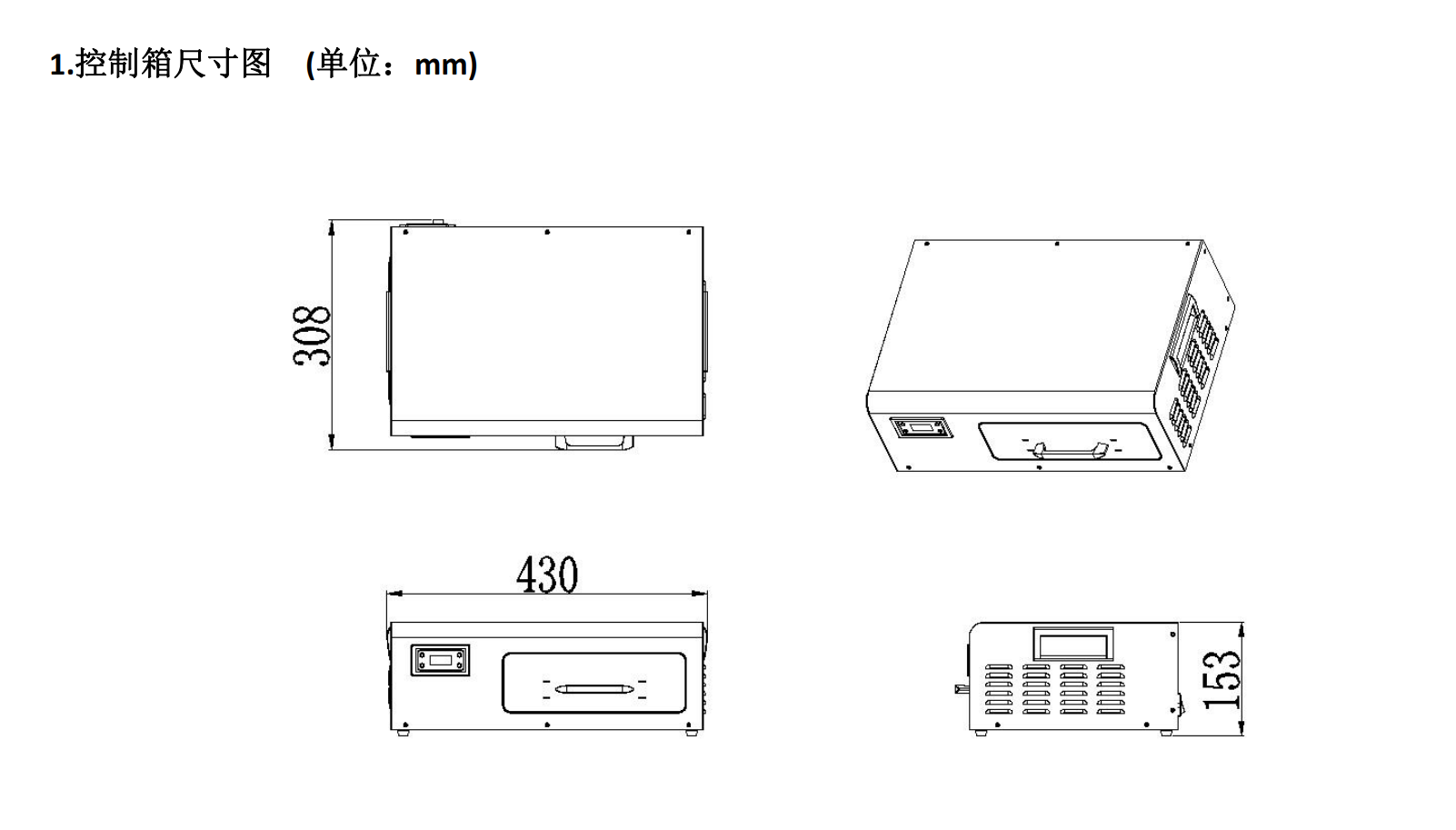

Control cabinet parameters
| Design | Force cold |
| Power | 120W*2 |
| Control Mode | ON-OFF |
| Consumption Power | 250W |
