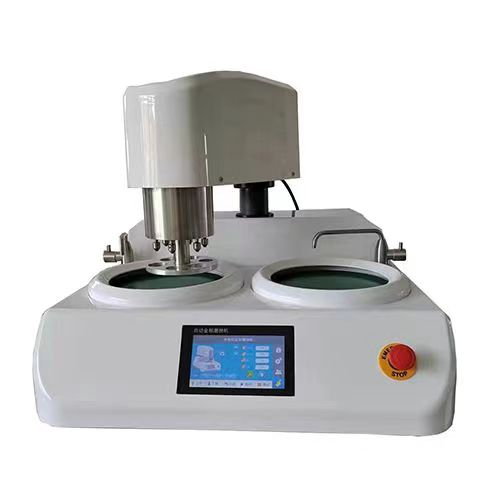

Full automatic double-driver FY-MP-300

Attention:

The discharge should be kept free to avoid overloading of internal cavities through the inner walls and damage to other parts.

When you press the stop button and then press the start button, the device will run at the speed that it ran before the last stop.

The stop key and start key are to be moved out of the back mouth before they are pressed, otherwise interference will occur.

The first rough-drive sample should be properly reduced, and the rate of turn should be extended for a longer period of time.

Pour attention:

The polishing and pressure levels should not be excessive and the polishing and plating sheets should be checked for flatness and not be excessive at too much speed.

When an abnormal sound is found in the machine, the vehicle should be stopped immediately for inspection.

The equipment should be maintained in the case of each operation.

Product Advantages
✪8-inch touch screen operation control.

✪Automatically shift pressure, precise force control.

✪The continuous sample is programmed, the automatic stoppage of each process is completed, the photophotos can be replaced, while the view of the sample effects can be suspended, the time countdown of each process is measured, the sample is accurately sampled and the time is saved.

✪One at a time, one at a time.

✪Accomplishable droplet function.

✪Automatic lock-down function

✪LED light.

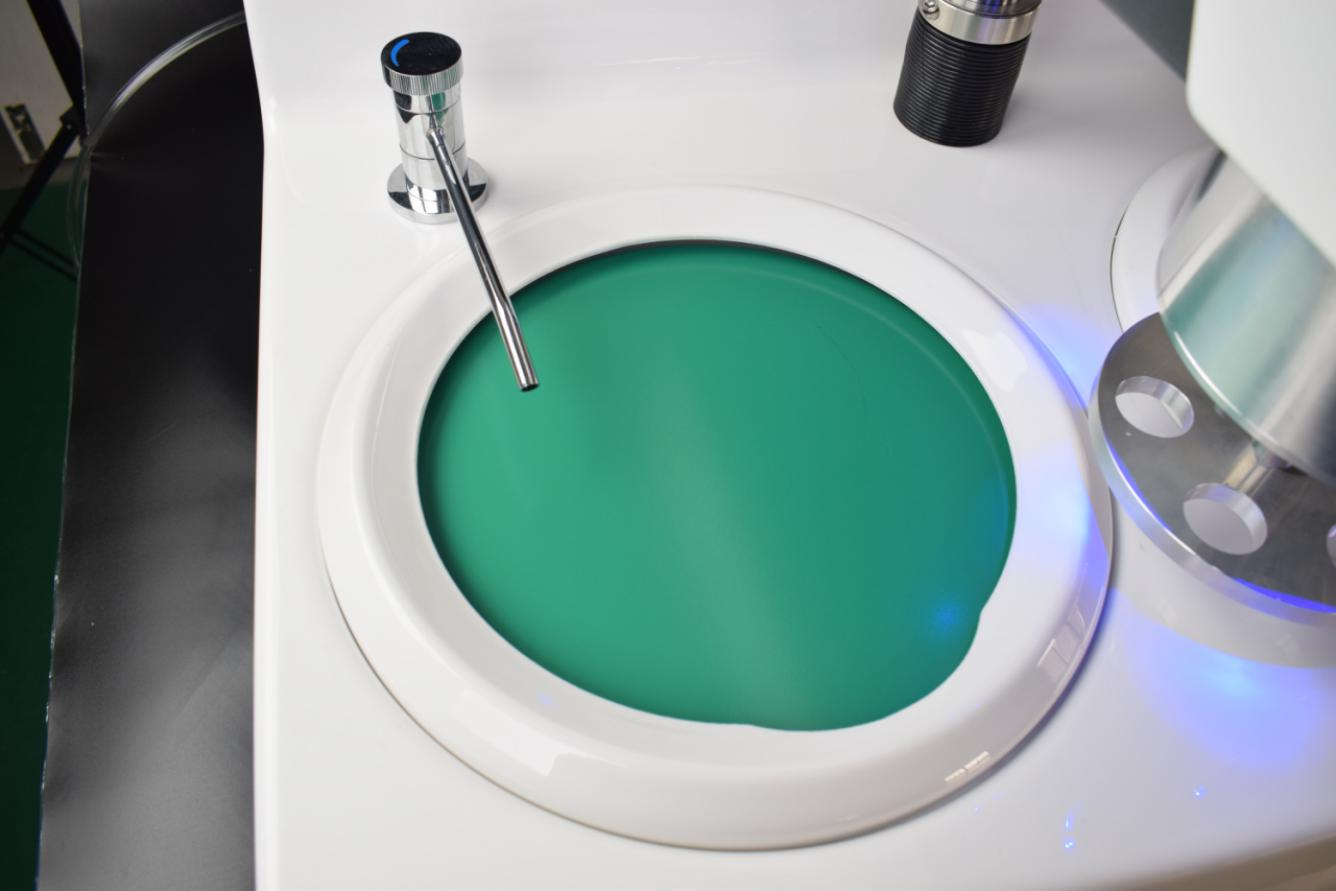

✪The conical grinding system, which is easier to replace, is easier to clean.

✪The useful life of the squirm-proof elliptical tank and the maintenance of the table is designed to protect the serviceable parts.

✪Large-calibre drainage pipes to address the problem of congestion.

✪Three models of sample methodology, suitable for different material samples.

Technical Specifications

Item

Specifications

Disk

Φ230mm  Φ250mm  Φ300mm (specify Φ250mm, remainder)

 Workspace Turn Speed

100-1000 r/min (specifiable speed rotation)

 Turning the work disk

Clockwise or Counterclockwise Altruable

    - Swimming.

30-150r/min

♪ And grinding your head and turning it ♪

Clockwise or Counterclockwise Altruable

♪ To grind the twist of the head ♪

6Nm

Workboard power

750W

Power of the grinder

120w

Sample Time

0-99min

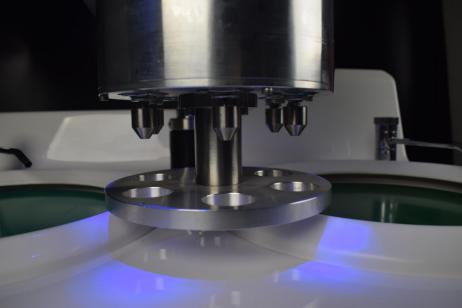

Number of samples simultaneously

Six.

Sample Specifications

Φ25 Φ30 Φ40 Φ50 (Stand 30, rest selection, support customization)

Maximum height of the sample

30mm

Pressure

Single-temporal pressurization.

Sample pressure range

5-65N

Operating control

8-inch touch screen (support for language selection, back light alignment)

Emergency halt.

Quick-Stop button

Power voltage

AC220V  50HZ (N+L1+PE)

Water pressure

1-10bar/0.1-1Mp

Into the hose.

Φ8mm long 2m

Drains.

Inner diameterΦ40

Temperature of the environment

5-40℃

Environmental humidity

0-95% RH, no condensation

Dimensions

650x475x550mm

Weight

60Kg
