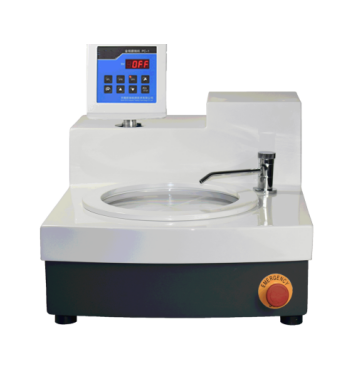

Advanced single-disk infinite grinder FYP-1

Attention:

The discharge should be kept free to avoid overloading of internal cavities through the inner walls and damage to other parts.

When you press the stop button and then press the start button, the device will run at the speed that it ran before the last stop.

The stop key and start key are to be moved out of the back mouth before they are pressed, otherwise interference will occur.

The first rough-drive sample should be properly reduced, and the rate of turn should be extended for a longer period of time.

Pour attention:

The polishing and pressure levels should not be excessive and the polishing and plating sheets should be checked for flatness and not be excessive at too much speed.

When an abnormal sound is found in the machine, the vehicle should be stopped immediately for inspection.

The equipment should be maintained in the case of each operation.

Product Advantages

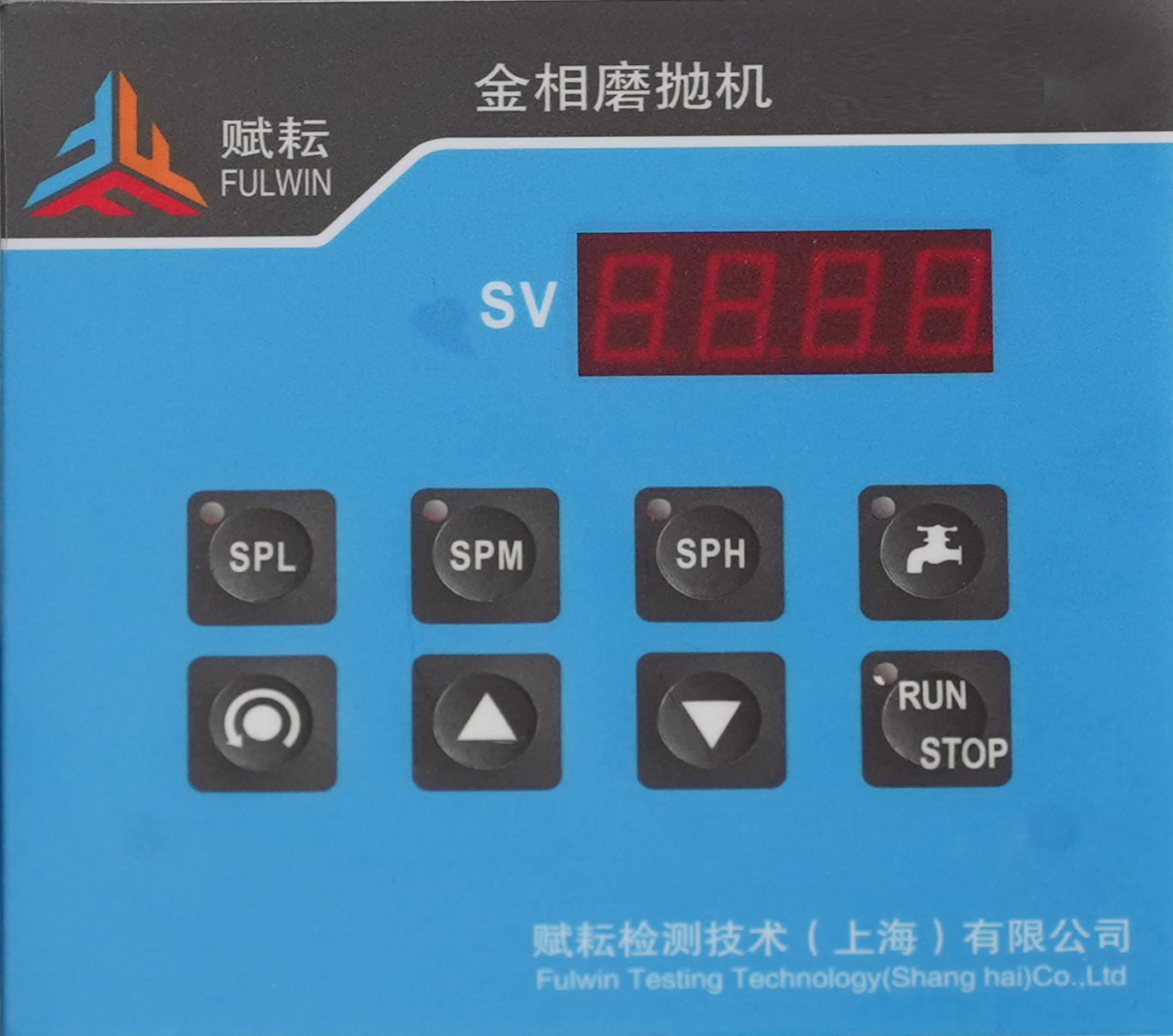

✪Operating panels are installed independently to make them more operational and maintenance-friendly.

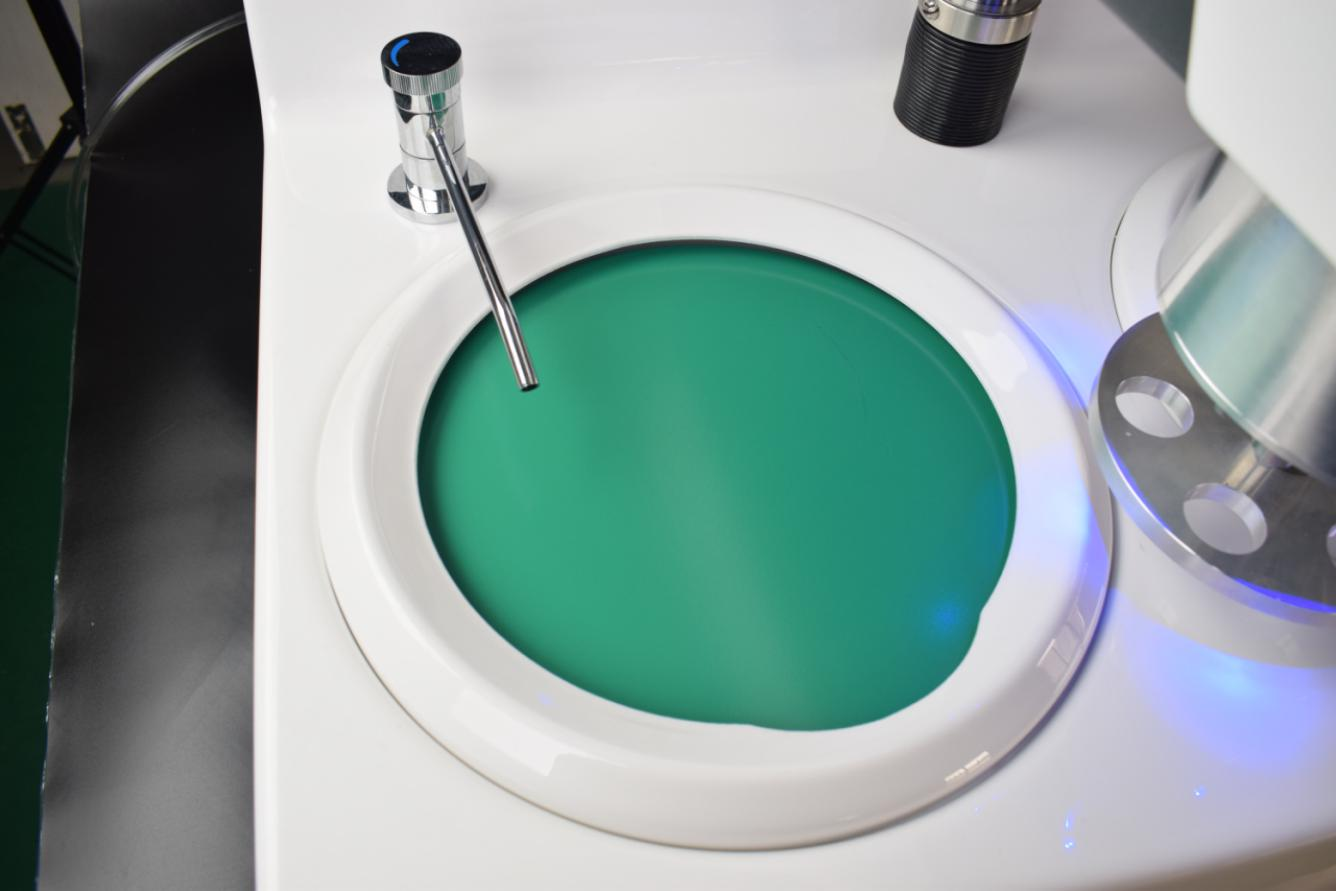

✪The conical grinding system, which is easier to replace, is easier to clean.

✪The useful life of the squirm-proof elliptical tank and the maintenance of the table is designed to protect the serviceable parts.

✪Large-calibre drainage pipes to address the problem of congestion.

✪It is not extremely fast, and it is easier to obtain a quick turn of demand.

✪Three sets of speeds, which can quickly locate the usual speeds.

Technical Specifications

Item

Specifications

Disk

Φ200mm/Φ230mm/Φ250mm

Turn speed

100-1000r/min

Three, fast.

S1=300r/min  S2=500r/min  S3 = 800r/min custom

Rotate Direction

Clockwise or Counterclockwise Altruable

Electric Power

750W

Power voltage

AC220V  50HZ (N+L1+PE)

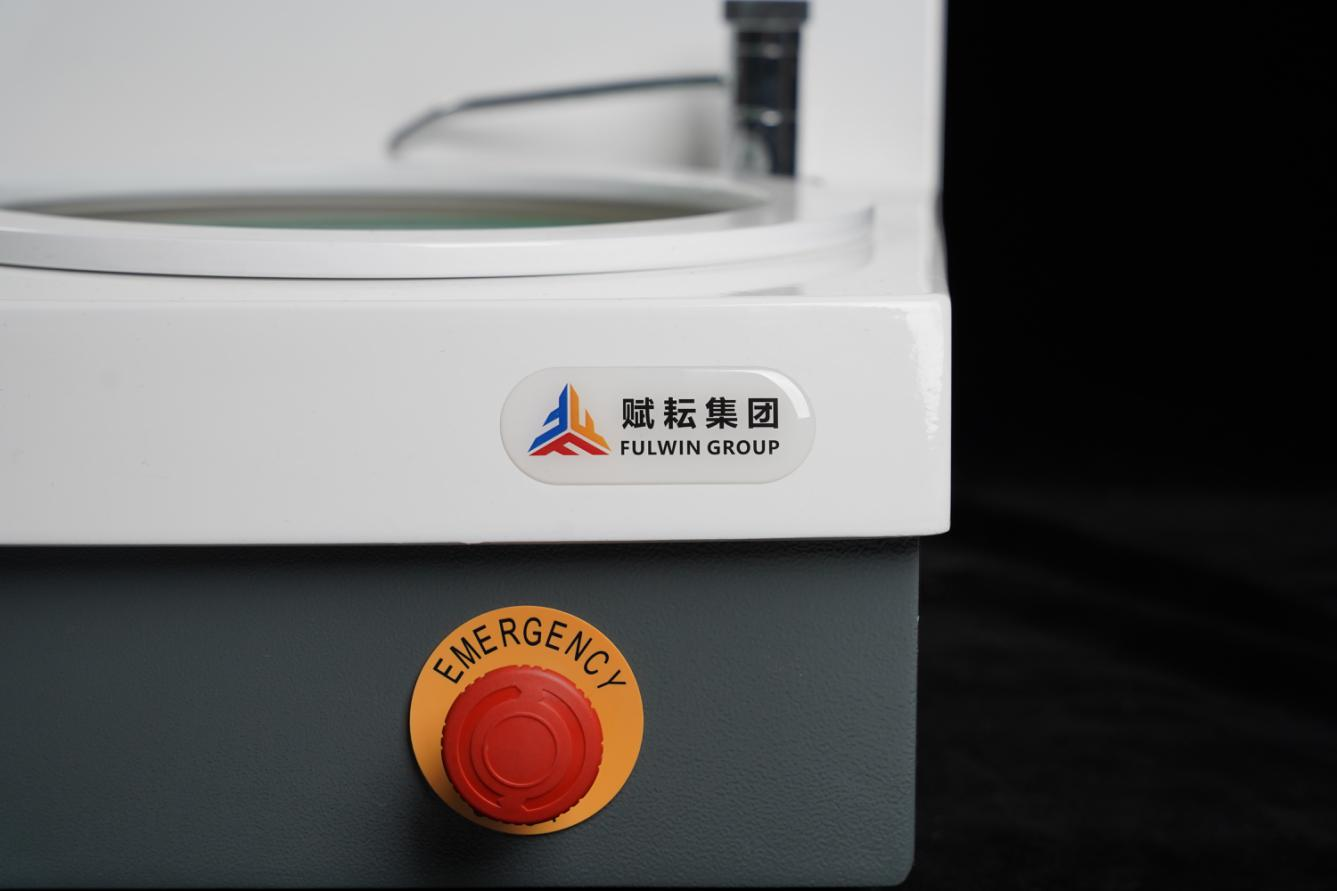

Emergency halt.

Quick-Stop button

Water pressure

1-10bar/0.1-1Mp

Into the hose.

Φ8mm long 2m

Drains.

Inner diameterΦ40

Temperature of the environment

5-40℃

Dimensions

650x475x450mm

Weight

42Kg
