Gold phase erosion.

New type of crystal-particle impregnator for austro-creature, metallic flow lines, dialysis displays for steel, meeting the GB/T 6394, ASTM E 112 standards.


Usage method

The test sample for the detection of the austropine crystals of iron-inline steel is no longer required to heat the material in accordance with the GB/T6394-20 Appendix A method for thermal treatment of the actual crystallity of the product.

2. The reagent occasionally has a smoothing of a suitable solution before the crystal is used into a cup;

3. The sample test surface is sharpened and polished and immersed up in the solution;

4. Heated to 60 ~ 90 °C, corrosive 1 ~ 10 minutes, and observed colour changes in the detection surface;

5. When the detection surface is darkened, the water is removed for washing;

6. The black and grey material on the surface of the detection surface is removed after the light discharge of 1-10S with water on the polished canvas;

7/ Microscope observation, if the crystal boundary displays indistinctness, to repeat the above steps until the crystalline is shown;

8 This product can be added directly when the evaporation of the impregnated agent is reduced.

Note: Save the light! The bottom of the bottle will be crystal smooth before it's used!


Product Advantages

(b) Alternative saturated acid reagents, free of bitter acids and free of explosive-prone chemicals;

(b) The non-requirement of secondary thermal treatment and direct ingestion will show the original austrocin crystallines of carbon steel, alloy steel, and increase the efficiency of detection;

Weak corrosive, low toxicity, safe use.

Tickets are available and transport is unregulated.

Easy to operate, fast.

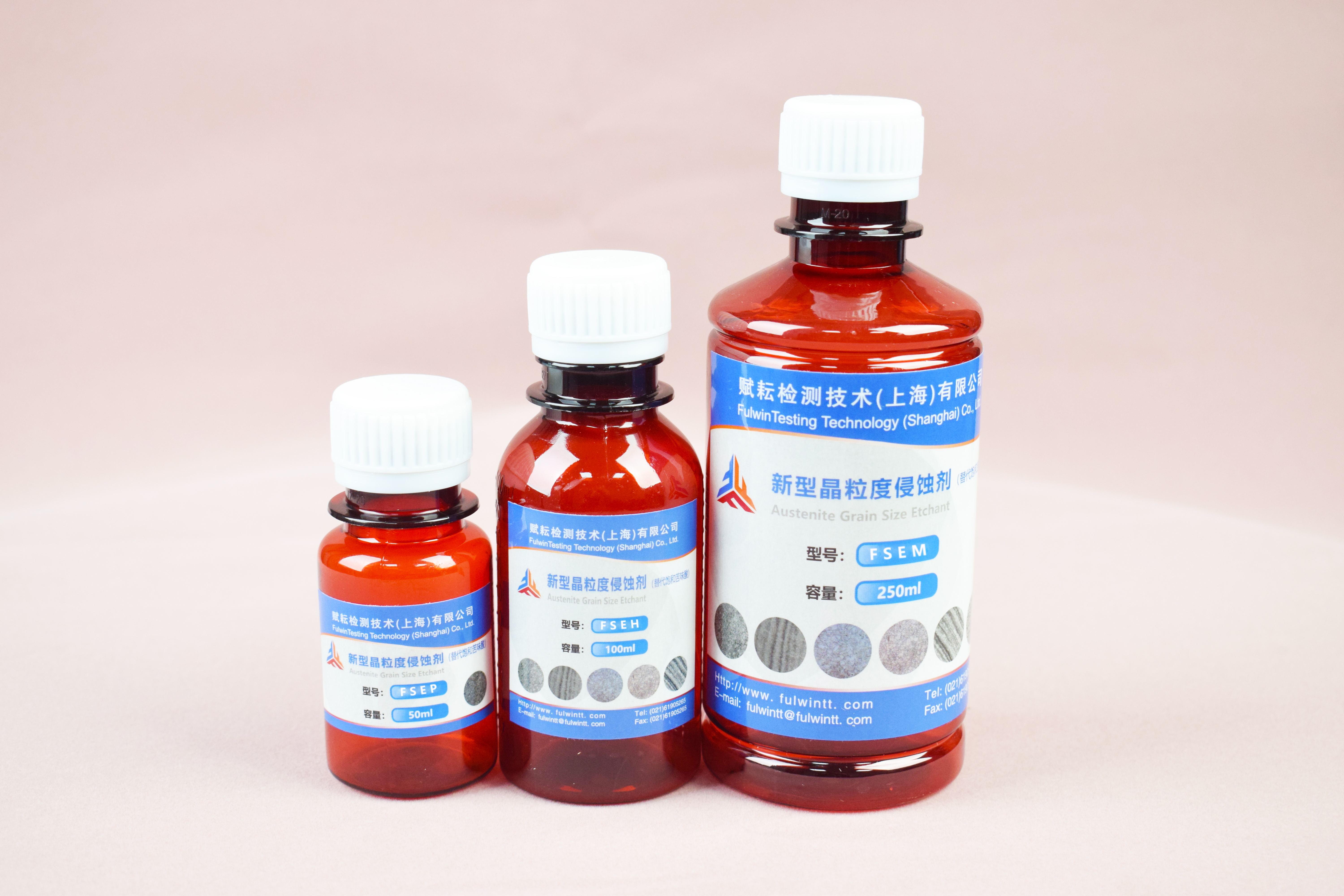

Technical Specifications

Model

Packaging

Corrosion material range

CS-1

500ml

Concentration: 2-8%. Fits for inter-crystal corrosives such as carbon steel, alloy steel, and axle steel cast iron.

FSE

50ml

Axis bearing steel: GCr15, GCr15K,
Carbon-d seepage steel: 20Cr, 16MnCr 5, 20MnTiB, 20CrMnTi,
18CrNiMo7-6 Austro-clinic pellets.

100ml

250ml

FSES

50ml

Spring steel: 65Mn, 55CrMn, 60Si2Mn, SPCC, ST37-2G, B340/590DP, QSTE500TM,

WNPH500C,WNPH480K,ZSTE340
Metal flow lines, dialysis of various carbon steels, alloy steels.

100ml

250ml

FSEP

50ml

Axis bearing steel: GCr15, GCr15K,
Carbon-d seepage steel: 20Cr, 16MnCr 5, 20MnTiB, 20CrMnTi,
18CrNiMo7-6
Carbon-modified steels of all types: 10B21, 35, 45, 55, 40Cr,
35CrMo、42CrMo、27CrNb7、33CrNb、35MnB、 4340
Modular steel: 1,231 (P20)

100ml

250ml

FSEH

50ml

Axis bearing steel: GCr15, GCr15K
High alloy axle bearing steel: 100 CrMnSi6-4, GCr15SiMn

100ml

250ml

FSEPS

50ml

Fine-crystal steel: 16CrMoNbV, 17Ni2MoVNb,
27CrNb、33CrNb、30CrMnSi;
Modular steel P20, 75Cr1; X70, 925A and other low-carbon horse-delk steel
The crystal grain size is also appropriate for the bearing steel.

100ml

250ml

FSEM

250ml

Mallion deposition Storified Storting Steel: Custom465,
630(17-4PH/0Cr17Ni4Cu4Nb)、15-5PH、
PH13-8Mo, 420B, 1cr13, 2cr13 etc.

FSEAL

250ml

Aluminium alloying anoderend, Aluminium alloying crystal particle size

Keller

500ml

The Keller reagent is for aluminium alloy welding.

Download

Download Materials:
