Gold Phase Conversion Disk (Accused Disk and Disk)

Anti-collide, diskettes for grinders, polishers, manual gold grinders, automatic grinders, etc.

Specifications in diameter: 203, 220, 230, 250, 300 mm

Package: Anti-clask 5pcs/pkg; Disk 1pcs/pkg


Usage method

1. Cleaning up of pre-heaters, polishers, manual gold-phase grinders, aluminum or iron plates on the surface of the automatic grinder, oils and foreign matter, etc.;

2. To bind disks to the user ' s present-use mill, polisher, manual gold grinder, aluminium or iron plate on the automatic grinder, using non-dry glue on the following table:

3. To bind the polished or sandpaper to the top surface of the viscos (sliding, coating of residual impregnable glue, contact with the disk on the other side of the non-sludgery, using non-dry glue from the surface of the surface of the sandpapers or sandpapers that are currently used by the user;

If the polished or sandpaper loses its useful value, the polished or sandpaper is removed from the viscous disk from the gap, and because the viscous disk is coated with residual tape, it is easily removed from the polished or sandpaper without residual glue;

5. If the polish or sandpaper is reusable, it needs to replace the granular or polished type, remove the anti-clattering disk (with a polish or sandpaper on top) from the magnetic disk, and replace it with other anti-clattering disks (with polish or sandpaper on top of it with other specifications);

6. In order to protect the coating on the anti-clause disk, the coating shall not be exposed to hard matter.



Product Advantages
✪The coatings are made of imported coatings, without residual glue, and the sandpaper or polished sheet with back tape is easily removed from the grinding pallet, and no longer bothers to remove the residual glue.

✪The base materials are metal materials of a certain thickness, processed, deformed, rustproof and can be used repeatedly.

✪The cost of the equipment is saved by a grinding machine with a grinding plate, which simply replaces sandpaper or polished sheeting, and all the grinding processes can be easily accomplished.

✪Savings in materials, paper or polished cloths exchanged with the anti-clause disk, which are unchanged and can be used on the grinding pallet until the sandpaper or polished sheet is fully consumed.

Technical Specifications

Product Name

Model

diameter size

A viscosity-resistant disk

ASDISC5

The surface is coated with special anti-skin coatings, which allow the taped sandpaper or polished cloth to be on this plate, which is easily replaced and leaves no residue.

203mm, 220mm,230mm,250mm,300mm

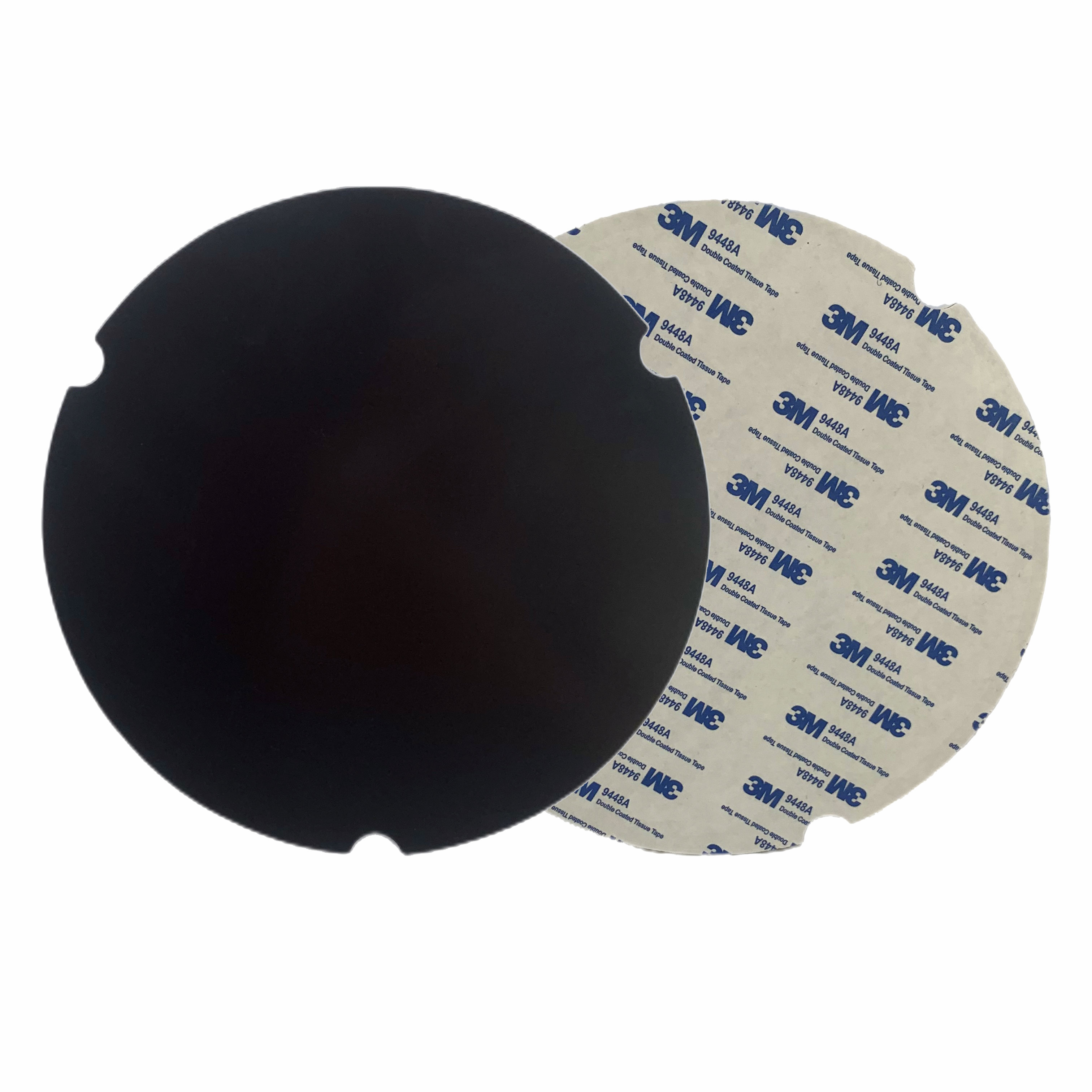

Disk

MGDICC1

Upper surface: magnetic, connected to the surface through magnetic and viscos: a polisher already available to users with non-dry glue

203mm, 220mm,230mm,250mm,300mm

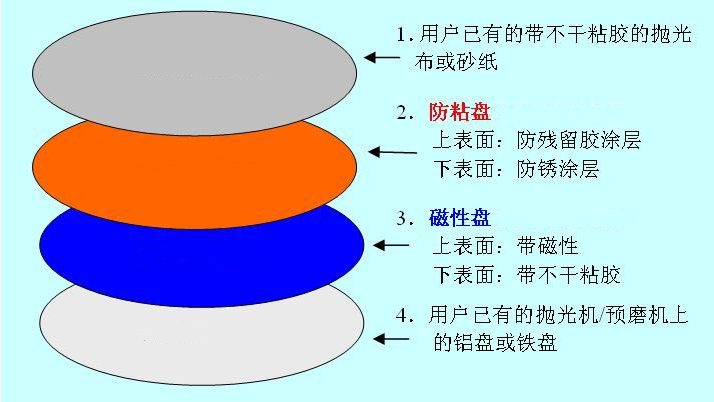

Gold-phased disk map:

Download

Download Materials:
