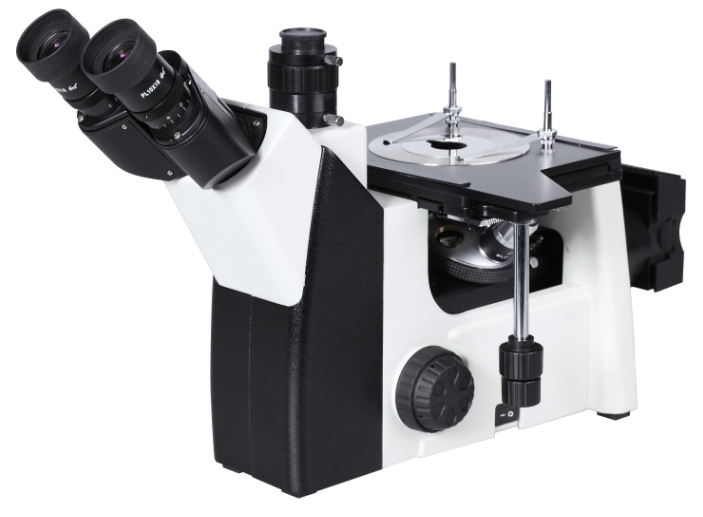

Inverted gold microscope FY-MMD-100

The combination structure of the various metals and alloy materials is identified and analysed, applied to the quality of the castings in factories or laboratories; the testing of raw materials or the analysis of the gold-shaped tissues after material processing; and the study of some surface phenomena such as surface spraying. It is the analysis of the gold phase of steel, non-ferrous metal materials, foundry, plating; the analysis of geology of the morphology; and the effective means of micro-research of compounds, ceramics, etc. in the industrial field, are essential instruments for the organizational structure of metalology and material research materials, which are also applied in the biological, medical and pedagogical fields.

The increasing number of research that does not satisfy conventional gold-synthesis and photo-grammetry, which input microimages into micro-processors, and which are processed by microprocessors at various stages of late processing of images, is synchronized with the new technologies in the micro-synthesis field in today ' s world.

Images are microscopes, which are connected to high-resolution CCD video systems, and are processed, edited, preserved and exported by computers (e.g., printing) or entered into multimedia systems and e-mails.

Further access to the image analysis computer operating system would allow for further research and analysis of the gold spectrograph or precision measurements of the image, as well as multifunctional image morphological analysis, statistics and output graphic reports

Product Advantages

✪Use of specialized gold phase mirrors and field mirrors, good imaging quality, high resolution and observation comfort.

✪Provides excellent image quality and solid mechanical structures.

✪The appropriate photographic attachments are selected to capture and preserve observation images and to analyse the gold-phase images with computer and specialized gold-phase analysis software.

✪The simple, complete and complete operation is widely applied in the fields of teaching scientific and scientific gold phase analysis, semiconductor silicon crystal detection, address mineral analysis, precision engineering measurements, etc.

Technical Specifications

Synchronising folder Claims	Rule Grill
Conclusion Structure	Triple chain, 45° tilt, bilateral ±5 radiance, pupil range: 54-75 mm, Fixed spectrometry, two eyes: three = 80%: 20%.
Zoom in Multiplication	50×～ 500×。
Objects Mirror	Specialized golden phase 5x,10X,20X,50X
Contents Mirror	High-eye Grand-Face-of-Face-Face-of-Face-Face-of-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-PL10X/18mm.
Metrics	The value of the grid is 0.01 mm/1 mm.
Platforms	Three-layer mechanical moving platform, 180 mm x 155 mm area, right hand low hand control, itinerary: 75 mm x 40 mm; Metal carrying tableboard, centre hole 12 mm in diameter.
Focusing Agency	Low-hand coarse co-orientation, 38 mm per shift; fine-refining 2um, loosely calibrated.
Lighting systems	A single 5W warm LED light (option 6V30W halogen lamps) with a constant light.
Optical system	Limited long-range correction system.
Photo-deficit devices	The optic lens and the spectroscope can be moved out of the light, and the spectroscope plugin can rotate at 360 degrees. (selection)
Electricity Source	220VAC（50Hz）
Gold Phase Analysis Software	ASYC same thing.
	3 million pixels.
	0.5X fit mirrors
	Micrometers (0.01 mm accuracy)

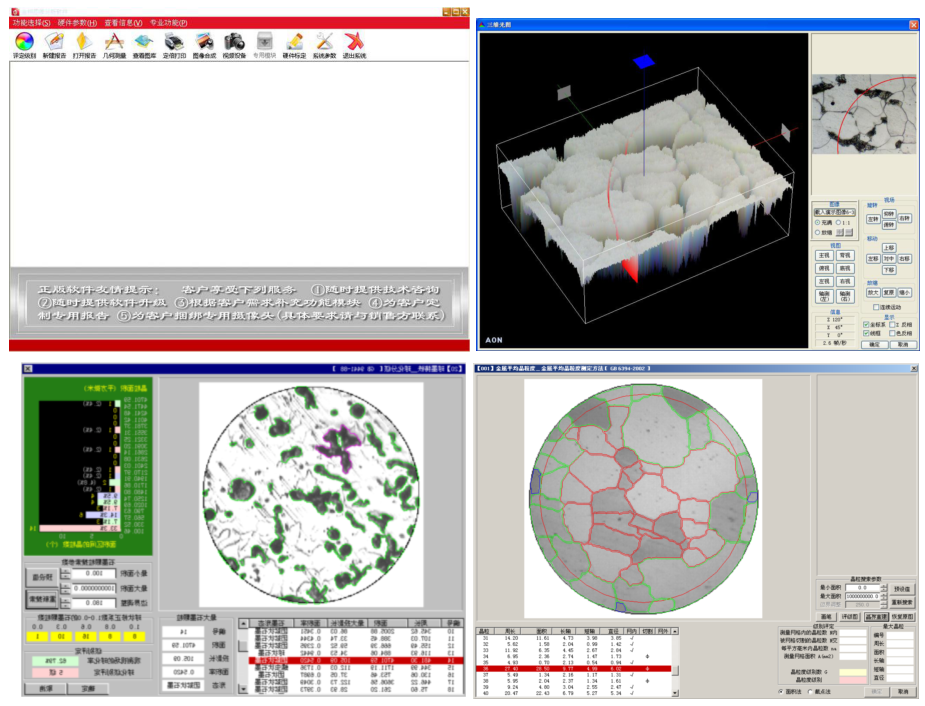

The gold phase analysis software, developed by material science professionals in my unit programme, has been updated to version 2020, with approximately 500 modules in the gold phase, covering most of the gold phase tests available. See the gold phase catalogue for more details.

The software integrates modern advanced image analysis techniques, and provides a perfect combination of gold-synthetic microscopes and smart analysis techniques, and systematic measurements, evaluation results are fast, correct, and conform to national standards (JB/YB/HB/QC/DL/DJ/ASM) and other relevant industry standards. The system is fully accessible and simple in Chinese, and easily accessible, with simple training or cross-use instructions.

Main functions:

• Image editing software: a dozen features such as image acquisition, image storage, etc.

• Image software: a dozen features such as image enhancement, image superimposement;

• Image measurement software: dozens of measurement functions, including perimeter, area, percentage content, etc.

• (a) Crystal particle measurement rating (crystal extraction, crystal-reconstruction, single-phase, two-phase, crystal-particle measurement, rating);

• (a) Non-metal impurity measurements, ratings (including sulphides, oxides, silicates, etc.);

• (b) beads, measurements of iron content, ratings; measurements of iron graphite graphite plaster purification rate in ball ink;

• (b) Decarbonation, carbon seepage measurements, surface coating thickness measurements;

• Welding Melting Depth Measurement

• (a) Phase-area measurements in iron, austyl stainless steel;

• (b) A gold spectrometry containing nearly 470 commonly used metal materials for matching, adapted to the requirements of most unit gold phase analysis and testing;

• In view of the increasing number of new and imported material, materials not yet entered in the software and the evaluation criteria can be customized and entered.

System composition:

1. Software program (CD-ROM); 2. Encrypted dogs: USB type;

2. 3 million high-level digital cameras; 4.0.5X fit mirror interface;

5. Image-specific microscale, gratuity: 0.01 mm.

Hardware operating environment:

WINDOWS 7; 32/64-bit system. office 2007/2010.

Basic computer configuration requirements:

1. CPU: Intel Core 2 2.8GHz or higher; Memory: 2GB or more;

3 USB interface: USB 2.0 or USB3.0 interface; 4. Visible: 19” or higher;

5、CD-ROM

V. List of criteria

Serial number	Synchronising folder Claims	Number Volume	Ready Notes
1	Host	1
2	Eyescope viewer	1
3	10X Field Eyescope	2
4	5X mirrors.	1	Long focal range horizon colouring mirrors
5	10X mirrors.	1	Long focal range horizon colouring mirrors
6	20X mirrors.	1	Long focal range horizon colouring mirrors
7	50 X mirrors.	1	Long focal range horizon colouring mirrors
8	Flexbox	1
9	Load tablet	1
10	LED lightbox	1
11	0.5X fit mirrors	1
12	The gold-phase analysis software system	1
13	Cameras	1
14	0.01/1 mm ruler	1
15	Powerline	1
