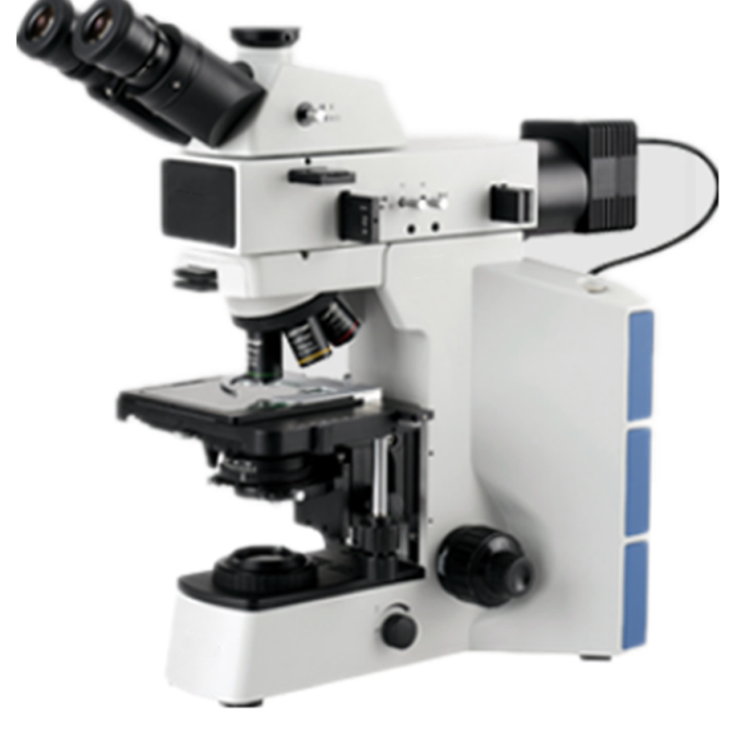

Positive gold microscope FY-MMD-400
The FY-MMD-400 consolidates the many technological advantages of the sales machine and optimizes the overall performance to market demand, providing high-value, gold-based analysis and industrial testing solutions for clients with excellent imaging performance and comfortable operating experience.
✪Watchbox
The viewer, using a sleeping-bed comfort angle (30°), can ease the tension and fatigue of the user during a long working period and ensure the best observation.
✪Droplighter
Using a Cora lighting system with visual field photo-rays, aperture-photo-photo-slash and anortic lighting; pre-set optics, spectroscopes and filtration slots.
A single 5W LED heat white light (3,000-3300K) reduces the visual fatigue of observers to a greater extent than the same LED lighting.
The field of view and aperture impact is a puller, which is centrally reductible and can adjust the size of the lighting range to avoid the impact of impurity on the image.
✪Tool storage
M4 The six-angle wrench in the handle is stored at random, making full use of the available space of the body and making your operation more easy by means of hand-to-hand tools.
Synchronising folder Claims | Rule Grill |
Conclusion Structure
| 30° tilt, infinity chain double-eye observation, pupil range adjustment: 54 mm ~ 75 mm, unilateral vision adjustment: ± 5 radiance
|
Zoom in Multiplication | 50×～ 500×。
|
Objects Mirror | The square is an infinite long-range work-spaced gold lens of 5x, 10x, 20x, 50X. |
Contents Mirror | High-eye Grand-Face-of-Face-Face-of-Face-Face-of-Face-Face-Face-Face-of-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-PL10X/22mm. |
Metrics | The value of the grid is 0.01 mm/1 mm.
|
Platforms | Double-layer mechanical moving platform, low-hand X, Y and axle-dip; platform area 175 x 145 mm, moving range: 76 mm X 42 mm reflexable metal-mounted tableboard, reverse and double-grade glass-mounted tableboard |
Focusing Agency | Transverse-and-dual-purpose racks, low-hand coarse coording, 28mm rough-trip, fine-tune 0.002mm. With a smoother and random upper limit to prevent a slide. |
Lighting systems | Self-adapted wide voltage 100V-240V AC50/60Hz, reflect light room, single large power 5WLED, warm colour, Cora light, with field of sight and aperture, central retrebleable, with tilt lighting |
Optical system | Infinite far-colour correction optical system. |
Electricity Source | 220VAC（50Hz） |
Gold Phase Analysis Software | ASYC same thing. |
3 million pixels. | |
0.5X fit mirrors | |
Micrometers (0.01 mm accuracy) |

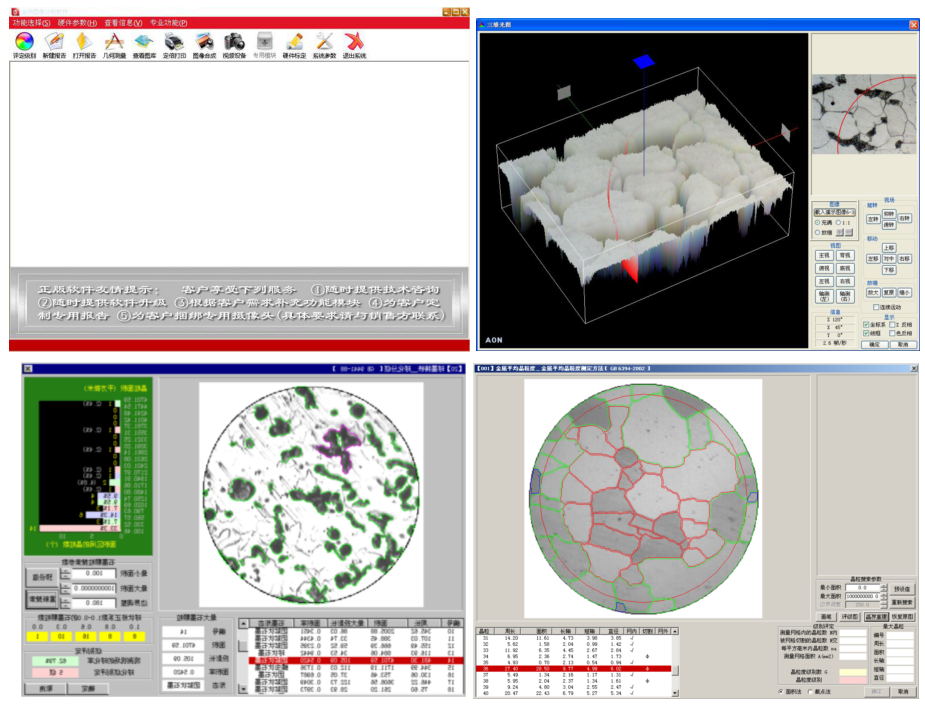

The gold phase analysis software, developed by material science professionals in my unit software programme, has been updated to version 2018, with approximately 500 modules in the gold phase, covering most of the gold phase tests available. See the gold phase catalogue for more details.
The software integrates modern advanced image analysis techniques, and provides a perfect combination of gold-synthetic microscopes and smart analysis techniques, and systematic measurements, evaluation results are fast, correct, and conform to national standards (JB/YB/HB/QC/DL/DJ/ASM) and other relevant industry standards. The system is fully accessible and simple in Chinese, and easily accessible, with simple training or cross-use instructions.
Main functions:

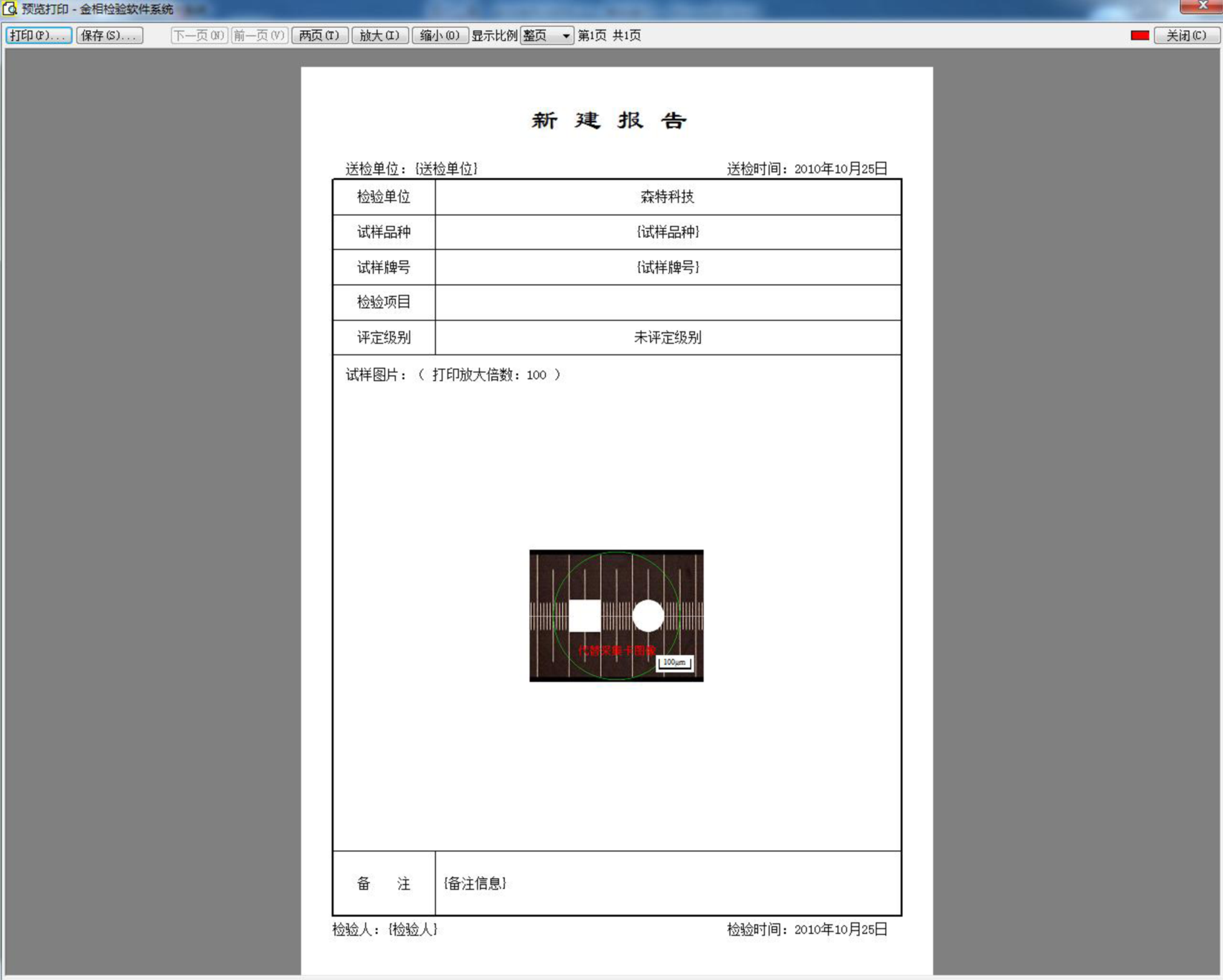

1. Image editing software: a dozen features such as image acquisition, image storage, etc.
2. Image software: a dozen features such as image enhancement, image superimposement;
3. Image measurement software: dozens of measurement functions, including perimeter, area, percentage content, etc.
4. (a) Crystal particle measurement rating (crystal extraction, crystal-reconstruction, single-phase, two-phase, crystal-particle measurement, rating);
5. (a) Non-metal impurity measurements, ratings (including sulphides, oxides, silicates, etc.);
6. (b) beads, measurements of iron content, ratings; measurements of iron graphite graphite plaster purification rate in ball ink;
7. (b) Decarbonation, carbon seepage measurements, surface coating thickness measurements;
8. Welding Melting Depth Measurement
9. (a) Phase-area measurements in iron, austyl stainless steel;
10. Composed of a gold spectrometry of nearly 470 commonly used metal materials compared to most units of gold analysis and checking (a) Requirements for testing;
11. In view of the increasing number of new and imported material, materials not yet entered in the software and the evaluation criteria can be customized and entered.
System composition:
1. Software program (CD-ROM); 2. Encrypted dogs: USB type;
2. 3 million high-level digital cameras; 4.0.5X fit mirror interface;
5. Image-specific microscale, gratuity: 0.01 mm.
Hardware operating environment:
WINDOWS 7; 32/64-bit system. office 2007/2010.
Basic computer configuration requirements:
1. CPU: Intel Core 2 2.8GHz or higher; Memory: 2GB or more;
3 USB interface: USB 2.0 or USB3.0 interface; 4. Visible: 19” or higher;
5、CD-ROM
V. List of criteria
Serial number | Synchronising folder Claims | Number Volume | Ready Notes |
1 | Host | 1 | |
2 | Eyescope viewer | 1 | |
3 | 10X Field Eyescope | 2 | |
4 | 5X mirrors. | 1 | |
5 | 10X mirrors. | 1 | |
6 | 20X mirrors. | 1 | |
7 | 50 X mirrors. | 1 | |
8 | Flexbox | 1 | |
9 | Load tablet | 1 | |
10 | LED lightbox | 1 | |
11 | 0.5X fit mirrors | 1 | |
12 | The gold-phase analysis software system | 1 | |
13 | Cameras | 1 | |
14 | 0.01/1 mm ruler | 1 | |
15 | Powerline | 1 |
