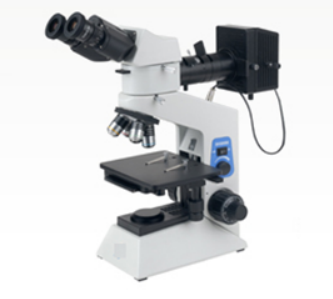

Introduction to the Golden Photo microscope FY-MMD-200
The FY-MMD-200 series is used in teaching and learning, and is routinely configured as a high-eye-wide field-of-view (BOO) field-scope PL10X/18mm, with other multiples, field-of-views, and additional calibrations, micrometers and visions, depending on the needs.
✪Tight, innovative structural design
The four-square rectangular bottom, two-formed, split mirror arms and mirrors, with no shaking of face when seen many times, ensures that a stable, high-quality micro-image is available.
✪Powerful Extension
In addition to the conventional gold phase, it can be extended to microscopes of various types, such as fluorescent, digital, gold-looking, photo-light, and can be observed in the visible, dark field, fluorescent, simple light, and spectroscopy.
Synchronising folder Claims | Rule Grill |
Conclusion Structure | 30° tilt, chain-based 3-watch head, 360° rotation |
Zoom in Multiplication | 50×～ 500×。
|
Objects Mirror | Infinite horizons, five X, 10 X, 20 X, 50 X |
Contents Mirror | High-eye Grand-Face-of-Face-Face-of-Face-Face-of-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-Face-PL10X/18mm. |
Metrics | The value of the grid is 0.01 mm/1 mm.
|
Platforms | 140 mm x 132 mm double-layer composite machine mobile platform, moving range: 76 mm x 50 mm, precision 0.1 mm |
Focusing Agency | Low-hand coarse modulates with a corrosive modulation to the axle-modulation unit. Crude 28mm, finely calibrated 0.002mm, with a pre-slide laxity and a pre-cut to prevent the breaking of slices. Optical lenses can be used to decorate the luminous stairwell. |
Lighting systems | The integrated power supply of the switch is continuously designed to adapt to 100V-240V wide voltage, making light bulbs less vulnerable to damage, pre-positioning centre 6V20W halogen lamps, fixed cola lighting |
Optical system | Infinite far-colour correction optical system. |
Electricity Source | 220VAC（50Hz） |
Gold Phase Analysis Software | ARAS JX2020 version |
3 million pixels. | |
0.5X fit mirrors | |
Micrometers (0.01 mm accuracy) |
The gold phase analysis software, developed by material science professionals in my unit programme, has been updated to version 2020, with approximately 500 modules in the gold phase, covering most of the gold phase tests available. See the gold phase catalogue for more details.
The software integrates modern advanced image analysis techniques, and provides a perfect combination of gold-synthetic microscopes and smart analysis techniques, and systematic measurements, evaluation results are fast, correct, and conform to national standards (JB/YB/HB/QC/DL/DJ/ASM) and other relevant industry standards. The system is fully accessible and simple in Chinese, and easily accessible, with simple training or cross-use instructions.
Main functions:
• Image editing software: a dozen features such as image acquisition, image storage, etc.
• Image software: a dozen features such as image enhancement, image superimposement;
• Image measurement software: dozens of measurement functions, including perimeter, area, percentage content, etc.
• (a) Crystal particle measurement rating (crystal extraction, crystal-reconstruction, single-phase, two-phase, crystal-particle measurement, rating);
• (a) Non-metal impurity measurements, ratings (including sulphides, oxides, silicates, etc.);
• (b) beads, measurements of iron content, ratings; measurements of iron graphite graphite plaster purification rate in ball ink;
• (b) Decarbonation, carbon seepage measurements, surface coating thickness measurements;
• Welding Melting Depth Measurement
• (a) Phase-area measurements in iron, austyl stainless steel;
• (b) A gold spectrometry containing nearly 470 commonly used metal materials for matching, adapted to the requirements of most unit gold phase analysis and testing;
• In view of the increasing number of new and imported material, materials not yet entered in the software and the evaluation criteria can be customized and entered.
System composition:
1. Software program (CD-ROM); 2. Encrypted dogs: USB type;
2. 3 million high-level digital cameras; 4.0.5X fit mirror interface;
5. Image-specific microscale, gratuity: 0.01 mm.
Hardware operating environment:
WINDOWS 7; 32/64-bit system. office 2007/2010.
Basic computer configuration requirements:
1. CPU: Intel Core 2 2.8GHz or higher; Memory: 2GB or more;
3 USB interface: USB 2.0 or USB3.0 interface; 4. Visible: 19” or higher;
5、CD-ROM
V. List of criteria
Serial number | Synchronising folder Claims | Number Volume | Ready Notes |
1 | Host | 1 | |
2 | Eyescope viewer | 1 | |
3 | 10X Field Eyescope | 2 | |
4 | 5X mirrors. | 1 | Long focal range horizon colouring mirrors |
5 | 10X mirrors. | 1 | Long focal range horizon colouring mirrors |
6 | 20X mirrors. | 1 | Long focal range horizon colouring mirrors |
7 | 50 X mirrors. | 1 | Long focal range horizon colouring mirrors |
8 | Flexbox | 1 | |
9 | Load tablet | 1 | |
10 | LED lightbox | 1 | |
11 | 0.5X fit mirrors | 1 | |
12 | The gold-phase analysis software system | 1 | |
13 | Cameras | 1 | |
14 | 0.01/1 mm ruler | 1 | |
15 | Powerline | 1 |
