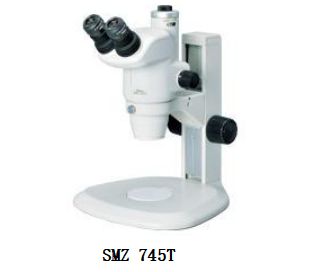

Nicoll Melted Deep Microscope - FY-TSMZ745T

FY-TSMZ745T Visual focus microscopes, a new front-runner of the same level, using 7.5-multiple-focused institutions and 115-mm work distance, synchronized triple-scopes that support video observation and image shooting, with the highest 7.5-multiple-focus units of the same level, with a range of 0.67-5X for wide-scale observation.

The high-multiplication/high-multiple-focal structure is accompanied by a long working distance of 115 mm, and therefore a greater range of use. One-key operations allow for real-time video observation and image-taking.

Product Advantages

✪Air-tight

A combination of good sealing can prevent the formation of dust, soot, water drops, etc.

✪Anti-mold

Even in a hot, wet environment, it is a unique rustproof structure of Nicon.

✪Anti-Electrostaｔic（ESD）

Microscopes have a coating of rapid electrostatic power and leakproof electrical construction.

✪Focus depth table at multiple rates (in the object side focus depth using C-W10X lenses)

Technical Specifications

辅助物镜

变焦倍率

	焦点深度（mm）
无	0.8X		1.38
	3X		0.152
	5X		0.097
0.5X	0.8X		5.519
	3 X		0.608
	5X		0.388
0.7X	0.8X		2.816
	3X		0.31
	5X		0.198
1.5X	0.8X		0.613
	3X		0.068
	5X		0.043
2X		0.8X		0.345
		3X		0.038
		5X		0.024

焦点深度（mm）的计算方法（基准波长为550nm时）

Download

Download Materials：
