TECHNOVIT 4006

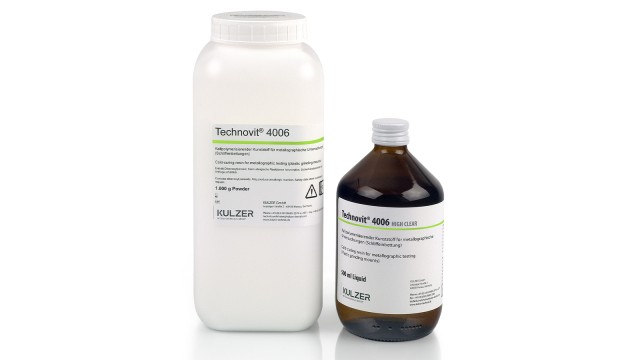

Technovit 4006

Crystal-like transparency, for sensitive samples.Fast solidification of two groups of cold-sinked resin (powder)/(Line systems)，Not long time for solidification (9to13Minutes) allows for self-consisting even at relatively low temperatures. This means that even fine materials can be easily and properly packed.

Highly transparent resins can be sequestered in lower temperatures. Thus, the advantage in preparing sensitive materials is clear!

Technovit4006SE

It's for embedding very thin layers. ，4006SE almost contains Technovit 4006.All the features. Besides,

Technovit 4006 SEIt applies to very thin layers, and can be applied in a short time. Embedded small samples with low-use transparency.

Product Advantages

✪Good grinding and polishing.

✪Not usedTechnomatPressure pan.And it can lower the bubbles.Form

✪It's solidified in the thin layer.

Technical Specifications

Technical specifications

	Technovit 4006	Technovit 4006SE
Colours	High Transparency	Transparent
Purpose	Use pressure pots without bubbles	No bubbles.
Group	Powder/ Liquid	Powder/ Liquid
Mixed ratio[Weights]	5:3	5:3
Smash Time [minutes]	4	4
Yes.22°C solidification time [minutes]	9-13	11-15
Peak temperature[℃]	99	99
Sphere Hardness[/mm²]	169	137
Stink hardness[MPa]	82	87
Heat-resisting temperature[℃]	125	105
Solubility	Only bulging	Only bulging
Density[g/cm]	1.14	1.14
Impact intensity [KJ/m²]	5.8	4.2
Anti-curve strength [N/mm²]	105	120
Pressure [N/mm²]	120-140	120-150
Water intake[% by vol]	0.38	0.3
Linear contraction rate[%]	2.25 / 2.08 / 1.80	1.8
Volume contraction rate[%]	1:1 = 6.75 1.8:1 = 5.8 2.3:1 = 5.4	5.4
Refraction Rate Mono/Pomers	M = 1.425 P = 1.436	M = 1.439 P = 1.441
Storage temperature[℃]	25	25
Valid period[year]	3	3
Lin. TCE	108 x 10-7	108 x 10-7
Eflexing Mode[MPa] EN ISO 604: 2003	2000–3000	2400–2500

Packaging specifications

Technovit 4006 Pink

1000g

2x1000g

10000g

Technovit 4006 Liquid

500ml

1000ml

5000ml

Technovit 4006SE Pink

1000g

10000g

Technovit 4006SE Liquid

1000ml

5000ml
