Technovit 4000
Product Introduction
Technovit 4000
Three sets of cold-stained resin, powder and1#Li 2#Liquity Technovit 4000 is a fast-fixing, cold-slayed super-soft inorganic filling based on modified polyesters and powders.
(c) Achieving a high margin protection and a sharp edge.

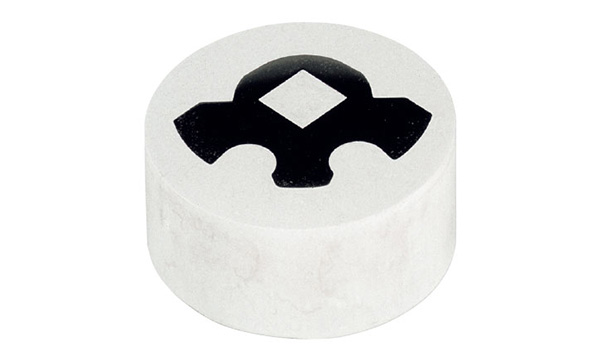

It's also very well-equipped to be embedded with porous surfaces, small gaps, and blind holes. or a bottom cut sample; a vacuum can be embedded.
Performance and applications
✪Very low aggregate contraction rates and excellent edges.
✪Good mobility.
✪It's very good to be on the edge of the metal surface. Protection of the margin and pertourity
✪Excellent grinding and polishing.
✪The time of solidification is about16-20 minutes
✪Mixed ratio to1:2:2 (volume) or 1:2 (weight)(2# Lactation: 1# Lactation: Powder)
Technical specifications
| Technovit 4000 | |
Colours | Milk. |
Purpose | Low gap embedded |
Group | Powder/ Liquid I + II |
Mixed ratio[Weights] | 2:2:1 |
Smash Time [minutes] | 4 |
Yes.22°C solidification time [minutes] | 16-20 |
Peak temperature[℃] | 122 |
Sphere Hardness[/mm²] | 135 |
Stink hardness[MPa] | 80 |
Heat-resisting temperature[℃] | 130 |
Solubility | Insoluble |
Density[g/cm] | 1.565 |
Impact intensity [KJ/m²] | 1.5 |
Anti-curve strength [N/mm²] | 50 |
Pressure [N/mm²] | 280 |
Linear contraction rate[%] | 2.7 |
Volume contraction rate[%] | 6.2 |
Storage temperature[℃] | 25 |
Valid period[year] | 3 |
Lin. TCE | 37–62 x 10 -6 |
Eflexing Mode[MPa] EN ISO 604: 2003 | 2000–2200 |
Packaging specifications

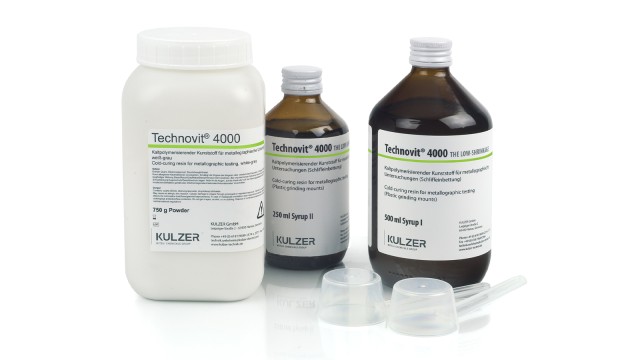

Technovit 4000 Package 1 （750g powder/500ml liquid I/ 250ml liquid II) | |
Technovit 4000 package 2 （1500g powder/ 1000ml liquid I/500ml liquid II） | |
Technovit 4000 powder Technovit 4000 powder Technovit 4000 LID Technovit 4000 LID Technovit 4000 liquid II Technovit 4000 liquid II | 1500g 7500g 1000ml 5000ml 500ml 2500ml |
