Technovit 5000
Product Introduction
Technovit 5000
This double-assembled copper-based cold-silver resin is conductive and ideal for scanning mirror testing.Technovit 5000 is also a good basis for electrolytic metal-spectropic samples. Technovit 5000 can move for about one minute (by a light knock) and harden within seven minutes.
Performance and applications
✪It's electrical.
✪ELECTRONIC PILLOWING
Technical specifications
| Technovit 5000 | |
Colours | Copper brown. |
Purpose | Embedded..conductor. |
Mixed ratio[Weights] | 20g powder: 13 ml of liquid |
Smash Time [minutes] | 1 |
Yes.22°C solidification time [minutes] | 7-12 |
Peak temperature[℃] | 125 |
Sphere Hardness[/mm²] | 160 |
Heat-resisting temperature[℃] | 100 |
Solubility | Only bulging |
Density[g/cm] | 2.85 |
Impact intensity [KJ/m²] | 5.0 |
Anti-curve strength [N/mm²] | 85 |
Pressure [N/mm²] | 280 |
Water intake[% by vol] | 0.47 |
Linear contraction rate[%] | 2.3 |
Volume contraction rate[%] | 7.1 |
Refraction Rate Mono/Pomers | M = 1.420 P = 1.4434 |
Storage temperature[℃] | 25 |
Valid period[year] | 3 |
Packaging specifications

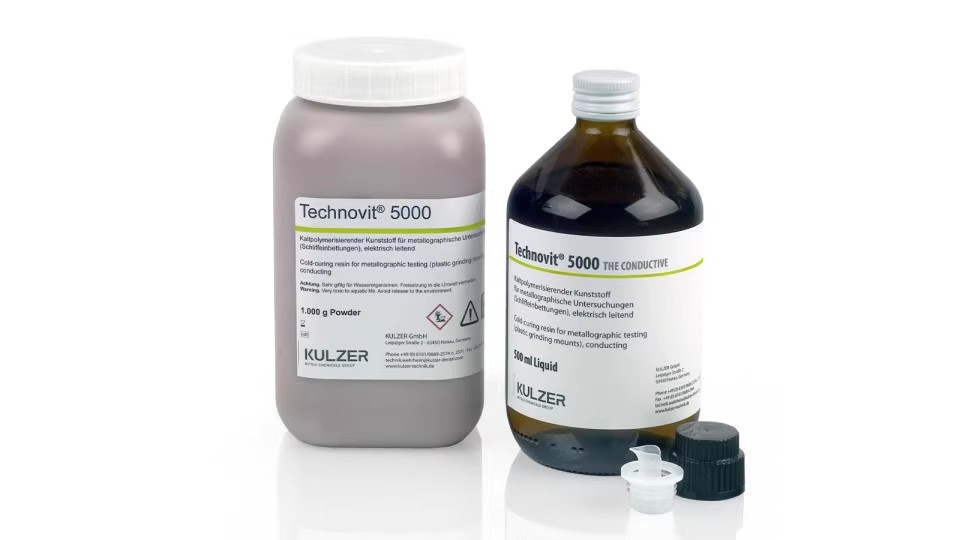

Technovit 5000 Pink Technovit 5000 Liquid | 1000g 500ml |
