Technovit 3040
Product Introduction

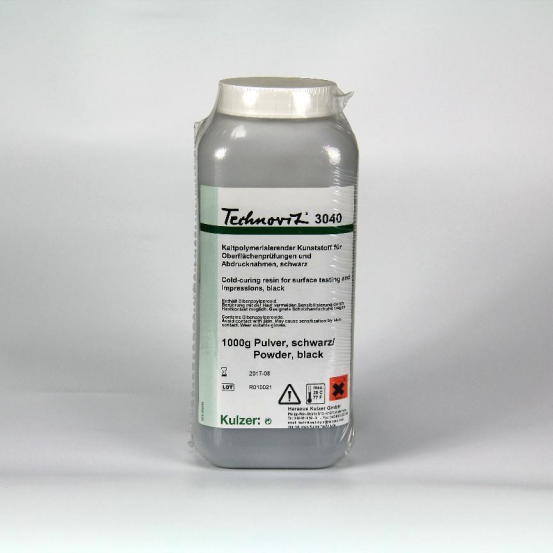

Technovit 3040
The flexibility of the hybrid ensures that it is hard to reach, vertically and high When you are empty, you can both embolden the mold and leave a mark.

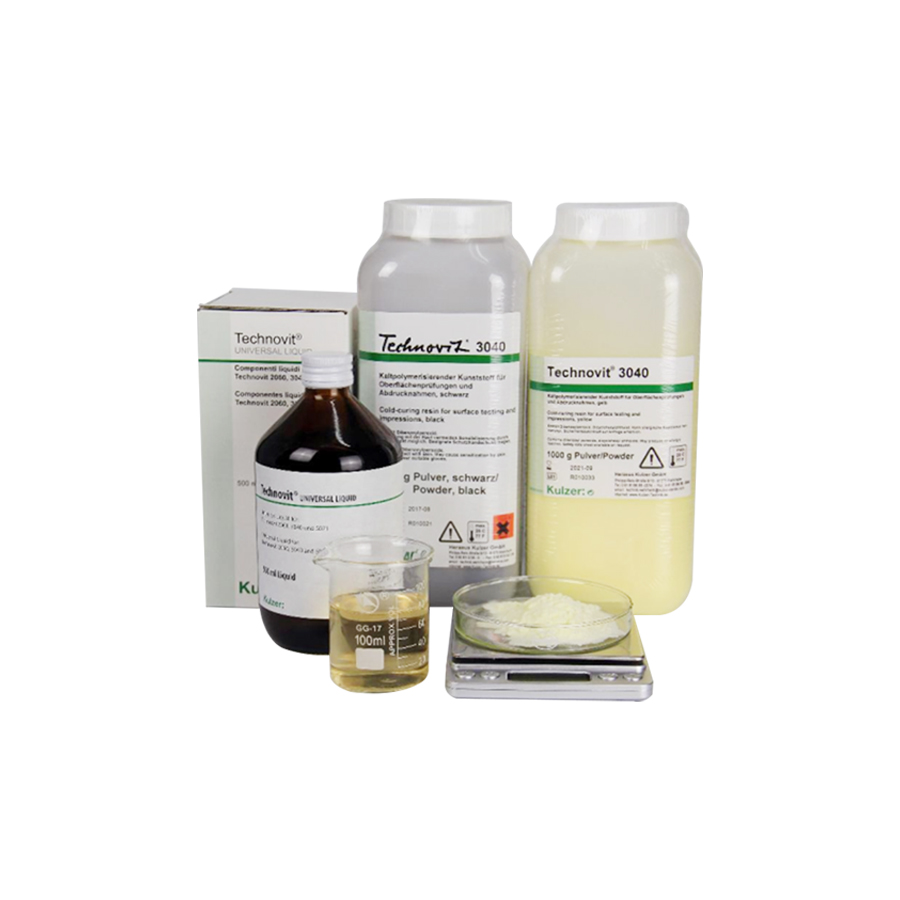

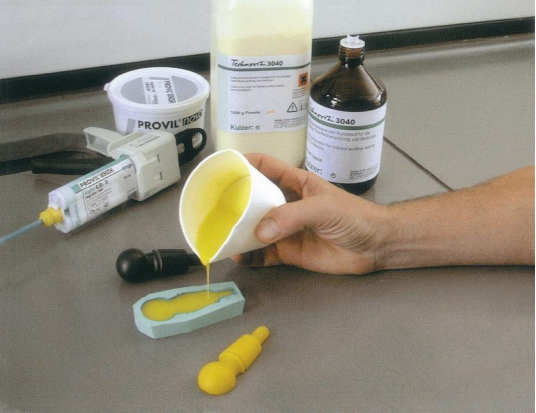

The two-assembled resin consists of powder and liquid components. by1:1 to 3:1 ratio mix (powder/liquid).
The standard mix ratio of 2:1 can mix about 2 minutes and wait about 30 seconds.
Performance and applications
✪Print precision1μm
✪It's stable and easy to break.
✪Variable Mixing Ratio Potential
✪Good stability.
✪The evaluation of the mould can be done using probes or non-contact measurements
From practice
✪To ensure the accuracy of the size, keep the print as small as possible. (For Large size, multi-layered)
✪Hand handles are easy to recover from the real face of raw materials.
✪The minimum thickness of the mark should read5 mm to avoid minor deformation during dismantling.
✪Replicates for unseparable samples

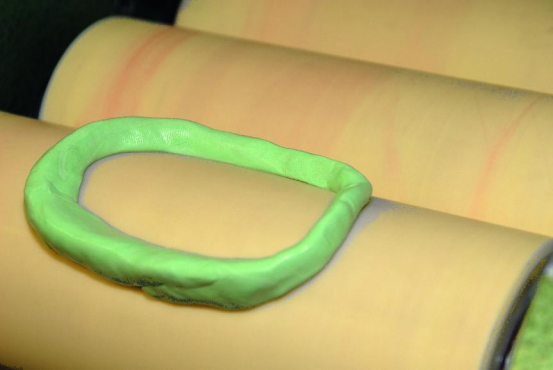

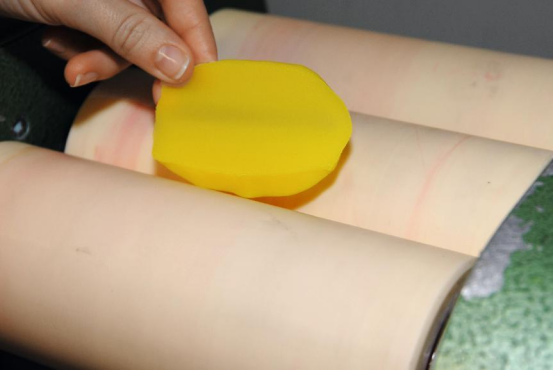

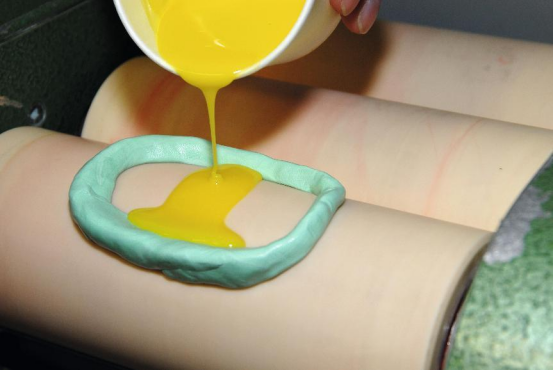

✪To take a model in vertical direction or on top of the head, we suggest thatTechnovit 3040 fell on the PE film and then presses it on the surface of the cast.
Technical specifications
| Technovit 3040 | |
Colours | Yellow or Black |
Purpose | Simulation surface check |
Group | Powder/ Liquid |
Mixed ratio[Weights] | 2:1 |
Smash Time [minutes] | 2 |
Yes.22°C solidification time [minutes] | 9-12 |
Peak temperature[℃] | 110 |
Sphere Hardness[/mm²] | 110Mpa |
Stink hardness[MPa] | -- |
Heat-resisting temperature[℃] | 130 |
Solubility | Only bulging |
Density[g/cm] | 1.18 |
Impact intensity [KJ/m²] | 7.1 |
Anti-curve strength [N/mm²] | 96 |
Pressure [N/mm²] | 110 |
Water intake[% by vol] | 0.43 |
Linear contraction rate[%] | 1.9 |
Volume contraction rate[%] | 5.7 |
Refraction Rate Mono/Pomers | M = 1.419 -- |
Storage temperature[℃] | 25 |
Valid period[year] | 3 |
Lin. TCE | 108 x 10-6 |
Eflexing Mode[MPa] EN ISO 604: 2003 | 2000–2300 |

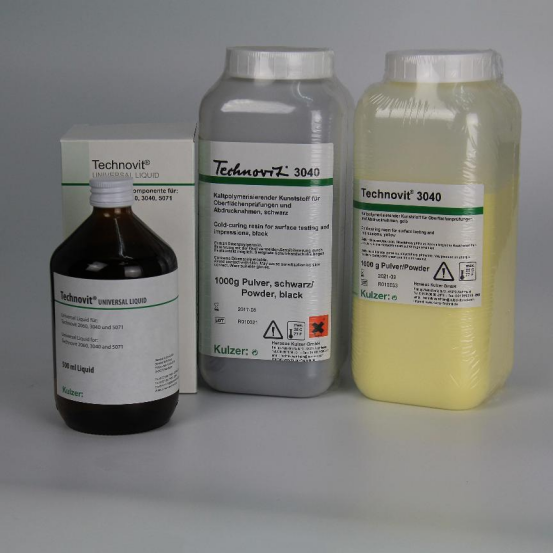

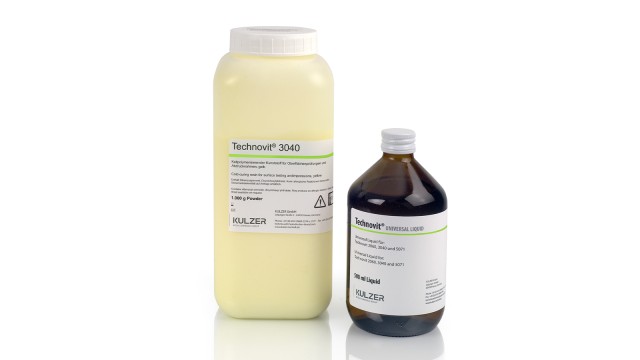

Packaging specifications

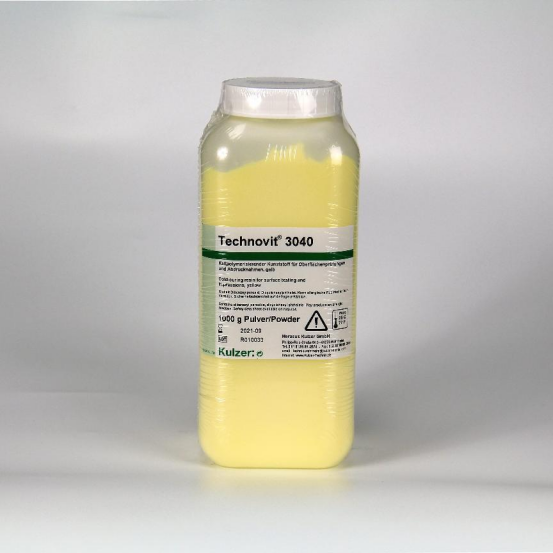

Technovit 3040 Yellow powder. Technovit 3040 Yellow powder. Technovit 3040 Yellow powder. | 1000g 2x1000g 10000g |
Technovit 3040 Black powder. Technovit 3040 Black powder. Technovit 3040 Black powder. | 1000g 2x1000g 10000g |
Technovi General liquids Technovi General liquids | 500ml 5000ml |
