Technovit 4004
Product Introduction
Technovit 4004
Transparent powdered dimesters are embedded in resins, with a matrix of methylacrylate.Technovit The powder/liquid system has been used to optimize rapid daily testing, including visual observations.Transparent resin does not contain DMPT, without phenylenedioxyate
Performance and Applications
✪Double powder liquid combination
✪Quick fixation time is only9-12 minutes
✪Flexible mix-up, easy to use
Technical specifications
| Technovit 4004 | |
Colours | Transparent |
Purpose | Pressure pans are non-foamed. |
Group | Powder/ Liquid |
Mixed ratio[Weights] | 5:3 |
Smash Time [minutes] | 2-3 |
Yes.22°C solidification time [minutes] | 9-12 |
Peak temperature[℃] | 110 |
Sphere Hardness[/mm²] | 113 |
Stink hardness[MPa] | 84 |
Heat-resisting temperature[℃] | 125 |
Solubility | Only bulging |
Density[g/cm] | 1.14 |
Impact intensity [KJ/m²] | 6.4 |
Anti-curve strength [N/mm²] | 95 |
Pressure [N/mm²] | 100-200 |
Water intake[% by vol] | -- |
Linear contraction rate[%] | 2.25/2.08/1.80 |
Volume contraction rate[%] | 1:1=6.75 1.8:1=5.8 2.3:1=5.4 |
Refraction Rate Mono/Pomers | M = 1.422 P=1.434 |
Storage temperature[℃] | 25 |
Valid period[year] | 3 |
Lin. TCE | 110 x 10-6 |
Eflexing Mode[MPa] EN ISO 604: 2003 | 2000–2300 |
Packaging specifications

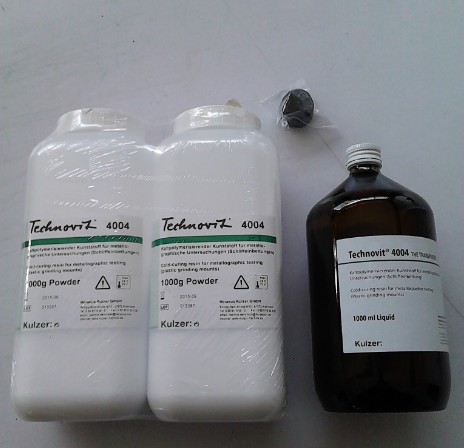

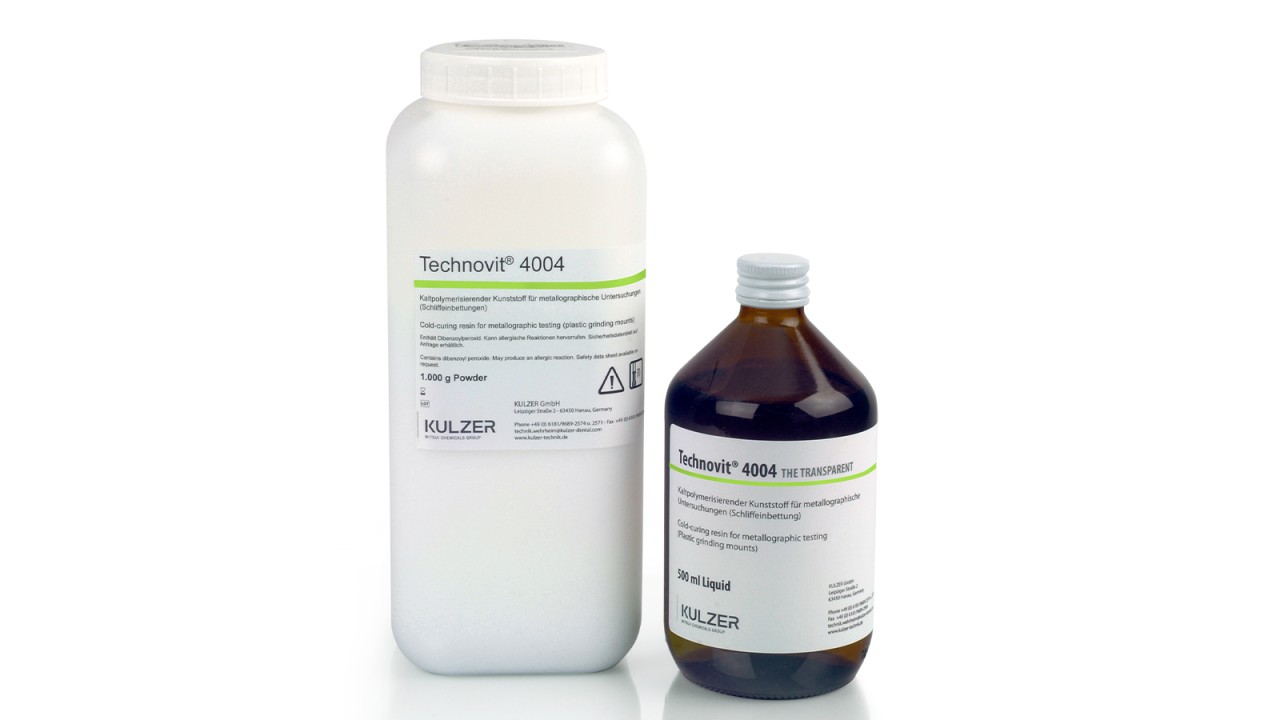

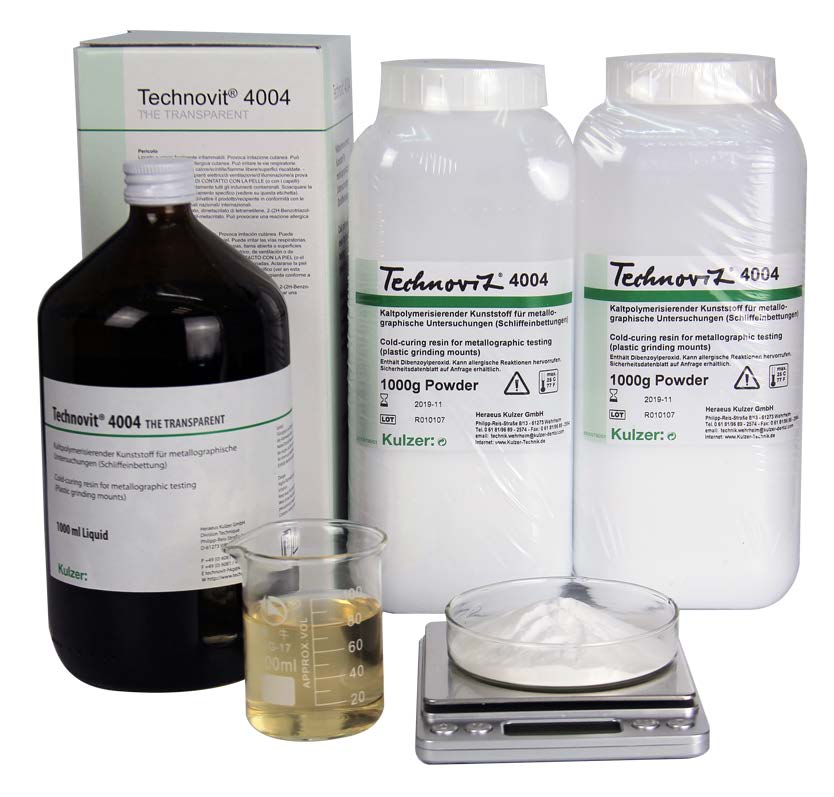

Technovit 4004 Pink Technovit 4004 Pink Technovit 4004 Pink | 1000g 2x1000g 10000g |
Technovit 4004 Liquid Technovit 4004 Liquid Technovit 4004 Liquid | 500ml 1000ml 5000ml |
