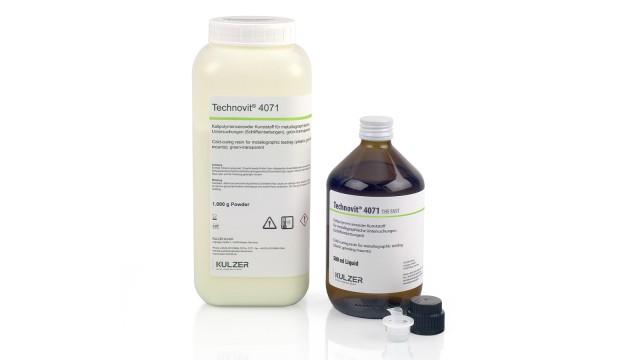

Technovit 4071
Technovit 4071
(general cold-layed resin) not includedDMPT and phenylenedioxyate
Normally embedded ideal selection
High-integral.Technovit 4071 has excellent grinding properties and is easy to process. Semi-transparent properties make it well-directed and have short time to fix, and are therefore essential for conventional mosaicing.
✪Easy to operate, suitable for regular batch detection
✪Low viscosity
✪Short time for solidification (5-7 minutes)
✪It's good to grind.
✪Rapid conventional embedding for various samples
Technical specifications
| Technovit 4071 | |
Colours | Green Transparency |
Purpose | Embedded |
Group | Pink/ Liquefied |
Mixed ratio[Weights] | 5：3 |
Smash Time [minutes] | 1-2 |
Yes.22°C solidification time [minutes] | 5-7 |
Peak temperature[℃] | 108 |
Sphere Hardness[/mm²] | 155 |
Stink hardness[MPa] | 85 |
Heat-resisting temperature[℃] | 100 |
Solubility | Only bulging |
Density[g/cm] | 1.19 |
Impact intensity [KJ/m²] | 6.1 |
Anti-curve strength [N/mm²] | 94 |
Pressure [N/mm²] | 100-200 |
Water intake[% by vol] | 0.3 |
Linear contraction rate[%] | 1.93 |
Volume contraction rate[%] | 5.8 |
Refraction Rate Mono/Pomers | M = 1.458
|
Storage temperature[℃] | 25 |
Valid period[year] | 3 |
Lin. TCE | 119 x 10-6 |
Eflexing Mode[MPa] EN ISO 604: 2003 | 2100–2500 |
Packaging specifications
Technovit 4071 Pink Technovit 4071 Pink Technovit 4071 Pink Technovit 4071 Liquid Technovit 4071 Liquid Technovit 4071 Liquid | 1000g 2X1000g 10000g 500ml 1000ml 5000ml |
