Technovit 7100

Product Introduction

Technovit 7,100 (super thin slices)

The government has also been able to provide a better understanding of the situation.Technovit 7100 is an optional material, which was developed for tissues and has proved its value in industry over the years because of its universal nature.

Product Advantages
Performance and applications

✪Small-embedded

✪Complex shape, fine plastic parts

✪Based onThree sets of HeMA embedding resin.

✪It's good for the insulation and stability of the hard-line material.

✪Make sure you have a good permeation of the porosity material.

✪No temperature load

✪The sharp-head shapes are evenly distributed to protect blades and samples.

Thin as a1µm

✪This unique, easy to use three sets ofHeMA-based resins reduce the thinness of the sheet to 1 μm.

✪This is what makesTechnovit 7100 becomes a mosaic resin that is indispensable for difficult resin samples, spinach fabric, paper, fibres, polymer materials and their combinations.

Infiltration- Save the structure details.

✪In addition to excellent osmosis and good cutting, the high tolerance of most polymer materials is particularly noteworthy.

✪Slipped plastic samples can be directly embedded, and porous materials (sponge, textile samples, etc.) can be stabilized.

✪The paper is extremely sticky.The Technovit 7100-soft solution.

✪No need for additional infiltration.

Technical Specifications

Technical specifications

Technovit 7100

Colours

Light yellow, transparent

Purpose

For microscope slices

Group

Basic solution/Structizer 2

Smash Time [minutes]

5-7

Yes.22°C solidification time [minutes]

60-75

Peak temperature[℃]

S:38

Q:38

Density[g/cm]

1.07

Anti-curve strength [N/mm²]

50-60

Pressure [N/mm²]

90

Water intake[% by vol]

0.33

Linear contraction rate[%]

2.8

Volume contraction rate[%]

8.4

Storage temperature[℃]

25

Valid period[year]

3



Packaging specifications

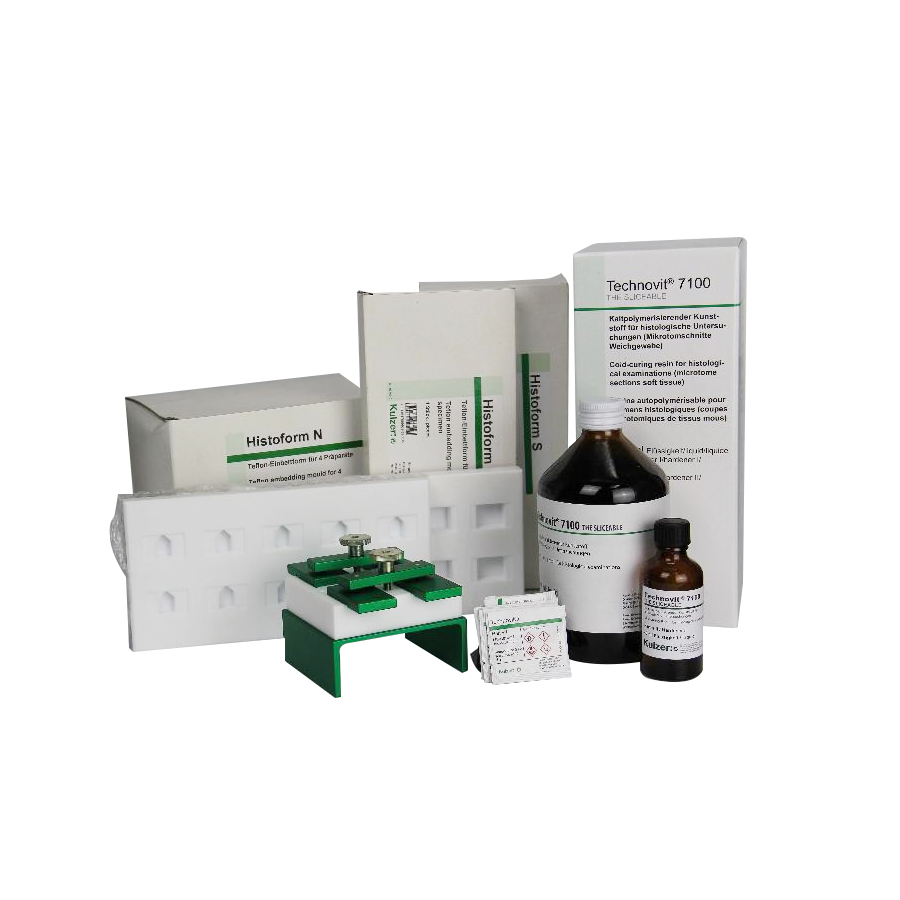

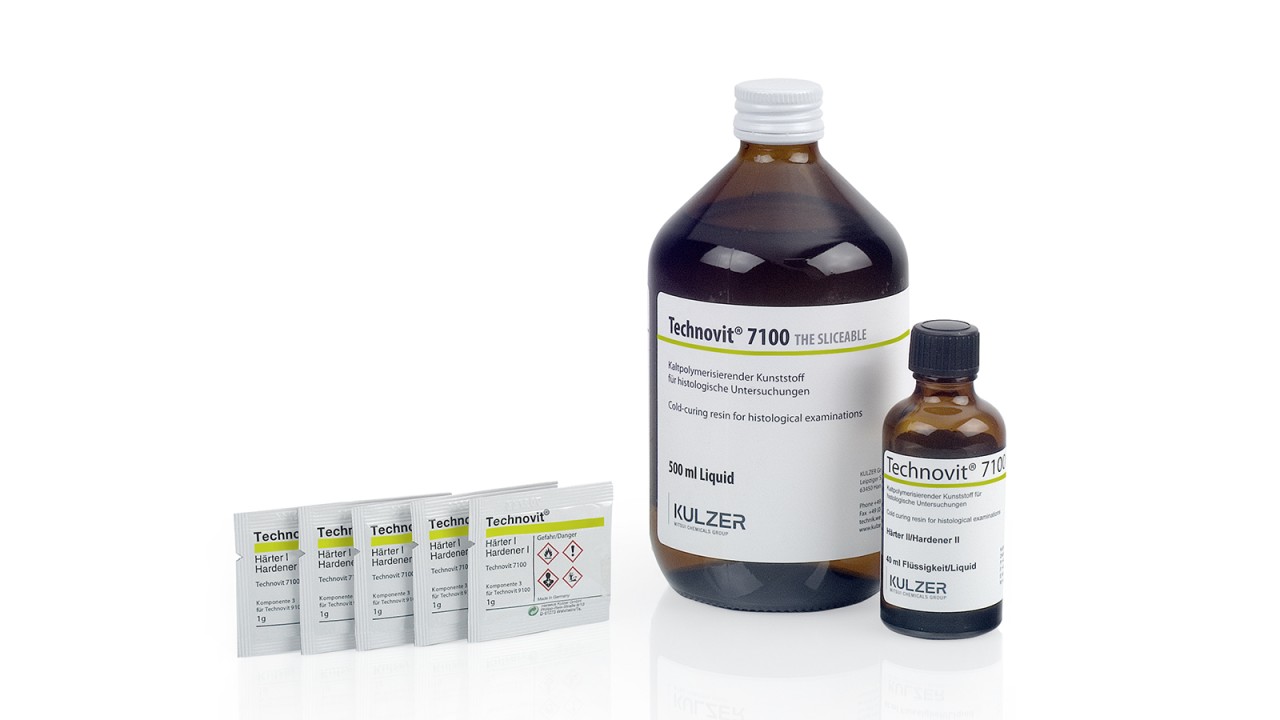

Technovit 7100 suit

500 ml liquid/40 g solidifier

II/5x1 g solidifier I

PEEmbedded Modifiers25 mm

The cradle.

3 Package

3 Package
