Technovit 5071

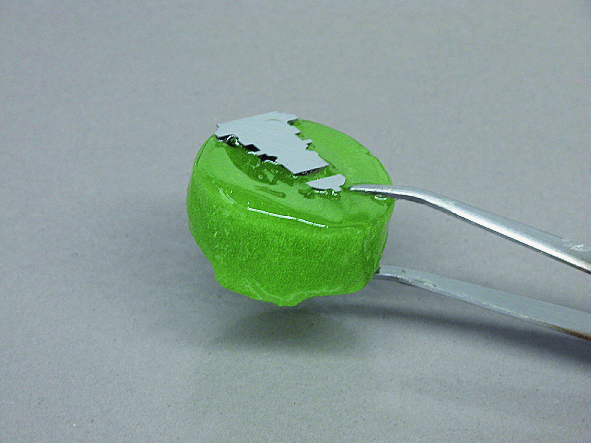

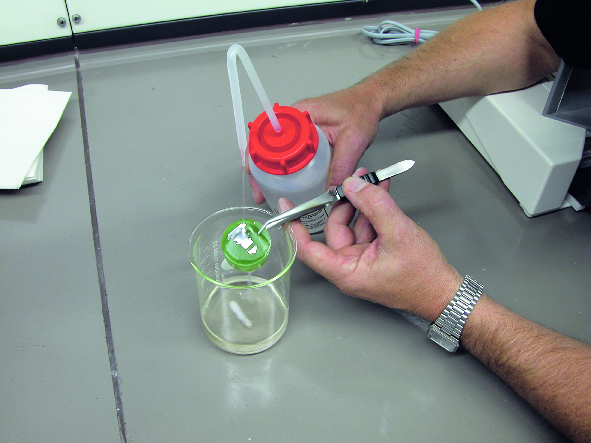

It applies to mosaics that require the reuse of samples.Technovit 5071 is soluble, easy to use, and very good mechanical processing. Technovit 5071 provides a mild removal of sensitive samples, which are available for recovery because of their value or confidentiality, and from which the sample preparation is simplified, for example for SEM inspection.

Product Advantages

Soluble resin

Non-near-benzodimethyl acid None DMPT

✪Solubility (using acetone, dichloromethane or class) (Perhaps)

✪Softens it with heat.150°C starting to get soft, 30 minutes)

✪Accessibility (variable mix ratio)1:1 to 3:1)

✪It's good to have it.

Technical Specifications

Technovit 5071
Colours	Green Transparency
Purpose	Embedded
Group	Powder/ Liquid
Fuck.Match[Weights]	5:3
Smash Time [minutes]	2
Yes.22°C solidification time [minutes]	8-10
Peak temperature[℃]	122
Solubility	In acetone.
Density[g/cm]	1.19
Impact intensity [KJ/m²]	6.3N/mm2
Anti-curve strength [N/mm²]	93
Pressure [N/mm²]	100
Water intake[% by vol]	ca. 2
Linear contraction rate [%]	2.3
Volume contraction rate[%]	7
Storage temperature[℃]	25
Valid period[year]	Pink3 years/ 2 years liquid
Lin. TCE	141 x 10 -6
Eflexing Mode[MPa] EN ISO 604: 2003	2000–3000

Packaging specifications

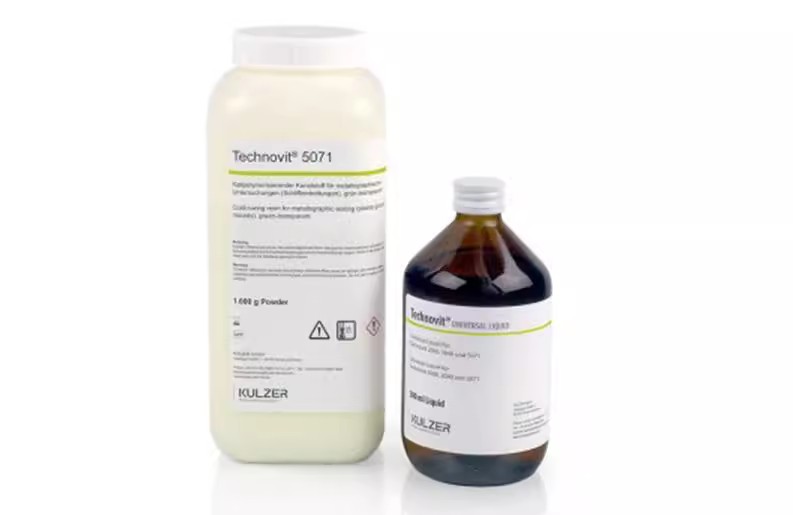

Technovit 5071 powder

Technovit General Liquid

1000g

500ml
