Technology Pressure Pot Pressure Pot.

Technomat Pressure Pot Pressure Pot

It's a good place to fast-fix resin.

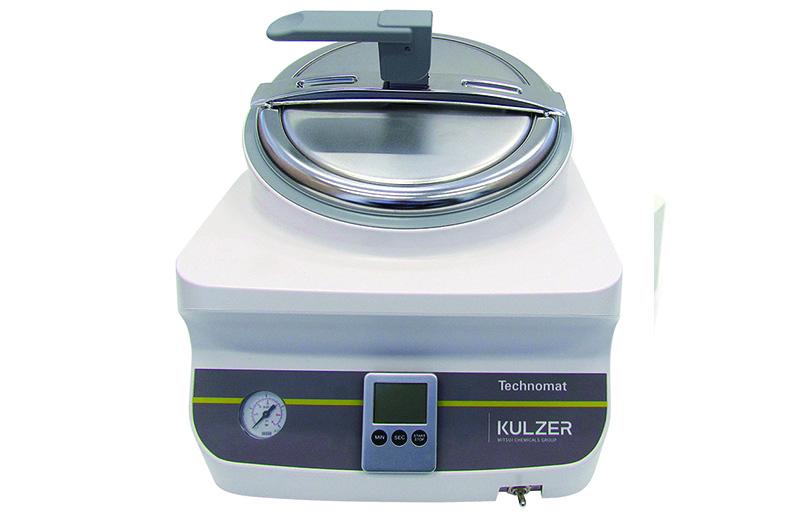

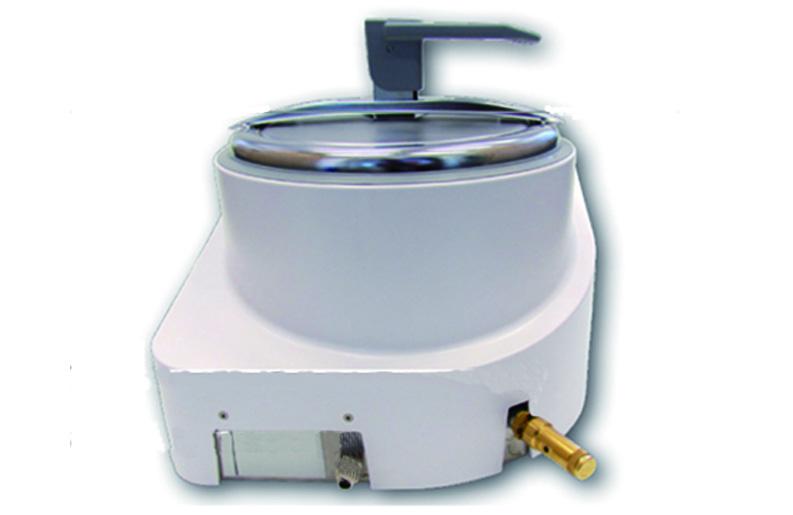

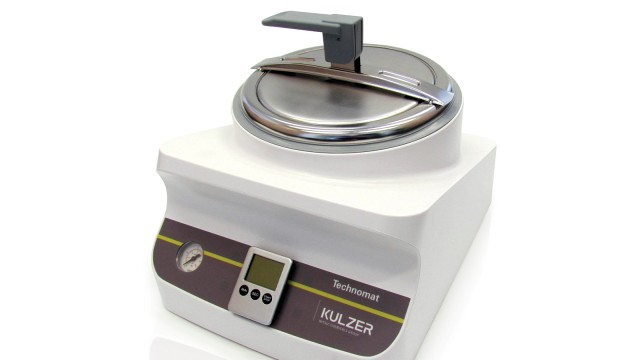

The Technomat pressure pot is a space-saving, compact pressure device. When the resin is quickly sequestered into the device, it is available to get a sample of the air-free and pore.

Technomat was designed to adapt to the special technology of fast-fixing resins.Solidified under pressure pan. The product is free of bubbles, which allow for better quality samples. Technovit 4004 and 4006.

The pressure pot is designed to be simple and easy to operate. When the valve moves up, the pressure reaches the pressure.2.0barThe pressure table displays a working pressure, which is released by moving down the valve. The pressure pan is a compact, space-saving device, made from special resins, and made from stainless steel in pressure containers.




Product Advantages

Operating methods

✪Connect to gas source, max connect gas source10bar。

✪Switching pressure pot: lifting the handle to vertical position, rotating the pan cap90The lid is not removed until the pressure is released completely, and the lid is sunk when the pressure is released. The lid off is used to the contrary. It must be pointed out that the lid support pole is suitable for the molds on the edge of the pressure vessel.

Cleaning and maintenance

✪Pressure tests are conducted every two years using wet cloths to wash and prevent water from entering the pot, and not using acid reagents.

Technical Specifications

Technical specifications

Press

2.0 bar

Safety valve

2.8–3.3 bar

Pressure.

3–10 bar

Dimensions

Longx width x height: 340x340x255mm

Weight

About4KG

Packaging specifications

Technomat Pressure Pot               1Station
