E.P.06.

Product Features Technical Parameters Download Order Related Videos Related Optional Products

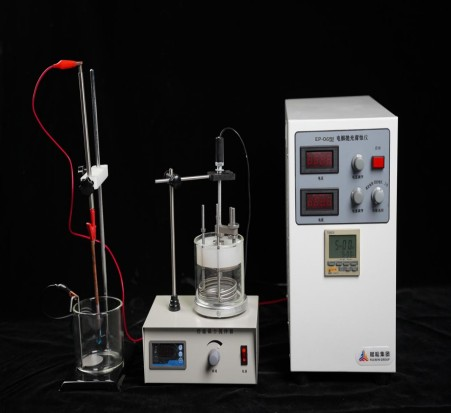

EP-06 electrolytic polishing corrosion, which uses electrochemical principles to prepare gold-phase samples. The equipment can be used both for polishing gold-coated samples and for corrosive gold-coding samples, with advantages such as fast-forming, repetitive, non-mechanical deformation layers, and ideal equipment for non-ferrous metal samples, steel, and, in particular, stainless steel-preparative metal samples. In particular, the Aluminium alloy luminum-grade replend and stainless steel replacements strong acid corrosion.


Product Advantages

✪(b) The voltage, current range, which can satisfy both the polishing and corrosive of the materials;

✪(b) The method of working for constant currents and constant voltage;

✪(a) The area of polishing/corrosion of the sample can be controlled, thereby ensuring that the current of polishing/corrosion of the sample is stable;

✪(b) Working temperature of polishing/corrosion fluids can be controlled;

✪Control of polishing/corrosion time;

✪The mixer ensures that the polish/corrosive medium is even and that the surface environment of the sample is consistent;


Technical Specifications

Specifications

Number

Power: Output voltage: 0-100V, numerically, voltage preset

Output current: 0-6A, numbers indicate that the current is pre-set and protected by a load

Working hours control: 1 second -- 99 minutes 59 seconds, the number shows that time is set; beeper alarms when the time is set

1 table

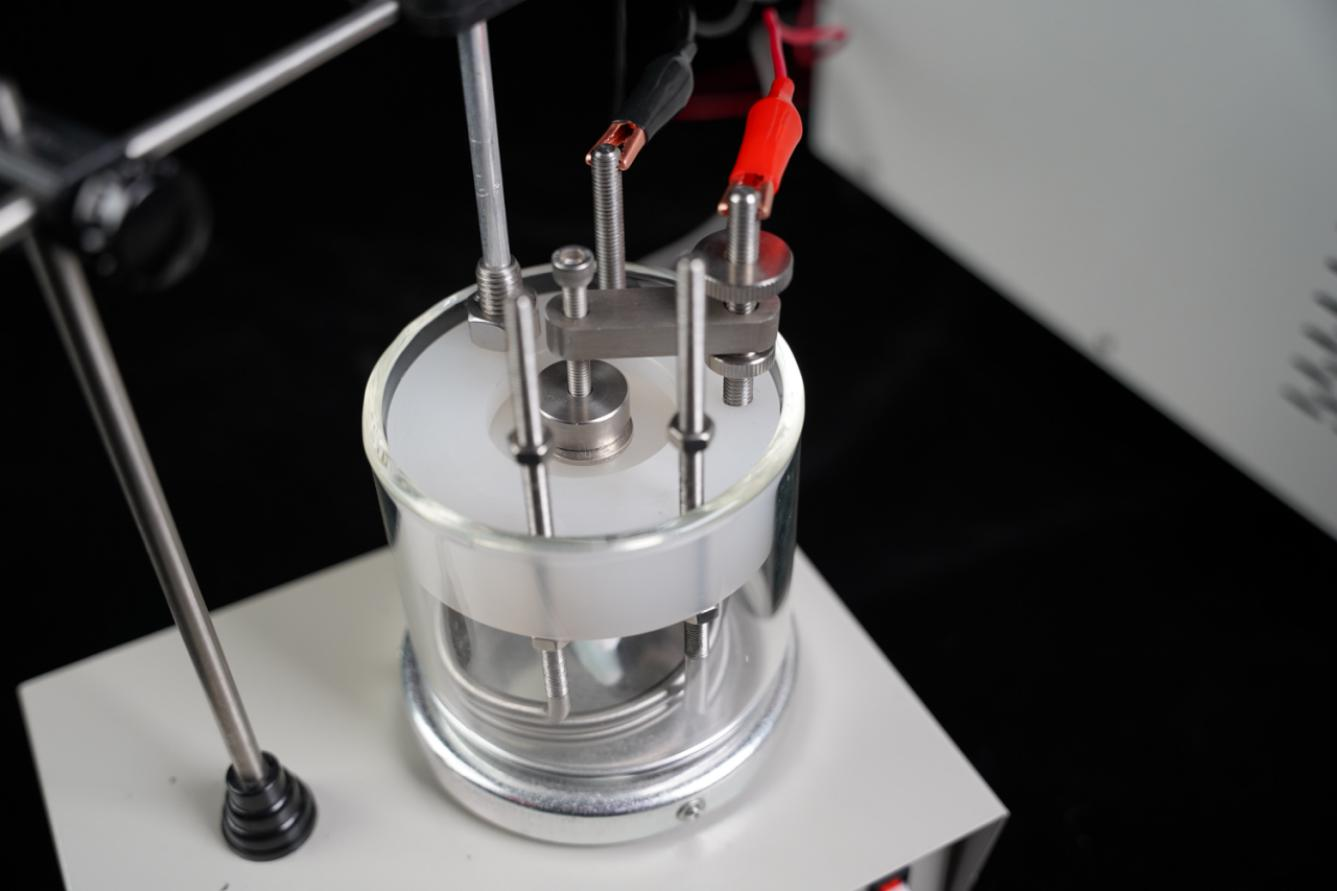

Standard polishing/corrosion components

1 set

Enrichment: cooling tube, cathode, etc.

One each.

Sample mask: Control of sample polished area 10, 20, 30 mm in diameter

One each.

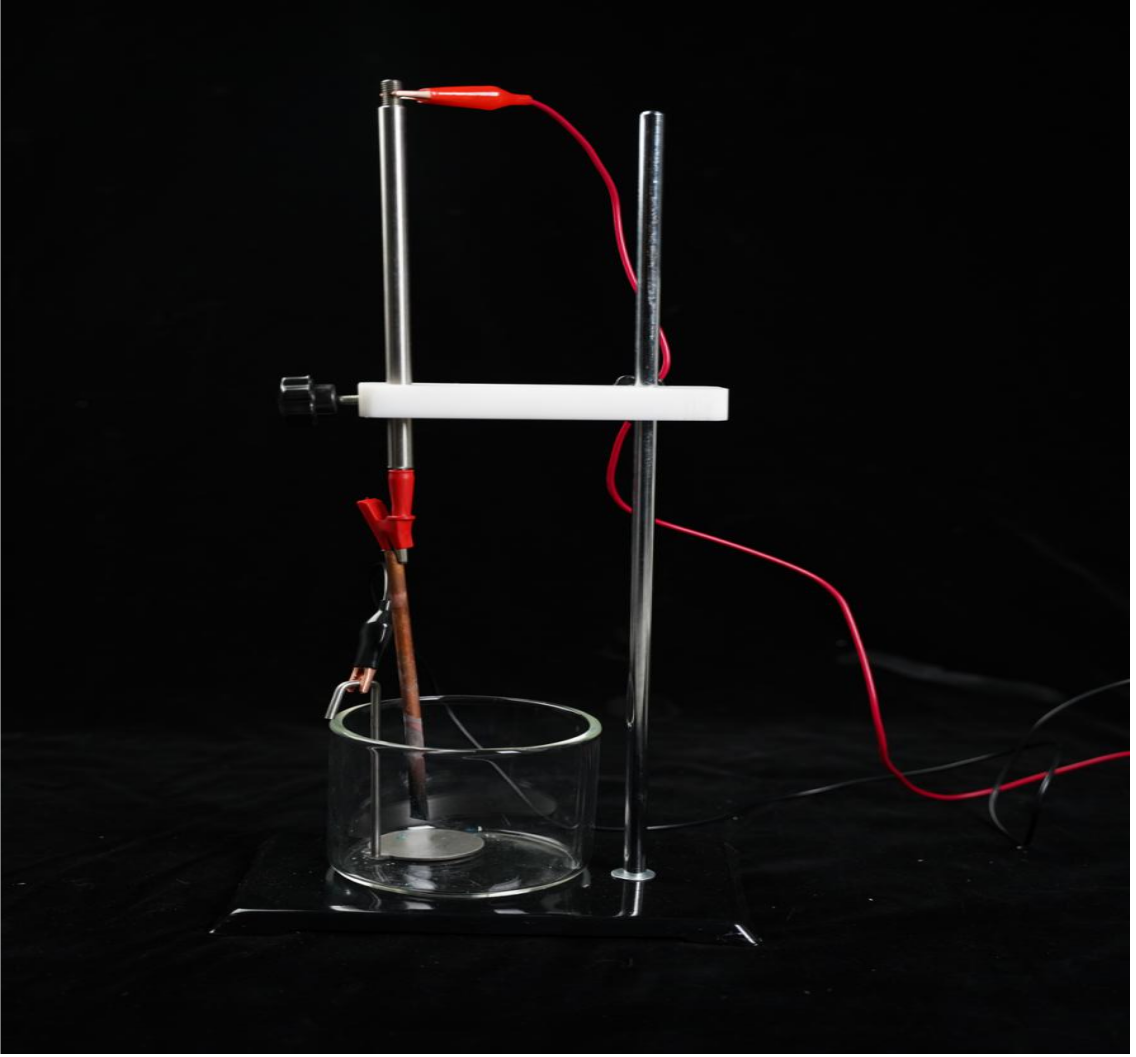

Simple polish/corrosive components (iron stand, anode slab, anode clip, cathode, etc.)

1 set

The mixer and heating control units

One.

Containers

Two.

Notes

1 set

Certificate

1
