E.C.E.P.05

Product Features Technical Parameters Download Order Related Videos Related Optional Products

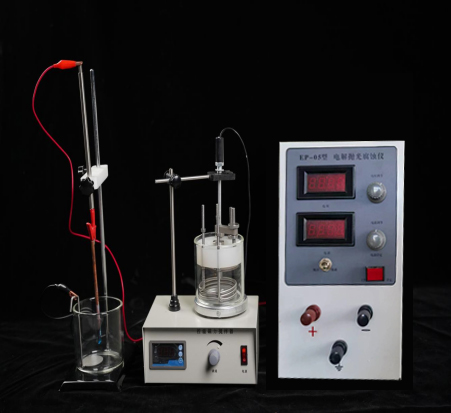

The EP-05 electrolytic polishing corrosion machine, which uses electrochemical principles for the preparation of gold-phase samples. The equipment is used for both the polishing of gold-column samples and for corrosion of gold-column samples, with the advantages of making them quickly, repetitive, non-mechanically processed deformations, and ideal equipment for non-ferrous metal samples, steel, and, in particular, stainless steel-preparation-based samples.
Product Advantages
✪(b) The voltage, current range, which can satisfy both the polishing and corrosive of the materials;

✪(b) The method of working for constant currents and constant voltage;

✪(a) The area of polishing/corrosion of the sample can be controlled, thereby ensuring that the current of polishing/corrosion of the sample is stable;

✪(b) Working temperature of polishing/corrosion fluids can be controlled;

✪Control of polishing/corrosion time;

✪The mixer ensures that the polish/corrosive medium is even and that the surface environment of the sample is consistent;

Technical Specifications
Main technical parameter: power supply

Output voltage: 0-30 V, numeric, preset

Output current: 0-10A, numbers indicate that the current is pre-set and protected by a load

Working hours control: 1 second -- 99 minutes 59 seconds, the number shows that time is set; beeper alarms when the time is set



Standard Configuration List

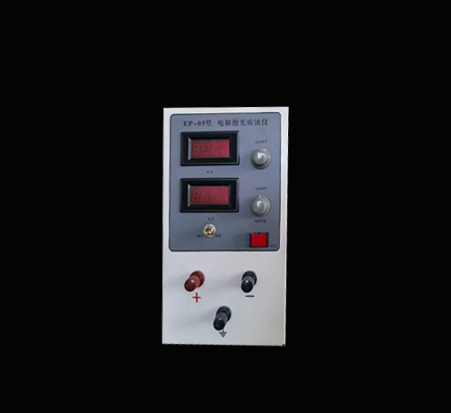

Power

1 table

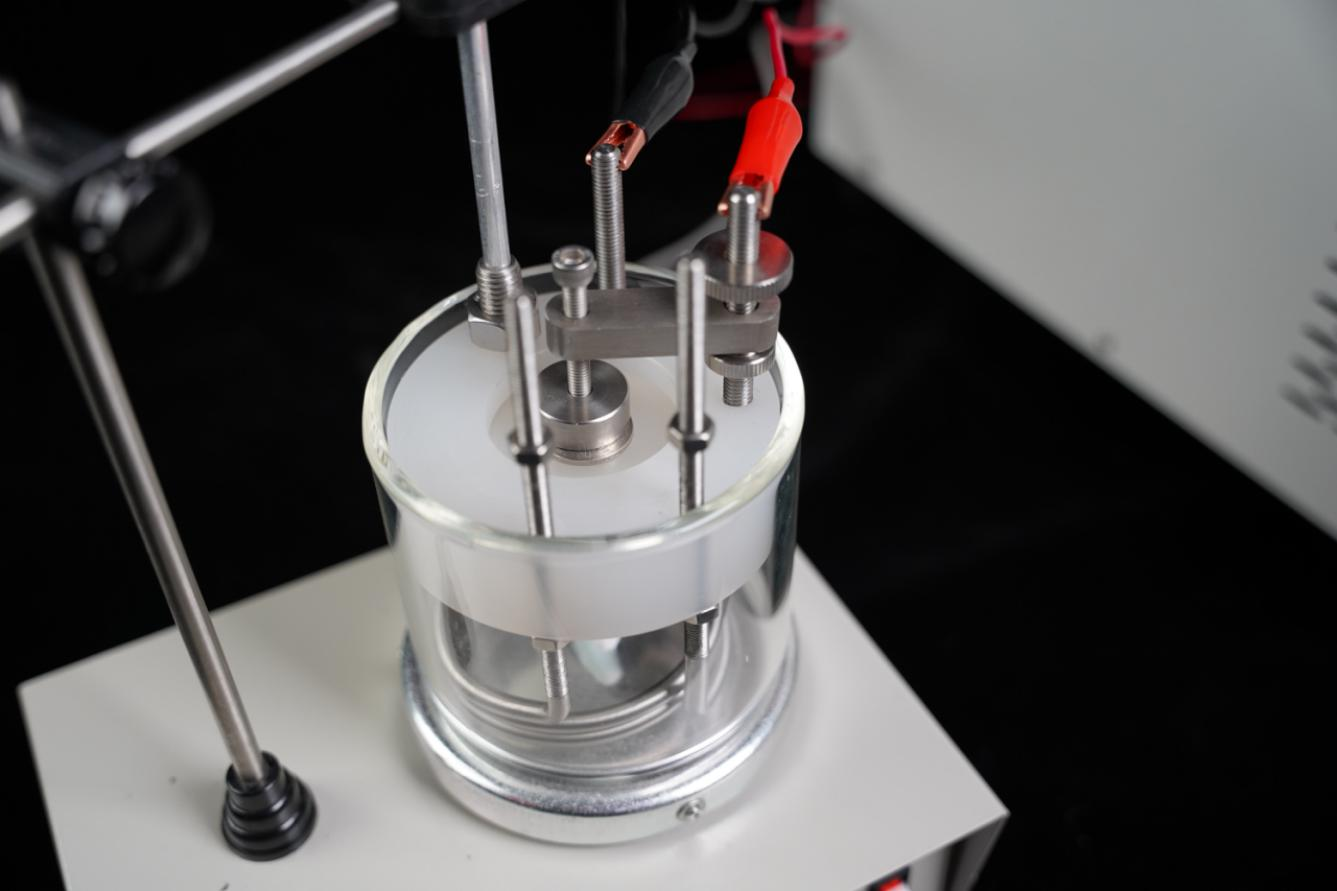

Standard polishing/corrosion components

1 set

Enrichment: cooling tube, cathode, etc.

One each.

Sample mask: Control of sample polished area 10, 20, 30 mm in diameter

One each.

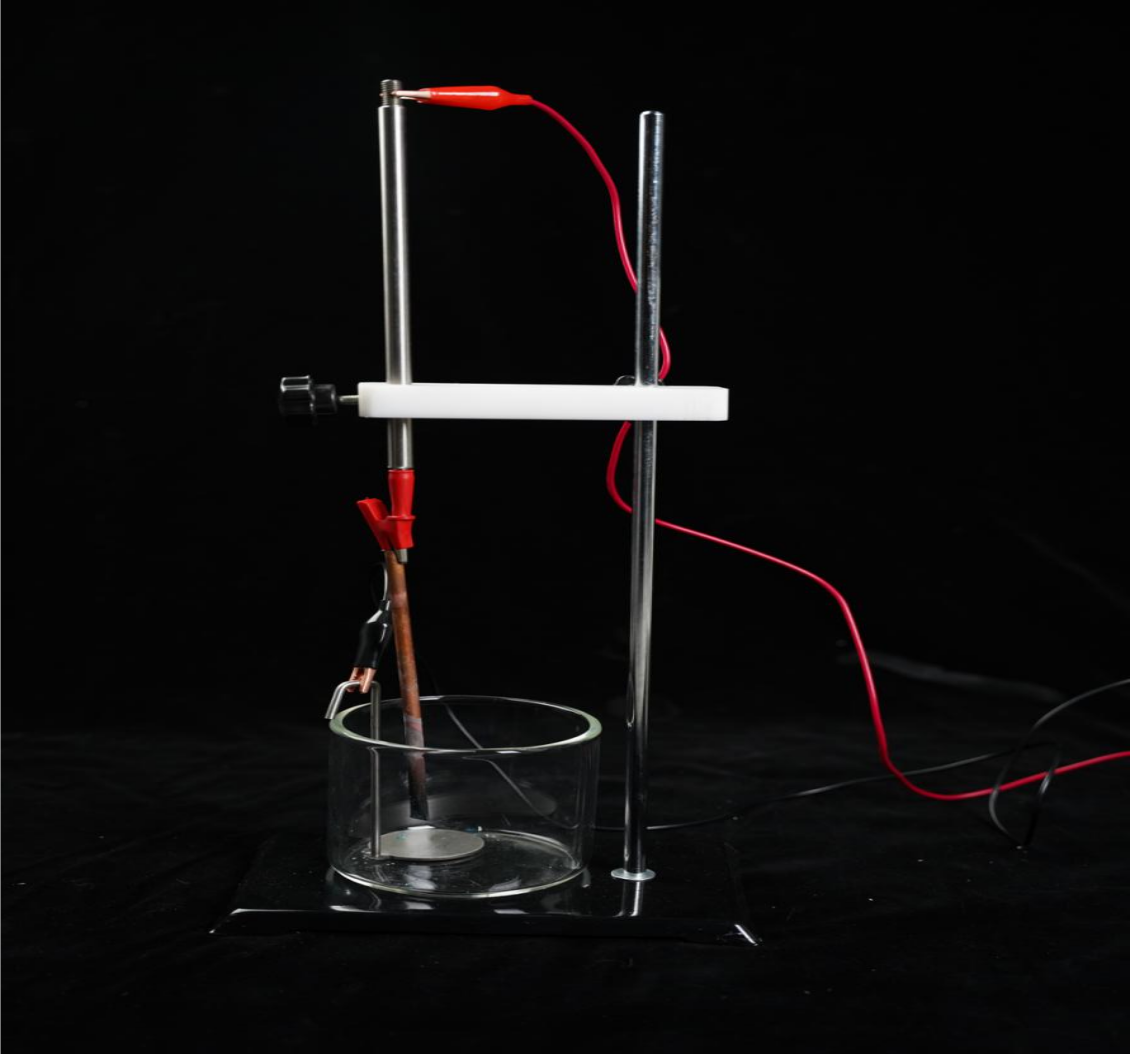

Simple polish/corrosive components (iron stand, anode slab, anode clip, cathode, etc.)

1 set

The mixer and heating control units

One.

Containers

Two.

Notes

1 set

Certificate

1
