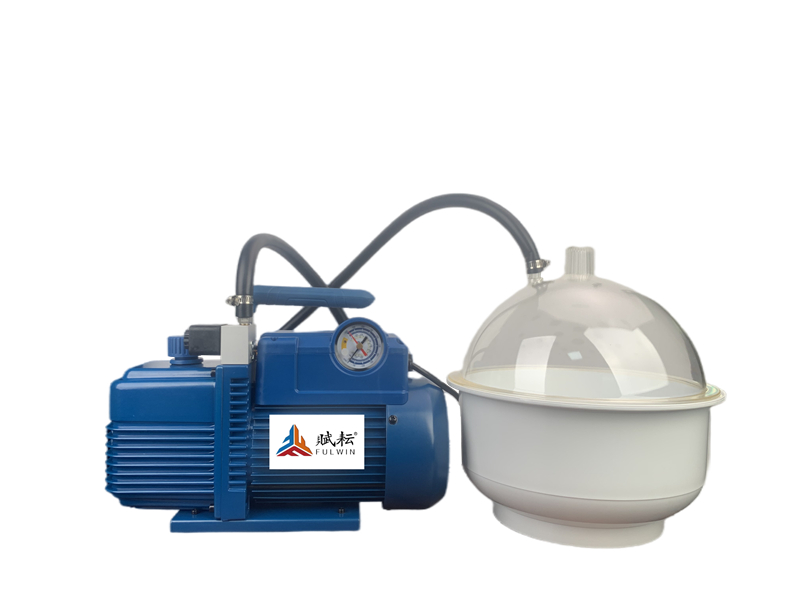

Vacuum Embedding FY-VM-IIFY-VM-II

The cold-saturated, especially in circuit boards, powdered metallurgy materials, etc., can be used for various samples. In the electronics industry, the dye can also be used to check weld defects.

Operation uses:

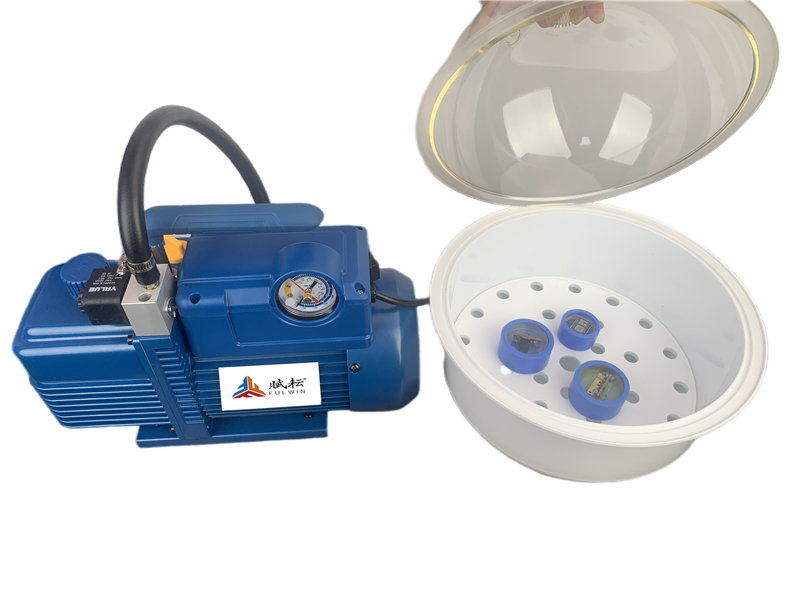

1. Placing the specimen in a vacuum container;

2. When the mosaics are mixed, the mix cup is placed on the cup shelf and the vacuum container is placed on the base;

3. To pour the mosaic into the mould, to hold it for one minute after the beam is filled and then to be transferred to atmospheric pressure;

4. Repeat the cycle several times, opening the cavity and quelling it.

Product Advantages

✪The holes in the samples will be filled with embedded resins, and no gap will emerge between the samples and the embedded resins.

✪The equipment is compact, fast and easy to use.

✪The edges are maintained and fragile samples are well supported in grinding and polishing.

✪A robust vacuum pump provides a sufficient vacuum to rapidly remove the air caught in the multi-pore specimen.

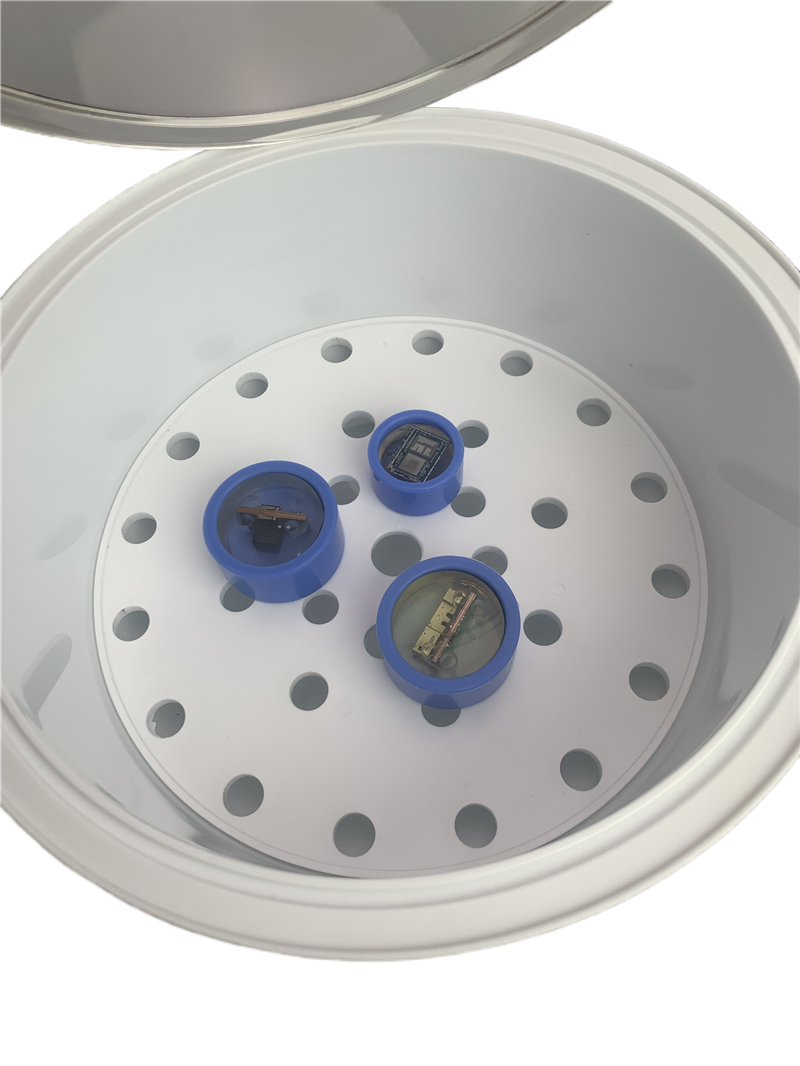

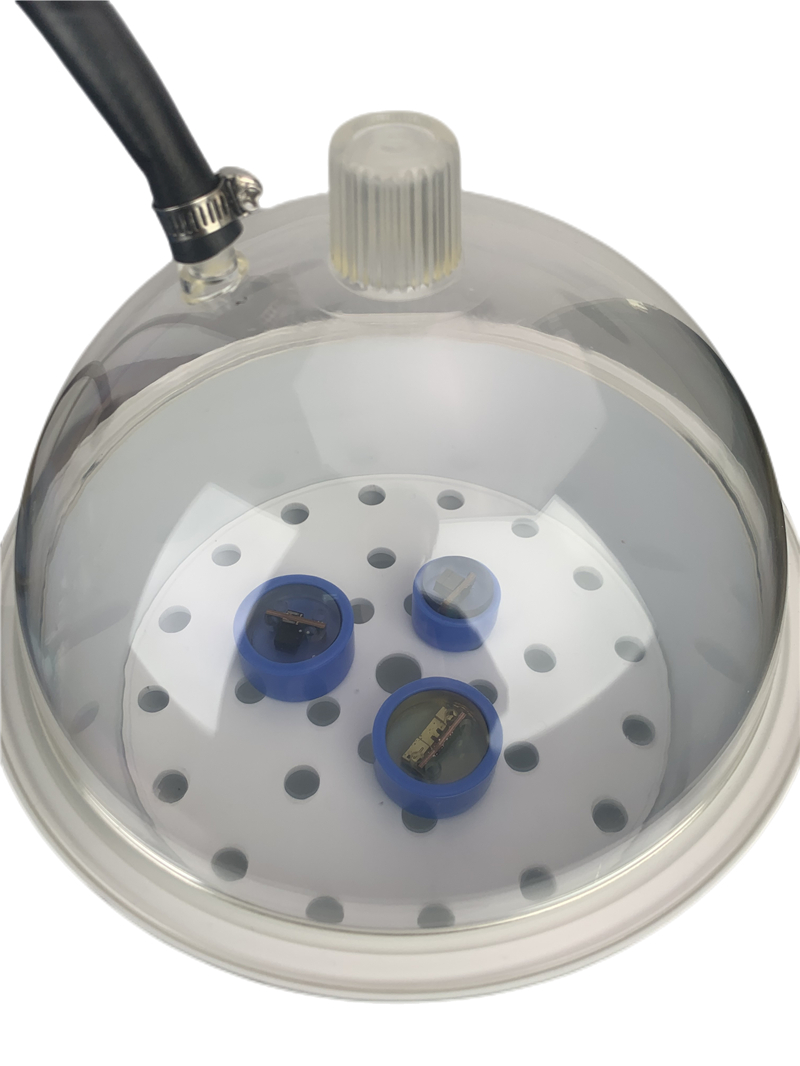

✪Using a rotating cup frame unique to a vacuum container, multiple samples can be immersed in a vacuum at the same time.

Technical Specifications

Name

Specifications

Remarks

Moose Specifications

diameter30mm,Soft Model

Optional40,50mm

Vacuum pump

Maximum Vacuity:-0.1Mpa,Exhalation rate:7.2   m³/h

输入电压和功率

单相220V,50/60Hz   370w

外形尺寸

真空容器:300Lx 300W x 300H mm,真空泵:340Lx 130W x 270H mm

最多可镶嵌样品数量

  10individual

diameter30mm

Weight

Vacuum packagings:1.15kg/Vacuum pump:11.5kg
