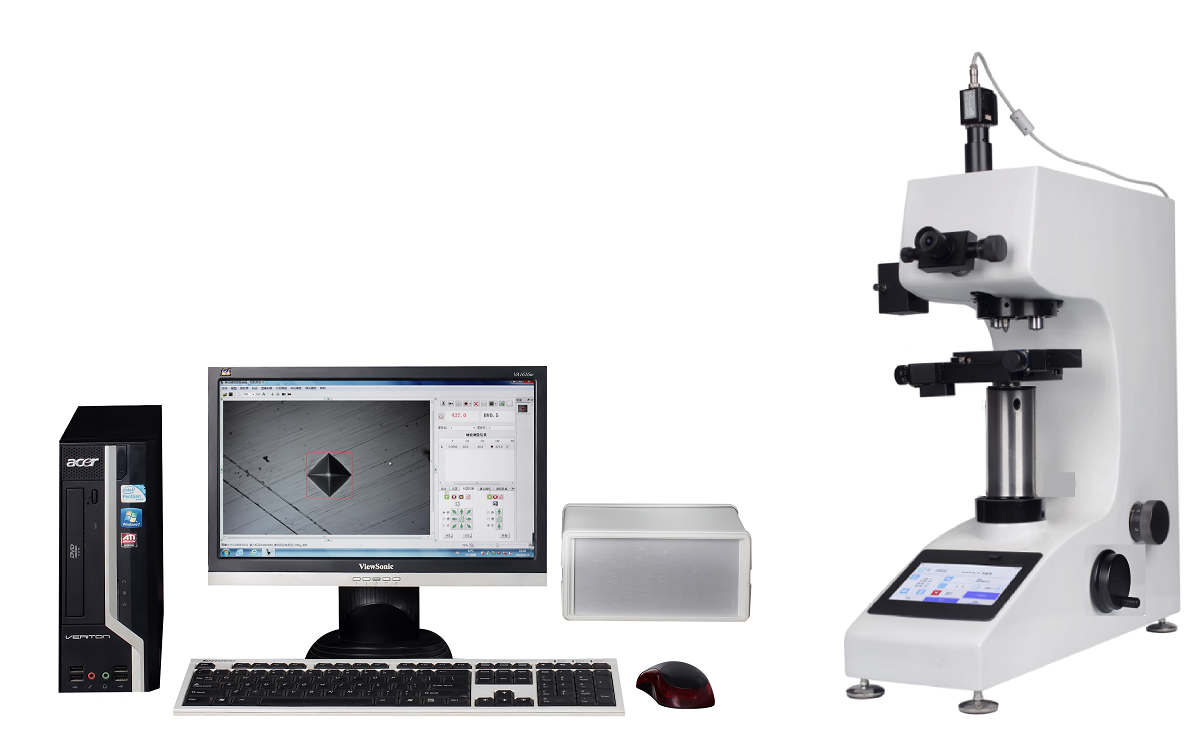

Compatible test force

5㎏

0.3kgf(2.94N)、0.5kgf4.9N)、1.0kgf(9.8N)、2kgf(19.6N)、3kgf(29.4N)、5kgf(49.0)

10㎏

0.3kgf(2.94N)、0.5kgf4.9N)、1.0kgf(9.8N)、3kgf(29.4N)、5kgf(49.0)、10kgf(98N)

30㎏

1.0kgf(9.8N)、3kgf(29.4N)、5kgf(49.0)、10kgf(9.8N)、20kgf(196N)、30kgf(294N)

50㎏

1.0kgf(9.8N)、5kgf(49.0)、10kgf(9.8N)、20kgf(196N)、30kgf(294N) 、50kgf(490N)

Implementation standards

Precision in GB/T4340.1 GB/T4340.2  IS06507-2  ASTM_E384

Test force application method

Automatic (gaff, bob, deload)

XY Sample table and movement control

The system provides a mobile XY sample table:

1.XY Process: 50 mm*50 mm surface dimension: 110 mm x 110 mm, repeat accuracy<2um;routing and size custom

2. Automatic edge scanning: autoscan and depict the whole map of the edge of the sample along the edge of the sample for use in the loading path planning, suitable for hardness measurements that need to be taken at the specific location of the sample

3. XY can be moved at any speed

4. Move or rise by pressing the direction button or keyboard or by entering a moving distance, etc.

Load Mode and Path Settings

Load Path Settings provide the following mode:

1. Across the route; 2. Azimuth along the route; 3. Free click; 4. Azimuth; 5. Azimuth; 6. Multiple lines along the curve; 7. Acronyms along the curve; 8. Circumcular arc; 9. Cartiental; 10. Parallel to the top; 11. Automatic angle along the edge band; 12. Automatically following the edge matrix; 13. Circles.

Automeasure

Automatically loads the hardness values by the specified loading path, automatically measures the pressure marks and automatically draws the harding curve; one key completes:

1. Minimum HV can be set and measurement automatically stops when it reaches that value

2. After the measurement is completed, the additional point can be added to the original path

3. The measurement image at each point is saved for final manual correction; only the mouse drag-and-drop-trace quadrilateral border, hard measure values, statistics, and measurements of image book, etc., are required for the amendment

Camera and calibration management

1.1 million pixels USB2.0 CCOS dedicated to mirror measurement cameras (3 million pixel cameras optional)

2. The camera may be marked by hard-scale blocks or by two methods:

3. To improve measurement accuracy, different test forces can be separated and systems automatically loaded

Hardness conversion, fixation, validity validation

Hardness conversion: measured wilness values can be converted to a standard, national or other hardness values such as HB, HR, etc.;

Hardness correction: The measurements of the spherical or cylindrical samples may be amended;

3. Validity verification: Calculate the smallest sample thickness, the distance from the test point to the edge of the sample, and the distance from the test point based on the measured hardness value

Data statistics

Autocalculates the mean, variance, Cp, Cpk, etc. statistical values of the hardness

Stuck Curve

Automatically draw a hardened curve:

1. Multiple harding curves or single curves by average can be generated automatically under a measurement path;

2. Hardened curves for HV-XY can be drawn

Data storage

Original measurement data and images, etc., can be stored in documents for subsequent call-out reports; a file saves all data from a measurement

Test report

Auto-generated WORD or EXCEL document reports; report formats are custom-able; standard formats include hardness values, statistical values, laminated images, and hardened curves for each measurement point

Nuzid Hardness

Set to Nuidium Hardness Measurement

Fractal resilience

Set to measure the fracture resilience of the pressure marks

Other functions

Includes image/video filming, image processing, geometric dimension measurement, document labeling, album management, and fixed-multiplier printing; document labeling can input text, list, and pictures on images, etc.

Wing

Three.

Large, medium, medium"V" test

EachOne.

Horizontally calibrated screws

Four.

10^×Microscope

One.

Wys hard block

Two.

The back-up fuse.

2 (1A)

       Powerline

One.

Product Qualification Certificate

1

       Product use instructions

1

Dust shield

One.

XY powered shift desk

One.

XY Step Drive

One.

Powerline

One.

USB Connection

One.

XY Connection

One.

RS232 line

One.

1.3 million special cameras.

One.

Software installation CD-ROM

One piece.

Encrypted Dog

One.
