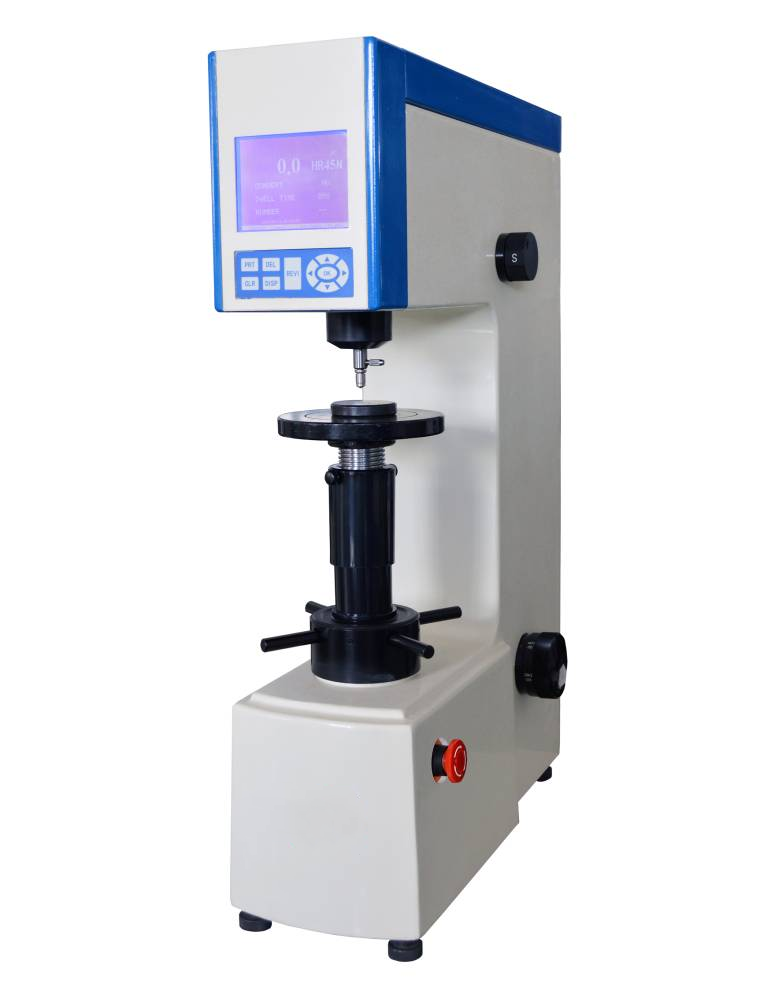

Numerical all-loop hard-meter FY-HR-150SS

Fuyun products are of stable quality, product solutions are rationalized, post-service training is trackable and timely, continuous innovation makes detection easier, and the whole market receives a reputation for high-quality evaluation from various applications. We also work with us on a programme for high-cost and inefficient conditions in the context of German imports, such as Gutha and France’s Lang Plann.

Application Scope

It also applies to surface flaming steel, material thermal and chemical treatment layers, copper, aluminium alloy, sheeting, zinc, chrome plating, tin plating, axle bearing steel, cold hard casting etc.

Product Advantages

✪FY-HR-150SS is a highly new technology with a high-tech product that shows a single-digit-based central power plant, with a new, fully functional, operational, visible visual and stable FY-HR-150SS.

✪You can do the hardness test on the L.A., the surface, the entire L.A. scale.

✪Displays and sets current test rulers, test forces, test head, load time, hard-to-convert values, headpressure types, etc.

✪Its main functions are as follows:

Selection of the L.O.F., surface L.O. hardscale;

Conversion values between hard-scale and hard-scale scales;

The hardness test results save viewing and printing output, and automatically calculate the maximum, smallest, average;

RS232 interfaces are available for user-connected computer output.

Technical Specifications

Model	FY-HR-150SS
Initial test force	3kgf (29.42N), 10kgf (98.07N)
Total test power	15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
Header Specification	Diamonds, rolls, 1.5875 mm hard alloy ball, rolls.
Test force application method	Automatic (loading/loading/disloading)
Hard Read	Numerical LCDs to get hard value
Measurement range	HRA：20-95 HRB：10-100 HRC：10-70
Measurement Rulers	HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y
Convert Ruler	HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW
Data Output	Internal printer, RS232 interface
Hardness Resolution	0.1HR
Porche Time	0~60s
Maximum height of the sample	185mm
Head center to wall distance	165mm
Power	AC220V，50Hz
Implementation standards	ISO 6508，ASTM E18，JIS Z2245，GB/T 230.2
Outer Size	520 x 215 x 740 mm, outer box size 650 x 370 x 980 mm
Weight	80kg net weight and 100kg gross weight

Standard configuration:

Name	Number	Name	Number
Instrument Host	1 table	The diamond is on the head.	One.
Φ1.5875mm hard alloy ball on top	One.	150mm flat interview desk	One.
60mm flat interview desk	One.	Test table 40mm V	One.
Standard hard block 60~70 HRC	One dollar.	Standard hard block 20-30 HRC	One dollar.
Standard hard block 80 ~ 100 HRBW	One dollar.	Standard hard mass 70-85 HR30T	One dollar.
Standard hard block 65 ~ 80 HR30N	One dollar.	One, two, three, four, five.	One each.
Powerline	One.	Fuse 2A.	Two.
Horizontal	One.	Horizontally calibrated screws	Four.
The inner six-angle wrench.	One.	Wrench.	One.
Dust shield	One.	Product Qualification Certificate	1
Product instructions	1	Printer instructions	1
