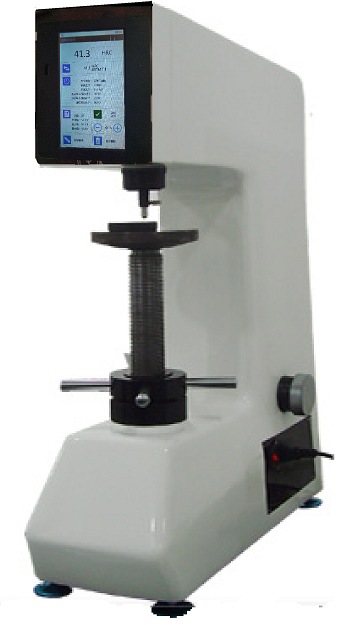

Touch screens, hard-to-soft FY-HR-150CMS

Fuyun products are of stable quality, product solutions are rationalized, post-service training is trackable and timely, continuous innovation makes detection easier and the market-wide is well-evaluated. We also work with German Gusa, France’s Langplen, and others to provide solutions to high costs and inefficiencies under demanding model conditions.


Application Scope

 Measurement of the hardness of ferrous and non-ferrous metals

 • Zirconium steel, decomposition, repulsive steel, cold and hard casting, exercise casting, aluminium alloy, copper, axle steel, etc.

Product Advantages

✪High Precision Transmover

✪7 inch touch screen display, icon structure

✪15 hard-end rulers.

✪Multiple standard hardness conversion functions

✪Hardness test results are directly exported toUSB

✪Good reliability, interoperability and visuality,Strong structure. Strong. Accurate, reliable, durable

Technical Specifications

The L.A. scale.

HRA, HRB, HRC, HRD, HRE, HRF,HRG,HRH,HRK,HRL ,HRM,HRP, HRR HRS,HRV

Initial test force

10Kg (98.07N)

Test force.

60Kg (588N), 100Kg (980N), 150Kg (1471N)

Hard Read

Touch screen display

Hard Resolution

0.1HR

Porche Time

2~ 60S

Hardness Converter Ruler Type

GB、ISO、ASTM

Maximum height of the test

170mm

Head to the inner wall.

165mm

Instrument size

520X240X700MM  (Long X-Key X-Hyg)

Instrument weight

80 Kg

Power

AC220V + 5%, 50~60HZ (default), specially agreed

Implementation standards

Accuracy in line with GB/T2302, ISO6508-2, ASSTME18, JIS Z2245

Data Output

USB

Standard accessories, accessories



Diamond stone, 1.5875 mm hard alloy ball, large flat, medium flat, V-type, HRC, HRB hard-drive, power lines, printer paper, etc.
