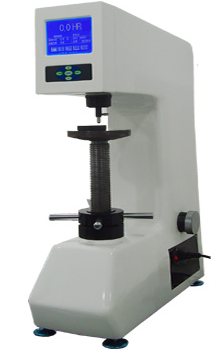

Numerical surface hard-drive FY-HR-45S

Fuyun products are of stable quality, product solutions are rationalized, post-service training is trackable and timely, continuous innovation makes detection easier, and the whole market receives a reputation for high-quality evaluation from various applications. We also work with us on a programme for high-cost and inefficient conditions in the context of German imports, such as Gutha and France’s Lang Plann.

Scope of application

Surface flaming steel, copper, aluminium alloy thin sheets, steel with steel, hard alloy steel, zinc plating, chrome plating, tin plating, materials surface heat treatment and metal materials for chemical surface treatment.

Product Advantages

✪Electric load, automatic load off, surface hardness of metal material for automatic reading.

✪The operation is simple, with small and high-precision levels of pressure.

✪Its main functions are as follows:

1. Selection of surface hard-scale L.O.S. scale,

2. Hardness conversion between hardness and

3. Print output of hard test results,

4. Good reliability, operationality

Technical Specifications

Surface L.A. scale

HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Initial test force

3Kgf(29.42N)

Test force.

15Kgf(147.1N),30Kgf(294.2N),45Kgf(441.3N)

Hard Read

Large Screen Number Display

Prison time.

0 ~ 60S

Maximum height of the test

190mm

Head center to the inner wall.

165mm

Instrument size(Long X-Key X-Hyg)

520X240X700MM

Instrument weight

80 Kg

Power

AC220V + 5%, 50~60 Hz

Implementation standards

GB/T230.2 National Standards, JJG112 Checklist

Standard accessories, accessories



Diamond Rock Heading, diameter.1.5875 mm hard alloy ball head, large flat, medium, V, hard, power lines, etc.
