Current location： Home > Product Center > Gold-phased specimens > Grinding and polishing > Gold-style sandpaper.

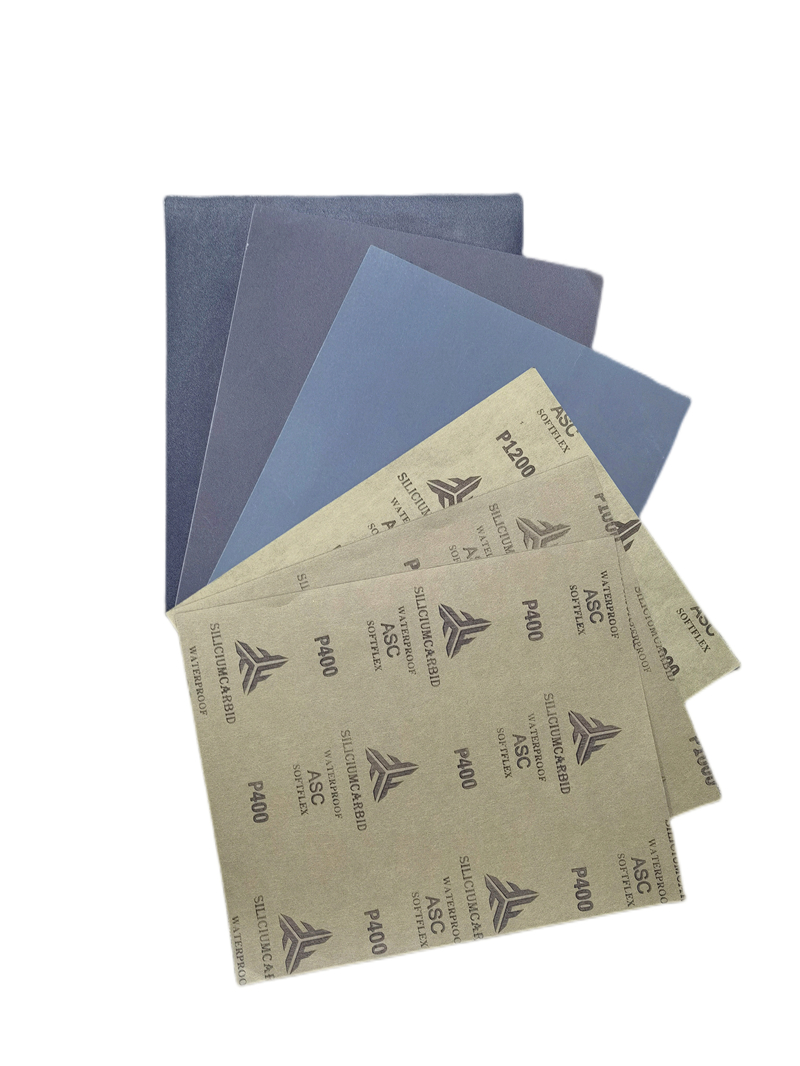

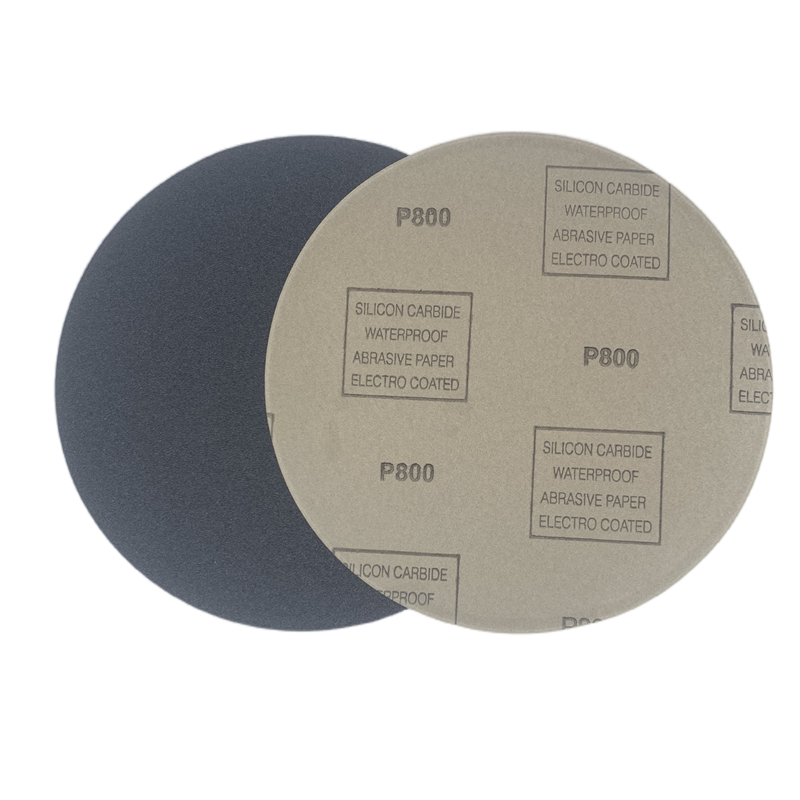

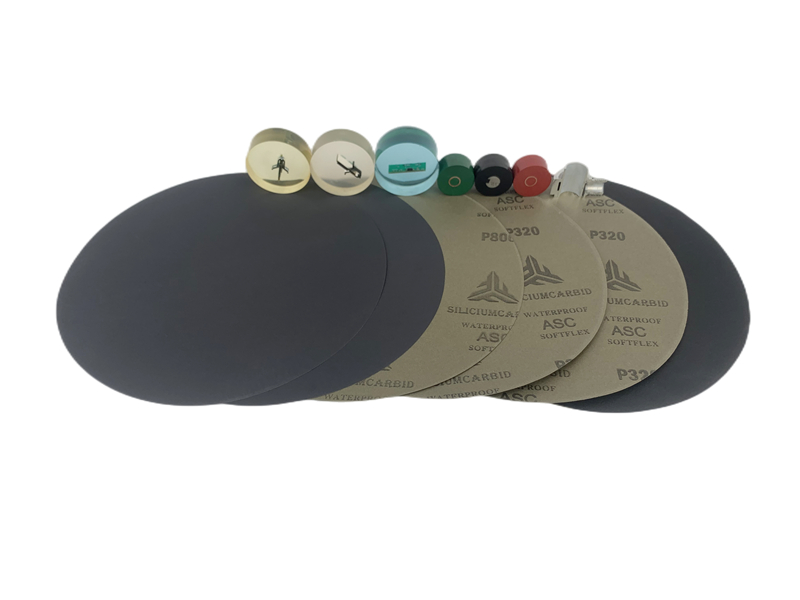

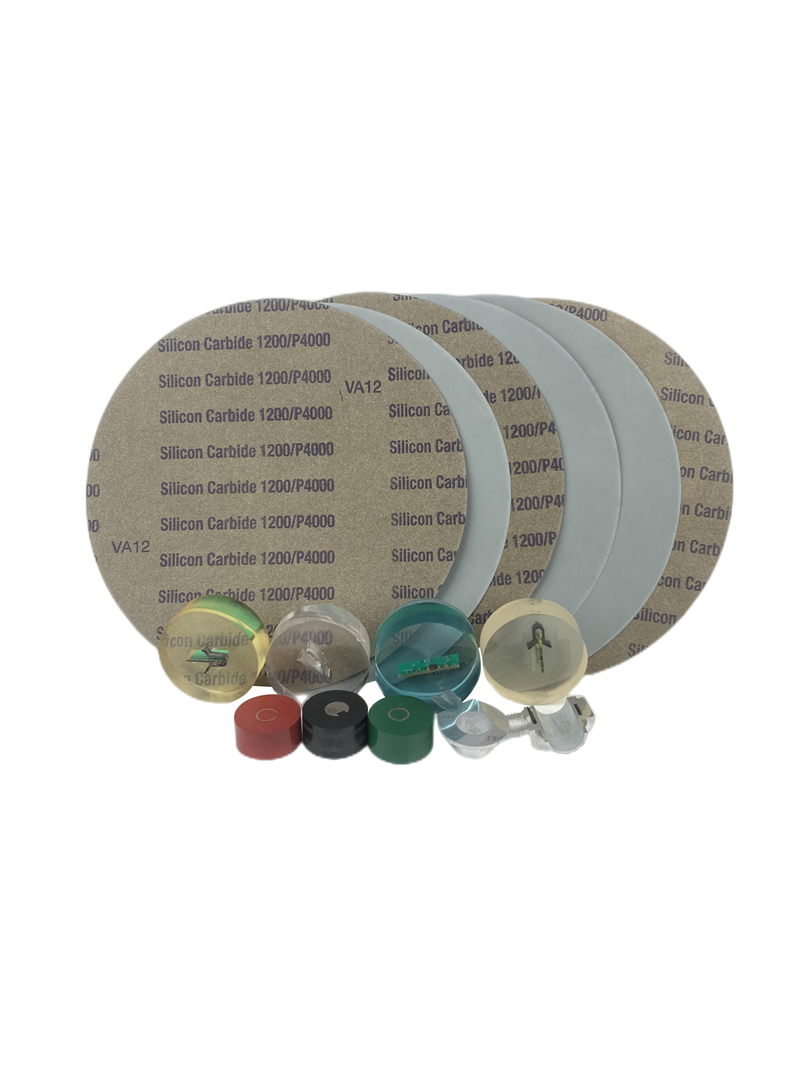

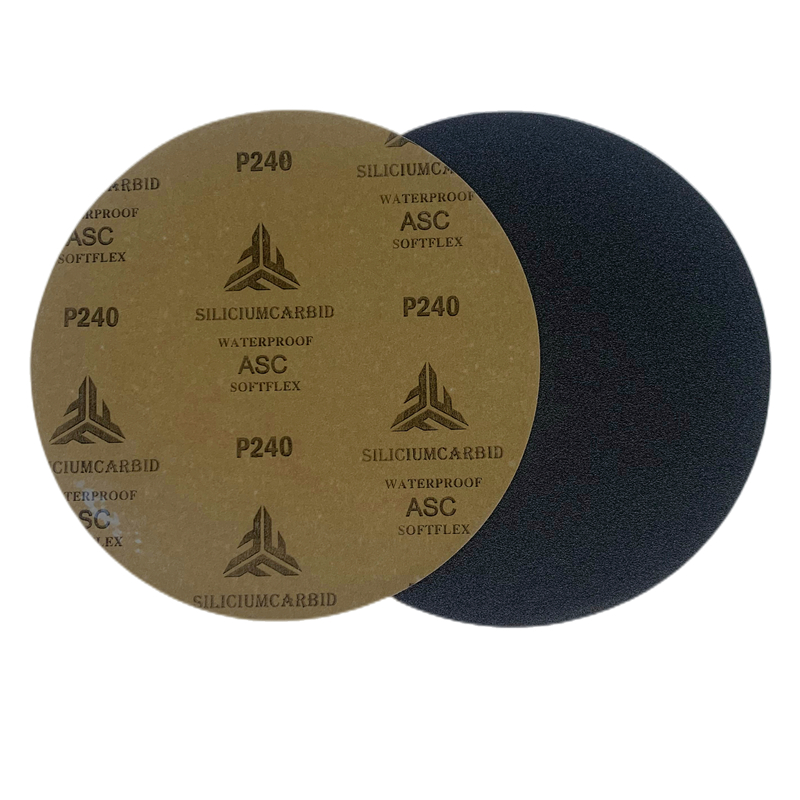

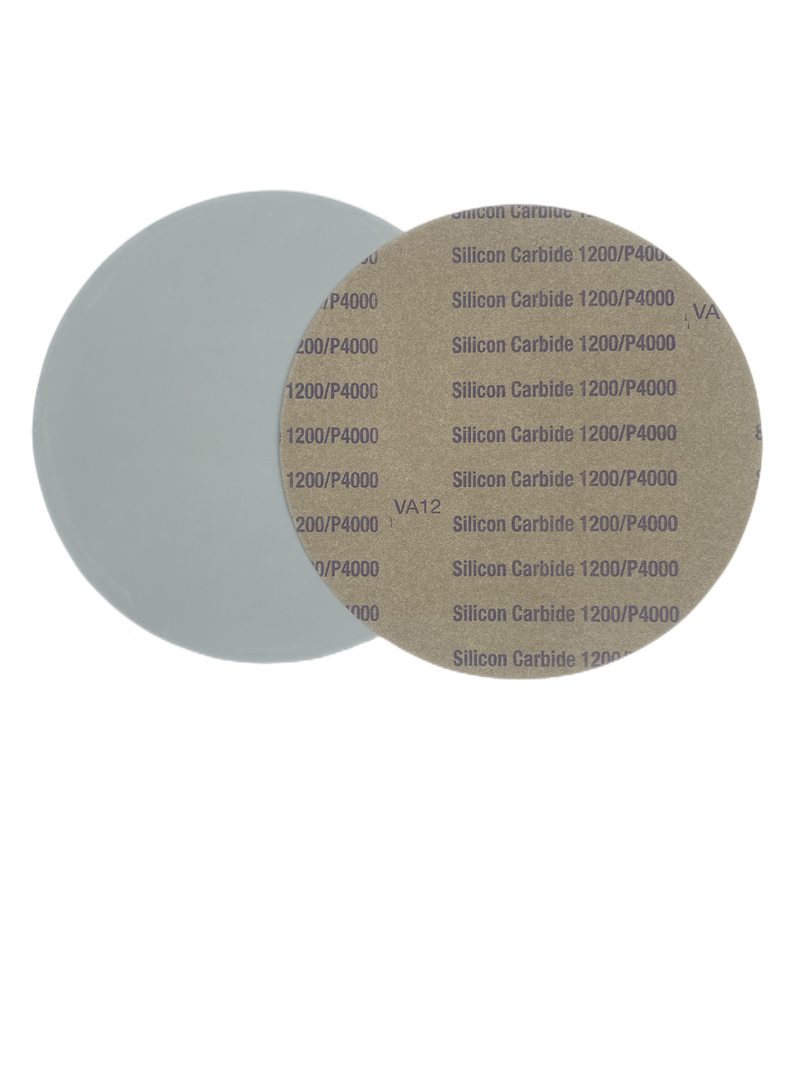

Gold-style sandpaper.

Product Features Technical Parameters Download Order Related Videos Related Optional Products
Fuyun gold sandpapers are the preferred two grindings of carbide and aluminium oxide for imported raw materials, and the reel is the imported PT-face, which can be effective in removing material from the layer and reducing secondary damage to material surfaces.



Material classification: Import of silicon carbide and import of aluminium oxide.

Size classification: 230 x 280 mm square, and 200 mm round (8 inch), 220 mm, 230 mm (9 inches), 250 mm (10 inches), 300 mm (12 inches).

Particle size classification: P80, P120, P180, P240, P320, P400, P600, P800,

P1000,P1200,P1500,P2000,P2400,P2500,P3000,P4000,P5000,P7000。

Zips: Non-gel, tape, velvet, magnetic adsorption.

Logo Classification (both domestic and import): Fuyun brand, neutral (specified only)


Note: The paper is provided with neutral labels.

✪30% high-level emulsion sheet base increases the durability of sandpaper by 50% and has good water-resistant arctic properties

✪Two grindings of carbonized silicon and aluminium oxide, preferred for imported raw materials

✪Rewinds use imported PT-film

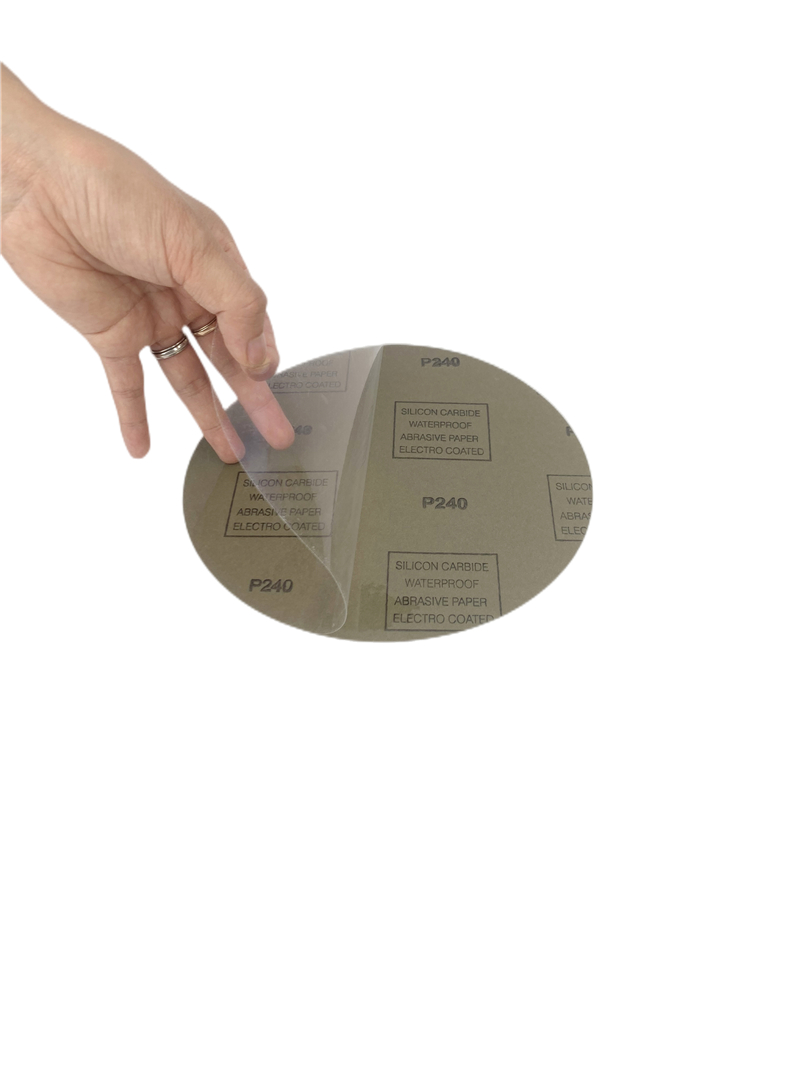

✪Importing 3M back-gels makes sandpaper sticky during use and does not leave any remnants during removal.

✪Strictly grinding grains, tectonic.

✪Unconventional size customizations available


Product Advantages
✪30% high-level emulsion sheet base increases the durability of sandpaper by 50% and has good water-resistant arctic properties

✪Two grindings of carbonized silicon and aluminium oxide, preferred for imported raw materials

✪Rewinds use imported PT-film

✪Importing 3M back-gels makes sandpaper sticky during use and does not leave any remnants during removal.

✪Strictly grinding grains, tectonic.

✪Unconventional size customizations available

Technical Specifications

Gold-Packet Select Table

Model

Specifications

Particle Size(EU-Specific)

ASC(square)

Gold-style sandpaper.100Snippets/Package
Mills: Silicon carbide
Dimensions: Square230mm×280mm
Water-resilient. Imported emulsion.

P80，P120，P180，P240，P320，P400，P600，P800

，P1000，P1200，P1500，P2000，P2500，P3000,P4000

ASC200(Clock, no glue)

Gold-style sandpaper.100Snippets/Package
Mills: Silicon carbide
Dimensions:Φ203  No backlash.
Water-resilient. Imported emulsion.

P80，P120，P180，P240，P320，P400，P600，P800

，P1000，P1200，P1500，P2000，P2500，P3000,P4000

ASC230(Clock, no glue)

Gold-style sandpaper.100Snippets/Package
Mills: Silicon carbide
Dimensions:Φ230  No backlash.
Water-resilient. Imported emulsion.

P80，P120，P180，P240，P320，P400，P600，P800

，P1000，P1200，P1500，P2000，P2500，P3000,P4000

ASC250(Clock, no glue)

Gold-style sandpaper.100Snippets/Package

Mills: Silicon carbide
Dimensions:Φ250  No backlash.
Water-resilient. Imported emulsion.

P80，P120，P180，P240，P320，P400，P600，P800

，P1000，P1200，P1500，P2000，P2500，P3000,P4000

ASC300(Clock, no glue)

Gold-style sandpaper.100Snippets/Package
Mills: Silicon carbide
Dimensions:Φ300  No backlash.
Water-resilient. Imported emulsion.

P80，P120，P180，P240，P320，P400，P600，P800

，P1000，P1200，P1500，P2000，P2500，P3000,P4000

ASC200A(Clock, glue)

Gold-style sandpaper.100Snippets/Package
Mills: Silicon carbide
Dimensions:Φ200  Put the back glue on.,Transparent backlash, no residue.
Water-resilient. Imported emulsion.


P80，P120，P180，P240，P320，P400，P600，P800

，P1000，P1200，P1500，P2000，P2500，P3000,P4000

ASC230A(Clock, glue)

Gold-style sandpaper.100Snippets/Package
Mills: Silicon carbide
Dimensions:Φ230  Put the back glue on.,Transparent backlash, no residue.
Water-resilient. Imported emulsion.

P80，P120，P180，P240，P320，P400，P600，P800

，P1000，P1200，P1500，P2000，P2500，P3000,P4000

ASC250A(Clock, glue)

Gold-style sandpaper.100Snippets/Package
Mills: Silicon carbide
Dimensions:Φ250  Put the back glue on.,Transparent backlash, no residue.
Water-resilient. Imported emulsion.

P80，P120，P180，P240，P320，P400，P600，P800

，P1000，P1200，P1500，P2000，P2500，P3000,P4000

ASC300A(Clock, glue)

Gold-style sandpaper.100Snippets/Package
Mills: Silicon carbide
Dimensions:Φ300  Put the back glue on.,Transparent backlash, no residue.
Water-resilient. Imported emulsion.

P80，P120，P180，P240，P320，P400，P600，P800

，P1000，P1200，P1500，P2000，P2500，P3000,P4000

ASCS200(Clock, no glue)

Gold-style sandpaper.100Snippets/Package
Mills: Silicon carbide
Dimensions:Φ200  No back-tape.,Transparent backlash, no residue.
Water-resilient. Imported emulsion.United States imports

P2400,P4000

ASCS230(Clock, no glue)

Gold-style sandpaper.100Snippets/Package
Mills: Silicon carbide
Dimensions:Φ230  No back-tape.,Transparent backlash, no residue.
Water-resilient. Imported emulsion.United States imports

P2400,P4000

ASCS250(Clock, no glue)

Gold-style sandpaper.100Snippets/Package
Mills: Silicon carbide
Dimensions:Φ250  No back-tape.,Transparent backlash, no residue.
Water-resilient. Imported emulsion.United States imports

P2400,P4000

ASCS300(Clock, no glue)

Gold-style sandpaper.100Snippets/Package
Mills: Silicon carbide
Dimensions:Φ300  No back-tape.,Transparent backlash, no residue.
Water-resilient. Imported emulsion.United States imports

P2400,P4000

ASCS200A(Clock, glue)

Gold-style sandpaper.100Snippets/Package
Mills: Silicon carbide
Dimensions:Φ200  Put the back glue on.,Transparent backlash, no residue.
Water-resilient. Imported emulsion.United States imports

P2400,P4000

ASCS230A(Clock, glue)

Gold-style sandpaper.100Snippets/Package
Mills: Silicon carbide
Dimensions:Φ230  Put the back glue on.,Transparent backlash, no residue.
Water-resilient. Imported emulsion.United States imports

P2400,P4000

ASCS250A(Clock, glue)

Gold-style sandpaper.100Snippets/Package
Mills: Silicon carbide
Dimensions:Φ250  Put the back glue on.,Transparent backlash, no residue.
Water-resilient. Imported emulsion.United States imports

P2400,P4000

ASCS300A(Clock, glue)

Gold-style sandpaper.100Snippets/Package
Mills: Silicon carbide
Dimensions:Φ300  Put the back glue on.,Transparent backlash, no residue.
Water-resilient. Imported emulsion.United States imports

P2400,P4000

ASC-YS(Square)

German warriors.
Gold-style sandpaper.50Snippets/Package
Mills: Silicon carbide
Dimensions:230*280mm
Water-resilient. Imported emulsion.

P80，P120,P180，P240,P320，P400，P600，P800

，P1000P1200,P1500，P2000，P2500，P3000，P5000

ASC200-YS(Clock, no glue)

German warriors.
Gold-style sandpaper.50Snippets/Package
Mills: Silicon carbide
Dimensions:Φ200  No backlash.
Water-resilient. Imported emulsion.

P80，P120,P180，P240,P320，P400，P600，P800

，P1000P1200,P1500，P2000，P2500，P3000，P5000

ASC230-YS(Clock, no glue)

German warriors.
Gold-style sandpaper. 50Snippets/Package
Mills: Silicon carbide
Dimensions:Φ230  No backlash.
Water-resilient. Imported emulsion.

P80，P120,P180，P240,P320，P400，P600，P800

，P1000P1200,P1500，P2000，P2500，P3000，P5000

ASC200A-YS(Clock, glue)

German warriors.
Gold-style sandpaper.50Snippets/Package
Mills: Silicon carbide
Dimensions:Φ200 With back tape. Transparent back tape.
Water-resilient. Imported emulsion.

P80，P120,P180，P240,P320，P400，P600，P800

，P1000P1200,P1500，P2000，P2500，P3000，P5000

ASC230A-YS(Clock, glue)

German warriors.
Gold-style sandpaper.50Snippets/Package
Mills: Silicon carbide
Dimensions:Φ230 With back tape. Transparent back tape.
Water-resilient. Imported emulsion.

P80，P120,P180，P240,P320，P400，P600，P800

，P1000P1200,P1500，P2000，P2500，P3000，P5000

AAL(Square)

Gold-style sandpaper.100Snippets/Package
Mills: Aluminium oxide
Dimensions: Square230mm×280mm
Water-resistant, using imported emulsion paper

P80，P120，P180，P240，P320，P400，P600，P800

，P1000，P1200，P2000，P2500

AAL200(Clock, no glue)

Gold-style sandpaper. 100Snippets/Package
Mills: Aluminium oxide
Dimensions:Φ200  No backlash.
Water-resistant, using imported emulsion paper

P80，P120，P180，P240，P320，P400，P600，P800

，P1000，P1200，P2000，P2500

AAL230(Clock, no glue)

Gold-style sandpaper. 100Snippets/Package
Mills: Aluminium oxide
Dimensions:Φ230  No backlash.
Water-resistant, using imported emulsion paper

P80，P120，P180，P240，P320，P400，P600，P800

，P1000，P1200，P2000，P2500

AAL250(Clock, no glue)

Gold-style sandpaper. 100Snippets/Package
Mills: Aluminium oxide
Dimensions:Φ250  No backlash.
Water-resistant, using imported emulsion paper

P80，P120，P180，P240，P320，P400，P600，P800

，P1000，P1200，P2000，P2500

AAL300(Clock, no glue)

Gold-style sandpaper. 100Snippets/Package
Mills: Aluminium oxide
Dimensions:Φ300  No backlash.
Water-resistant, using imported emulsion paper

P80，P120，P180，P240，P320，P400，P600，P800

，P1000，P1200，P2000，P2500

AAL200A(Clock, glue)

Gold-style sandpaper. 100Snippets/Package
Mills: Aluminium oxide
Dimensions:Φ200  - With back. Transparent. No remnants.
Water-resistant, using imported emulsion paper

P80，P120，P180，P240，P320，P400，P600，P800

，P1000，P1200，P2000，P2500

AAL230A(Clock, glue)

Gold-style sandpaper. 100Snippets/Package
Mills: Aluminium oxide
Dimensions:Φ230  With back.
Water-resistant, using imported emulsion paper

P80，P120，P180，P240，P320，P400，P600，P800

，P1000，P1200，P2000，P2500

AAL250A(Clock, glue)

Gold-style sandpaper. 100Snippets/Package
Mills: Aluminium oxide
Dimensions:Φ250  - With back. Transparent. No remnants.
Water-resistant, using imported emulsion paper

P80，P120，P180，P240，P320，P400，P600，P800

，P1000，P1200，P2000，P2500

AAL300A(Clock, glue)

Gold-style sandpaper. 100Snippets/Package
Mills: Aluminium oxide
Dimensions:Φ300  - With back. Transparent. No remnants.
Water-resistant, using imported emulsion paper

P80，P120，P180，P240，P320，P400，P600，P800

，P1000，P1200，P2000，P2500

FYALS350(Clock, inner hole)32and40mm）

Sandpaper for spectrometer10Snippets/Box

The grinding effect is evident in the electrostatic sand, which is effective in preventing dissinouring, special coatings, effective in preventing sand congestion, providing useful life, and finely matched with tools during grinding, and increasing the efficiency of grinding.

Wave-resistant, long-lived, and grinding produces less heat.

40Purpose,60Purpose,80Purpose,100Purpose,120Purpose,150Purpose,180Contents

，240Contents,320Contents,400Contents,600Contents

FYALS400(Stands, inner holes)32mmand40mm）

Sandpaper for spectrometer10Snippets/Box

The grinding effect is evident in the electrostatic sand, which is effective in preventing dissinouring, special coatings, effective in preventing sand congestion, providing useful life, and finely matched with tools during grinding, and increasing the efficiency of grinding.

Wave-resistant, long-lived, and grinding produces less heat.

40Purpose,60Purpose,80Purpose,100Purpose,120Purpose,150Purpose,180Contents

，240Contents,320Contents,400Contents,600Contents
