1） (a) Ventilation is controlled by liquid crystal panels, micro-machines;

2） (b) The ventilator is installed outside the room and there is no noise in the room;

3） The components are made of acid-resistant PP materials and are used uncorrosively for long periods;

4） Workspace: made of 12 mm PP board, acid and high temperature;

5） The alkaline resistance is excellent.

6） PP tanks: Dimensions: 384*285*270mm

7） (b) A strong acid-resistant wind machine, wind: 3,000 m3/h;

8） Flower-size (mm): 1800 (wide) X 850 (deep) X 2350 (high)

9） Acid fog and device size (mm): 1200 (wide) X 850 (deep) X 2350 (high)

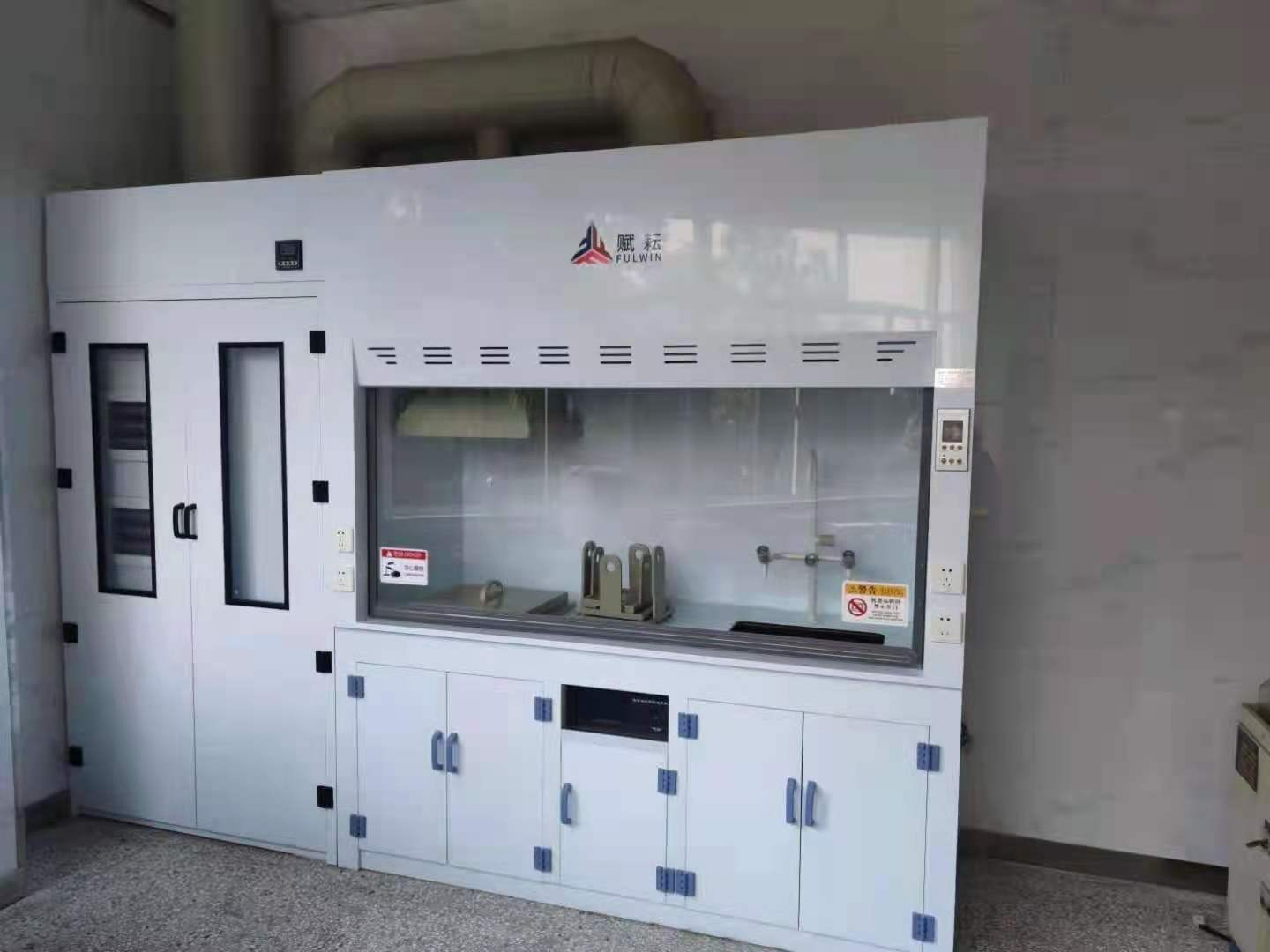

10） (b) Integration of low-acrylic corrosive devices and ventilation systems (see right-hand figure);

11） (c) Bring a heating device to wash samples (selections) in time with hot water.

✪II. OXYL AMOUNT AND COMPLETE

When low-multiple corrosive or other corrosive acid fog passes through the device, acid fog is removed from the bottom up, alkaline water is sprayed from the top, acid, alkaline and treatment is performed on a large volume of the ball interface, filtered and gas that meets the emission criteria is removed from the room.

Include the following sections:

1） Waste gas towers

2） Alkaline tanks

3） Sprayer

4） Cycle pump

5） Balls.

6） In, out of the wind.

7） Sodium carbonate

✪III. Special remarks:

During the installation process, the construction of the building, such as the opening of a wall, was carried out by the demand side.
