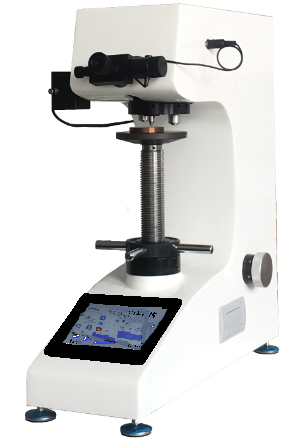

Touch screen automatic turn-up towers, FY-HVS-5MS

Fuyun products are of stable quality, product solutions are rationalized, post-service training is trackable and timely, continuous innovation makes detection easier, and the whole market receives a reputation for high-quality evaluation from various applications. We also work with us on a programme for high-cost and inefficient conditions in the context of German imports, such as Gutha and France’s Lang Plann.

Application Scope

Surface overlay, steel, non-ferrous metals, ... ceramics, alloys, etc.;

(b) Thermal treatment, carbonization, sclerosis of the acne, nitrogen stratification;

Small and thin parts, etc.

Product Advantages
✪7 inch touch screen display, menu structure,

✪The test process is automated and simple to operate.

✪High-level optical systems, light light can be adjusted at level 10.

✪with hard value conversion, hard up and down.

✪Enter the diagonal D1 and D2 encoders to reduce human error.

✪The mirror and the head can automatically switch to position accuracy (Z has automatic tower function)

✪Test results and data processing can be exported via udis.

Technical Specifications




HV5

0.3Kgf、0.5Kgf、1Kgf、2Kgf、3Kgf、5Kgf

           Test force.

HV10

0.3Kgf、0.5Kgf、1Kgf、3Kgf、5Kgf、10Kgf

HV30

1Kgf、3Kgf、5Kgf、10Kgf、20Kgf、30Kgf

HV50

1Kgf、5Kgf、10Kgf、20Kgf、30Kgf、50Kgf

Convert Ruler

Los Angeles, surface Los Angeles, Burrows.

Minimal measure units

0.125 m (based on selected lens)

Total Zooming Multiple

Observation or measurement100X measure 200X (Special mirrors should be customized)

Data Output

USB export; printing output (inline printer or RS232 option)

- Garbage control.

Automatic (gaff, bob, deload),

Instrument weight

About45kg

Maximum size of the test

Maximum height165mm  Head center to the inner wall, 130mm.

Power

AC220V±5%,50~60Hz

Implementation standards

GB/T4340.2 National standard JJG151 Checking protocol

Standard accessories Annex



Mirrors.20x, 10x, wilk, numerical measurements, 10x, large flat, medium flat, V-type, hard-drive (2), power lines, etc.

Selecting accessories

 XY workstation, CCD measurement system.
