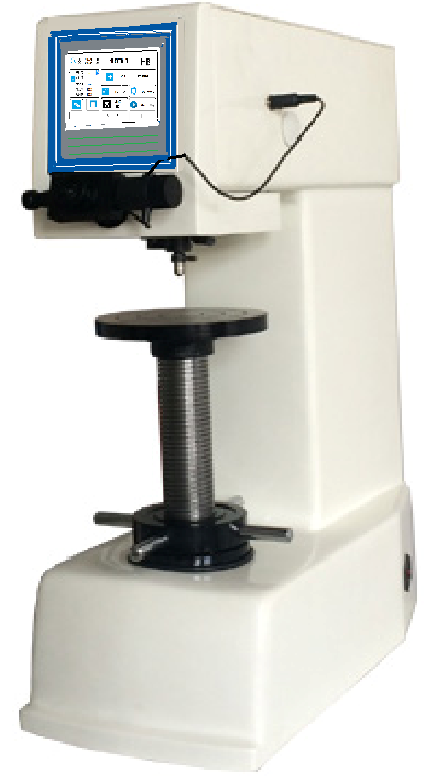

Touch screen direct reading FY-HBS-3000MD
Fuyun products are of stable quality, product solutions are rationalized, post-service training is trackable and timely, continuous innovation makes detection easier, and the market is well-evaluated. We also work with Germany’s Gusha, France’s Langplen, and others to provide good solutions to high costs and inefficiencies under demanding conditions.
✪FY-HBS-300MD direct reading D.S.S.S. is new and has a new generation of B.S. hard-meters with advanced domestic levels.
✪For ferrous metals, non-ferrous metals are determined by the hardness of the breeches.
✪The machine uses closed-ring sensors for loading, electronic control systems, photo-telepathic systems, etc., with a 10-scale test power.
✪Touch screen operations are simple intuitive, with the option of conversion between the test method and the various hard degrees, the operating processes and the tests✪The data on the results can be displayed on screen 5.6, and the data on the results of the tests can be exported through printers and USB.
✪This machine is used in laboratories of various types of production and processing enterprises, colleges and universities, and scientific and technological machinery.
- The Bozz scale. | HBW2.5/62.5、HBW2.5/187.5、HBW5/62.5、HBW5/125、HBW5/2、HBW5/750、HBW10/100、HBW10/250、HBW10/500、HBW10/1000、HBW10/1500、HBW10/3000 |
Test force. | 62.5kgf (612.9N)、100kgf (980.7N)、125kgf (1226N)、187.5kgf (1839N)、250kgf 250kgf (2452N)、500kgf (4903N)、750kgf (7355N)、1000kgf (8907N)、1500kgf 1500kgf、(14710N)、3000kgf (29420N) |
Standard hardweight block | HBW/3000/10(150～250)/ One dollar. HBW/1000/10(75～125)/ 1 MBW/187.5/2.5 (150 ~ 250)/ 1 block, Grand flat test table/1 only, Chinese flat test table/1 only, “V” test table/1 only, power line/1 root, paper paper 1 print, product certificate/1 and product usage instructions/1 |
Porche Time | 5~60S |
Hardness Test Range | （8～650）HBW |
Microscope magnification rate | Twenty times. |
Minimal score value for microscopes | 0.625um |
Maximum height of the sample | 230mm |
Maximum distance from the center of the head to the body. | 150mm |
Implementation standards | GB/T231.2 National Standard JJG150 Checklist |
Standard accessories | 20X microscope one, hard alloy ball head: 2.5, 5, 10 mm/one each |
