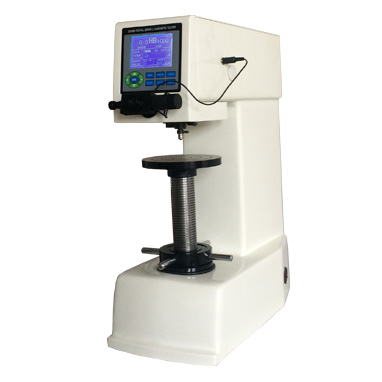

Direct reading FY-HBS-3000

Product Features Technical Parameters Download Order Related Videos Related Optional Products
1. BL: HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250,  HBW10/500、HBW10/1000、HBW10/1500、HBW10/3000

Test strength: 62.5 kgf (612.9 N), 100 kgf (980.7 N), 125 kgf (1226 N), 187.5 kgf (1839 N), 250 kgf 250kgf (2452 N), 500 kgf (4903 N), 750 kgf (7355 N), 1,000 kgf (8907 N), 1500 kgf 1500 kgf (14710 N), 3,000 kgf (294220 N)

3. Bond time: 5~60S

4. Hardness test range: (8-650) HBW

Microscope magnification rate:         Twenty times.

6. Minimal fraction values for microscopes:       0.625um

7. Sample height:             220mm

8. Head centre to airframe distance:   145mm

   Instrument size: 550x250x780mm (long x width x height, LXWXH)

9. Implementation standards: GB/T231.2 standard JJG150 inspection protocol

Product Advantages
✪(b) the use of closed-ring sensors for loading, electronic control systems,

✪Systems such as PVS, with a 10-degree test power.

✪By soft-key input, you can select conversions between test methods and various hardness levels.

✪The data on all the processes and test results can be shown on the LCD screen.

✪The data for the test results can be exported through the printer.

✪Head and mirror manual switch.

Technical Specifications

Standard accessories

20X microscope

One.

Hard-quality alloy ball on the head.

2.5, 5, 10 mm/ 1 each


Standard hardweight block

HBW/3000/10 (150-250)/$1

HBW/10000/10 (75 ~ 125)/ $1

HBW/187.5/2.5 (150 ~ 250)/Big 1

Da Ping Test Station

One.

China Pyming Test

One.

Test table for "V"

One.

Powerline

One.

Printer instructions, paper printing

1 per unit

Product Qualification Certificate

1

Product use instructions

1
