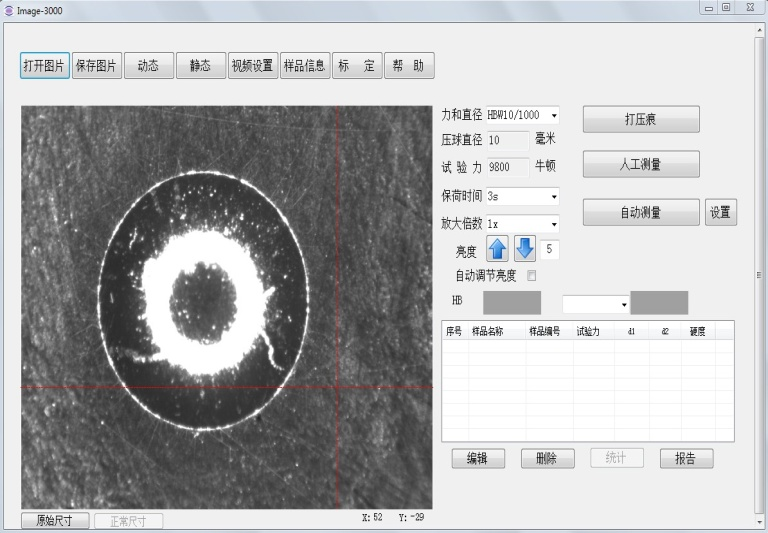

1. Automatic measurement: Automatic or artificial capture of pressure marks and detection of the diameter of the pressure marks and calculation of the corresponding Bodc hardness values;

2. HB2 Automatic Measurement (DIN 1605 German Industrial Standard): Automatic or manual detection of the pressure diameter of standard test blocks and test elements, and automatic check table plugins to calculate the test HB value;

3. Hardness conversion, effective validation: The system can convert measured B.B. hardness values to other hardness values such as HV, HR, etc.;

4. (a) Data statistics: the system automatically calculates the average of the measured hardness, the difference in the statistical value;

5. Superscript alarm: automatically mark an anomaly value and automatically alerts when the hardness exceeds the specified value;

6. Test report: Auto-generated WORD or EXCEL format reports, reporting templates customised;

7. Data storage: Measurement data, including usable documents such as laminated images;

8. Other functions: (a) All functions of the microimage processing and measurement system, including image filming, marking, image processing, geometric dimension measurement, document labelling, album management and fixed-multiplier printing;
