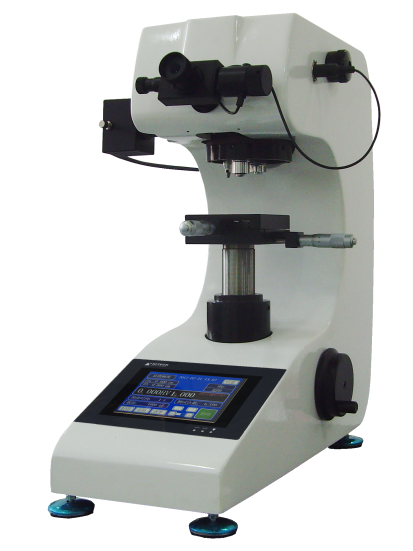

Touch screen automatic transfer towers, microhards, FY-HV-1000CMZ

Fuyun products are of stable quality, product solutions are rationalized, post-service training is trackable and timely, continuous innovation makes detection easier, and the whole market receives a reputation for high-quality evaluation from various applications. We also work with us on a programme for high-cost and inefficient conditions in the context of German imports, such as Gutha and France’s Lang Plann.

Application Scope

Surface overlay, steel, non-ferrous metals, ... ceramics, alloys, etc.;

(b) Thermal treatment, carbonization, sclerosis of the acne, nitrogen stratification;

Small and thin parts, etc.

Product Advantages

✪7-inch colour screen display, menu-based structure, automation of the test process, and simplicity of operation;

✪High-resolution optical systems. Light-source brightness can be adjusted at 20 levels;

✪(a) A hard value conversion function, a hard- and low-scaling judgement;

✪(b) Inputs into the diagonal D1 and D2 encoders to reduce human error;

✪(b) The mirror and the head pressure can automatically switch to precision;

✪Test results and data processing can be exported through printers.

Technical Specifications

Test forcegf	10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N )、 200gf (1.96N)、300gf (2.94N)、500gf (4.9N)、1000gf (9.8N)
Minimal measure units	0.03125μm
Total Zooming Multiple	100X (observation, 400X (measurement)
The adder way.	Automatic (gaff, bob, deload)
Porche Time	0-60 seconds to be transposed
Instrument exterior size	405 x 290 x 480 mm (long x wide x high)
Instrument weight	40kg
Test Active Height	90mm
Head center to inner wall.	120mm
Power	AC220V±5%，50~60Hz
Implementation standards	Precision in GB/T4340.1 GB/T4340.2 IS06507-2 ASTM_E384
X-Y test table	Dimension: 100 x 100 mm, Max. 25 x 25 mm
Standard accessories	Mirrors 40x, 10x, Vidcor, Measurements 10x, Standard Hard Block (2), thin-form test table, cylindrical test table, flat-pit test table, horizontal instrument, power lines, assistive tools, etc.
Selecting accessories	CCD camera measurement system. Nuzzle head.
