Full automatic micro-width hard-drive FY-HVS-1000MSZ-XYZ

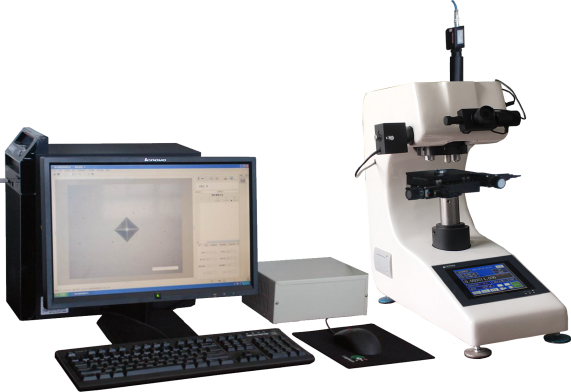

FY-HVS-1000MSZ-XYZThe fully automated micro-mixed hard-weight meter, using integrated cast aluminium body, and the steady and long-term non-morphic physical properties, the carrier table is a new design that can be automatically and manually increased. It is used mainly for the measurement of the micro-mixed hardness of metals and some non-metallic materials, and it allows the determination of the hardness of various parts (processors, exercise, casting iron, casting steel, etc.), non-ferrous metals and thermal treatment parts, and is also applied to the determination of the the thermal effect of the effective hard layer depth, coating and welding. It is also used for observation of the gold-phases within the metal parts and for the collection, display and output of images.

Product Advantages

✪XYZ sample movement control: The system provides XY mobile sample table and Z axis control; can be controlled by a roller, software control can also be manually regulated; XY can move simultaneously; XYZ can fine-tuned the key to the keyboard;

✪Camera: 1.3M pixel CCOS USB2.0 camera, other optional;

✪(b) The system provides various load modes, including along the line, along the edge, along the edge of the curve, etc.; the loading point coordinates are set at all times;

✪Automatically loosing the edge: autoscan along the edge of the sample and automatically finding the turning point, such as the tooth-cap root;

✪Automatic loading, focus and measurement: system autoloading, automatizing and automeasurement at multiple points in the defined mode of loading, and automatically drawing a hard curve; one key complete;

✪(a) The system can convert measured micro-width hardness values to multiple other hard-scale scales, such as HB, HR, etc.; the measurements of the ball-surface cylindrical sample can be amended; and the sample measurements can be effectively validated;

✪(a) Data statistics: automatic calculation of the averages, variance, Cp, Cpk, etc. of the measurements of hardness;

✪Data storage: measures data and images, etc., can be stored in a document for subsequent release;

✪Test report: Auto-generated WORD or EXCEL document report; user-specific report format; standard format includes each hard measure, statistical value, laminated image, and hard curve; user can also enter custom additional information for reporting; test data can also be sent to the specified web port.

✪Nuidium hardness: can be set to Nuidian hardness measurement;

✪Fracking resilience: can be set to measure the fracture resilience of the pressure marks;

✪Other functions: (a) All functions of the iVision-PM microimage processing and measurement system, including image filming, marking, image processing, geometric dimension measurement, document labelling, album management, and fixed-multiplier printing;

✪Manual modifications: Measurements can easily modify the latency mark by drag and drag manually with the mouse, and measurements and statistical results will be automatic.

Technical Specifications

Model	FY-HVS-1000MSZ-XYZ
Test force.	10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)
Implementation standards	GBT4340.1，GBT4340.2，ASTM_E92
Test force application method	Automatic (gaff, bob, deload)
XYZ sample table and movement control	The system provides XY mobile sample table and Z-axis control: 1.XY Process: 50 mm*50 mm surface dimension: 110 mm x 110 mm, repeat accuracy<2um; XYZ-place resolution up to 0.1m; process and size custom 2. Automatic edge scanning: autoscan and depict the whole map of the edge of the sample along the edge of the sample for use in the loading path planning, suitable for hardness measurements that need to be taken at the specific location of the sample 3. XYZ can be moved at any speed 4. Move or rise by pressing the direction button or keyboard or by entering a moving distance, etc.
Load Mode and Path Settings	Load Path Settings provide the following mode: 1. Across the route; 2. Azimuth along the route; 3. Free click; 4. Azimuth; 5. Azimuth; 6. Multiple lines along the curve; 7. Acronyms along the curve; 8. Circumcular arc; 9. Cartiental; 10. Parallel to the top; 11. Automatic angle along the edge band; 12. Automatically following the edge matrix; 13. Circles.
Full AutoSeparation	Automatically load, focus and measure the hardness values by the specified loading path-by-point; and draw the harding curve automatically; one key completes: 1. Minimum HV can be set and measurement automatically stops when it reaches that value 2. After the measurement is completed, the additional point can be added to the original path 3. The measurement image at each point is saved for final manual correction; only the mouse drag-and-drop-trace quadrilateral border, hard measure values, statistics, and measurements of image book, etc., are required for the amendment
Camera and calibration management	1.1 million pixels USB2.0 CCOS dedicated to microscope measurement cameras (3 million pixel cameras optional) 2. The camera may be marked by hard-scale blocks or by two methods: 3. To improve measurement accuracy, different test forces can be separated and systems automatically loaded
Hardness conversion, fixation, validity validation	Hardness conversion: measured wilness values can be converted to a standard, national or other hardness values such as HB, HR, etc.; Hardness correction: The measurements of the spherical or cylindrical samples may be amended; 3. Validity verification: Calculate the smallest sample thickness, the distance from the test point to the edge of the sample, and the distance from the test point based on the measured hardness value
Data statistics	Autocalculates the mean, variance, Cp, Cpk, etc. statistical values of the hardness
Stuck Curve	Automatically draw a hardened curve: 1. Multiple harding curves or single curves by average can be generated automatically under a measurement path; 2. 3D hard curves for HV to XY
Data storage	Original measurement data and images, etc., can be stored in documents for subsequent call-out reports; a file saves all data from a measurement
Test report	Auto-generated WORD or EXCEL document reports; report formats are custom-able; standard formats include hardness values, statistical values, laminated images, and hardened curves for each measurement point
Nuzid Hardness	Set to Nuidium Hardness Measurement
Fractal resilience	Set to measure the fracture resilience of the pressure marks
Other functions	Includes image/video filming, image processing, geometric dimension measurement, document labeling, album management, and fixed-multiplier printing; document labeling can input text, list, and pictures on images, etc.

1Standard configuration of hard meters

Name	Number	Name	Number
Axes	One.	Wing	Six.
Cross-platform	One.	Slender-Stealed Platoon	One.
- The table is flat.	One.	- The Visible.	One.
Screwed knife.	Two.	Horizontally calibrated screws	Four.
10x microscope	One.	Micro Hard Block	Two.
Second light bulb (Present)6V/12W)	Two.	The back-up fuse.1A	Two.
Horizontal	One.	Product Qualification Certificate	1
Product use instructions	1

2Standard configuration of measurement software

Name	Number	Name	Number
XY powered shift desk	One.	Z-axis motors.	One.
Powerline	One.	XYZ Step Drive	One.
XY Connection	One.	USB Connection	One.
1.3 million special cameras.	One.	RS232 line	One.
Encrypted Dog	One.	Software installation CD-ROM	One piece.
