In the field of material detection, gold phase analysis, failure analysis, new materials development,The sample polishing is a central and critical step in determining the accuracy of the experimental data, the clarity of the gold phase images.。
Many laboratories encounter these pains: the surface of the specimens is so thinly stained after polishing, soft materials so easily deformed, hard alloys are so inefficient, suspensions so fast that they are thin and thin, samples oxidize black and mirror effects are so poorly reflected.……
It's not about the modus operandi, it's about the basics.Unsettled photomedia selection, mixed quality of diamond particles, unstable suspension formulationThe resulting model failed.
As a service provider for the testing of consumables and sampled programmes, the government has been working to improve the quality of the products.Fuyun detection technologyDeep-tilled gold-forming field, targeted research and development, for many yearsHigh-precision diamond suspension.The total particle size, the total scene polishing demand, the finely finely adapted mass of the metal, alloy, ceramics, semiconductor, hard materials, etc., and the fine-sharp, super-precision-painting process, one-stop solution to the problems of polishing the gold-forming samples.
I. Why is gold-skinned, and the first choice is a diamond-slipped fluid?
The core principle of gold polishing is to use the micro-cracking of hard grinders to remove the remaining deformation, scarring layers left after the specimen has been sharpened and to obtain a smooth, bright, non-damaged mirror surface without destroying the material gold phase.
Common silicon dioxide, aluminium oxide polish, low hard, only supersoft materials polish, forSteel, hard alloy, ceramics, titanium alloy, gill steelThe high-hardness material, which is severely under-cut, not only has the light been extremely inefficient but also has a high degree of sanding and subsurface scarring.
Diamonds are the most known of the hardness of nature.With super-heavy, excellent micro-corcharial performance, it is the core grinding material for gold-skinned fine polishing and the standard utensils for high-precision gold-spectrum samples and high-end material detection in the industry.
Fuyun-slide suspension, through precision matching, stabilization process, and particle-graded purification, has completely addressed the common problem of the silt, sunk and cut-off of diamonds, so that each polishing is stable, efficient and harmless.

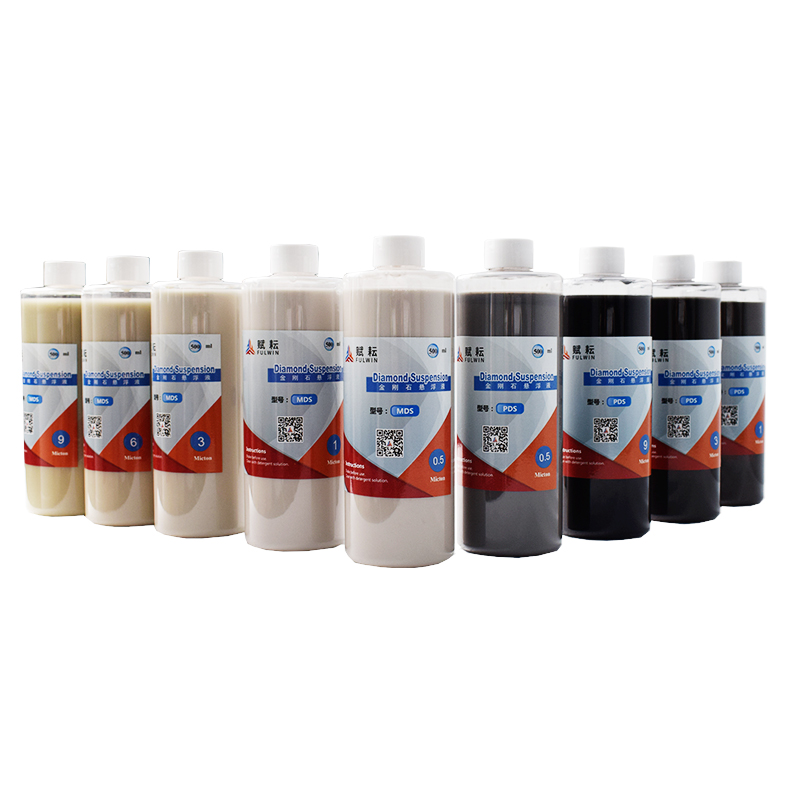

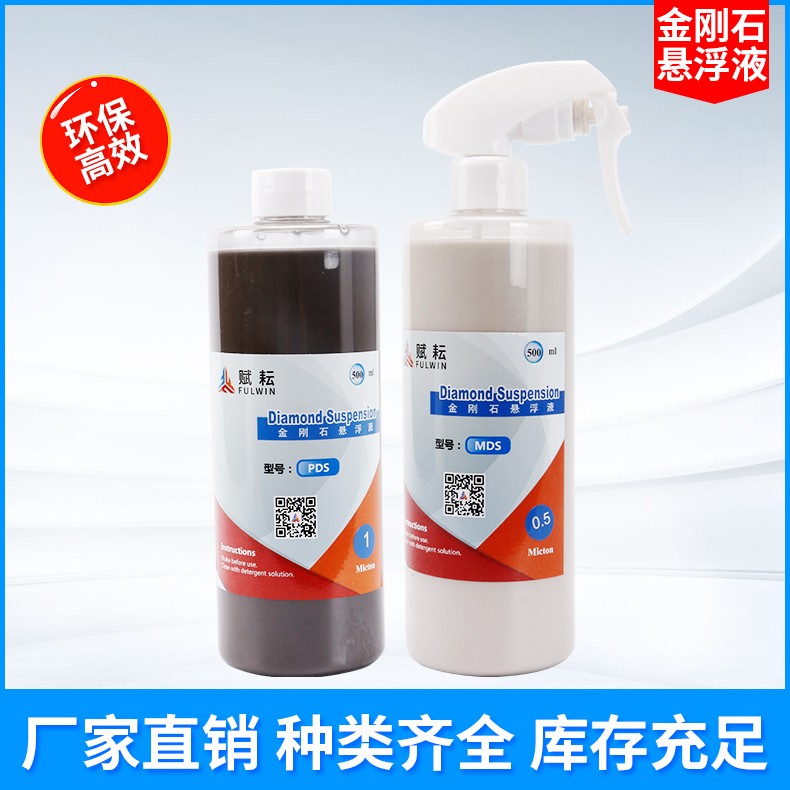

Two full-system series of Fuyun diamond suspensions, suitable for full-situation samples
Fuyun detection techniques are based on a precise classification of the different material samples, different polishing processes, different experimental environmentsWater-basedMDS、Oil-basedPDSTwo core series, full particle coverage, adapted to all laboratory polishing needs, according to the type of needs selected.

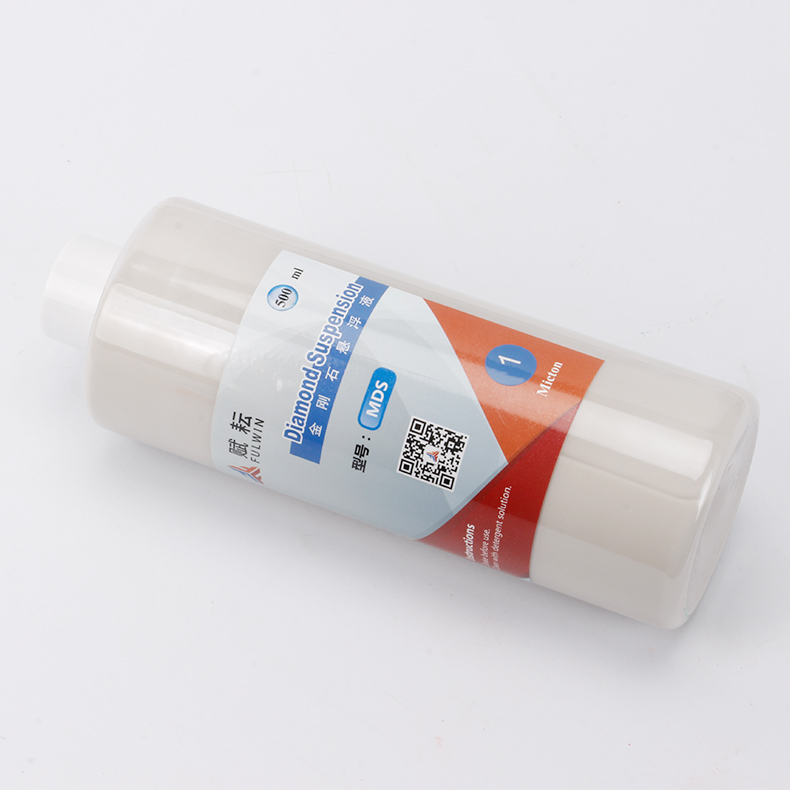

1、MDSWater Fund sank (general-purpose explosive)
The application of environmentally friendly water formulations, which are oil-free, non-residual and dispersible, is the preferred option for the polishing of conventional metal materials.
Core characteristics：
• Water systems are spreading fast, and no heat is generated during the polishing.No hot-to-skin-to-skin, no burning.；
• Simple cleaning, and immediate water wash after polishing is completed, with no oily residues, without subsequent corrosive, micro-observation;
• (a) Good mobility and moderate lubrication, balancing the cutting power with the flatness, and not prone to tailings and oranges defects;
• Environmental protection is free of all forms of harmful additives, and is suitable for high school laboratories, quality-checking institutions, and routine testing in enterprises.
Application of materialCommon carbon steel, stainless steel, mould steel, cast iron, hard ceramics, semiconductor crystals, common alloys, etc., are common, high temperature-resistant and clean-up-like samples.

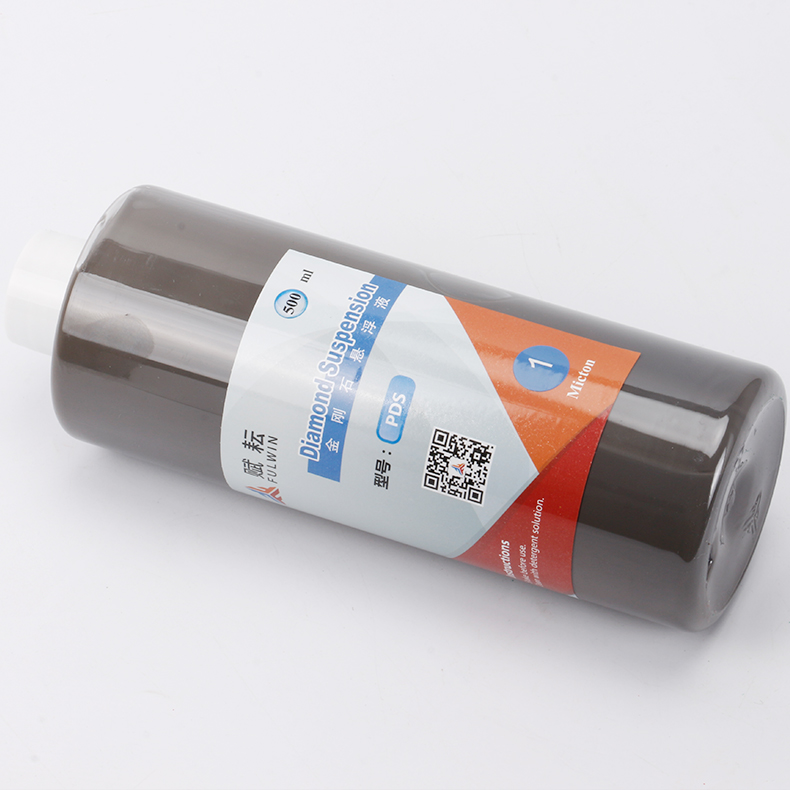

2、PDSOil Fund, sank sanctuaries (precision specialty)
High-Lubrication Imported Oil Solvent formulations, sealing, oxidizing, lubricating far above water-based, specially designed for difficult and sophisticated samples.
Core characteristics：
• Very strong lubricant buffers, effective protection of soft materials,No surface deformation, stripping, tailing of soft materials such as aluminium, copper, magnesium alloy；
• Oily systems are insulated from air and can effectively prevent active metal oxidation, blackening, rusty and the surface cleanness of samples;
• (a) More stable grinding spread, with high load polishing, suitable for long, high-precision mirror polishing;
• High-demand experimental scenarios such as calibration and failure analysis, and high-end new material detection.
Application of material: Pure aluminium, aluminium alloy, pure copper, copper alloy, titanium alloy, magnesium alloy, axle bearing alloy, oxidation, deformed soft and fine metal specimens.
3Full particle coverage, full process adaptation
Fuyun's two series of suspended fluids are available0.5μm、1μm、1.5μm、2.5μm、3.5μm、6μm、9μmFull particle size, perfect match to complete gold phase process:
• Bold Throw (Bold Throw)3.5-9μm）• Rapid removal of grinding marks, surface damage layers of samples, efficient levelling and significantly reduced sampling time;
• Middle Throw1.5-2.5μm）• Detailed surfaces, elimination of coarse plowing marks, transition to surface level and bottoming for fine-scattering;
• Scratch/Mirror Throw (Face Throw)0.5-1μm）: Remove the fine-twirl tracks and achieve the hyperscopy effect, meeting the need for high-multiple microscope observations and photographs.
Core technological advantages, distinct from ordinary impurities
Most low-cost suspended diamonds in the market today have uneven sizes, grindings, heavy depositions and a lack of cutting power, which appear to be low-cost and are highly likely to cause the end of the trial, re-entry, data error and, instead, significantly higher combined laboratory costs.
Fuyun suspended diamonds are tri-stricted from feedstock screening, production processes, and quality-checking standards, with five core advantages, and are adapted to standardized laboratory testing requirements:
1High-purity single-crystal grinding, cut unharmed.
The luminous luminous luminous process does not involve local over-cutting, dot-stripping, maximum protection of the original gold-forming tissue of the specimen, avoidance of the creation of a fake tissue and protection of the true accuracy of the detection data.
2Special sediment-proof formulations, lasting stability without layers
Imports are added to the decentralized stabilizer, which is processed through high-speed, equal, multi-scale filtration processes, so that the granules of diamonds are extremely floating.
3, soft and hard formulations, with a balance between cutting strength and flatness
For the optimal formulation ratio of the different materials, the high hardness material ensures sufficient cutting efficiency and the soft material optimizes the lubricants buffer. Neither the problem of impotence nor the inefficientness of surface squeezes, the drag of crystals, or the failure of edges.
4High compatibility, fully compatible polishing equipment
Perfectly fit for Fuyun and various brands of full-automatic gold-ray projectors, semi-automatic projectors, manual projectors, with various types of gold-rayable plasters such as velvet, velvet and canvas, and for standard laboratory sampling processes without changing equipment parameters.
5Standardized mass production, quality stable traceable
The product is produced in strict compliance with the standards of the material-detection-based industry, and each batch is measured by particle size, suspension stability, photometric, and very small batch variations, suitable for long-term stability in the use of higher education research, third-party testing institutions and enterprise quality-checking laboratories, and supports bulk purchasing and custom matching.
IV. Standardized use of operational guidelines and easy-to-exit interviews
Many samples have a poor photo-perform, not only for the material, but also for the means used. The correct use of Fuyun-supplied diamonds can maximize the photo-perform and increase the success rate of the samples:
1. Full shattering before use: Shake up and down before the opening30(b) A finely dispersed grinding particles, which are more than a second old, and which ensure evenly distributed particles;
2. A few more times.: prohibition of one-time large-scale dumping, each drop-in3-5(a) A drop-in, with a small addition based on dry and wet disks, to avoid excessive fluids leading to the slippage and the irradiation of samples;
3. Process precision matching particle size: Strictly observed“Bold throw.→Middle Throw→Scratch”Gradual decrease in the particle size, which prohibits the jump through the process of a thick plume directly at a fine particle level, so as to avoid the inescapable removal of deep cuts;
4. Distinguishing Cleaning Method: The water-based suspension is polished and the specimen is washed with pure water+The wind-dryer is cold; the oil-based suspension needs to be accompanied by special gold-phase cleaning solvents, alcohol cleaning to avoid oil pollution residues;
5. Regulation of stockpile conservation(b) The constant temperature-shield seal is kept, and the bottle covers are tightened immediately after use to prevent volatilisation, dust entry and high temperature storm sun and low temperature freeze.
V. RELEVANT SOLUTIONS FOR PLACE-POUND ISSUES
Q1: A small scratch on the surface of the specimen after the polishing?
A: The approximate rate is inappropriate particle selection, residual impurities of polished or ungraded. It is recommended to replace the corresponding particle-level suspension, replace the whole new polished and operate strictly in accordance with the crude, medium and fine-screw process.
Q2: Soft aluminium alloy, copper alloy polished, deformed, tails dragged?
A:Replace FuyunPDSThe Oil Fund is in a state of rock suspension, which reduces the speed of the projector, reduces pressure pressure and protects the soft base with the high lubricability of the oil formulation.
Q3: Suspense of suspension, unstable use?
AFuyun suspension self-contained sediment-proof formulations, with rapid deposition mostly resulting in long-term static, sufficient to smov each time before use, without affecting the product ' s own performance.
Q4: Inefficient polishing, hard materials unpaved?
A: high hard material preferences2.5-9μmLarge particle-level suspension, with appropriate adjustments to the speed and pressure of the projectile, to increase the efficiency of the microcut.
Application of a whole-of-the-scenes scenario to cover industry-wide testing needs
Fuyun suspended diamonds are widely used in a wide range of areas, based on stable quality and excellent polishing:
• Scientific research institutes(a) The Golden-Yo-Yo experiment at the Institute of Materials, the development of new materials and the preparation of a pilot project;
• Third-party testing facilitiesStandardized gold-phase detection, failure analysis, quality inspection reports;
• Industrial manufacturing enterprises(b) Steel, hardware, aerospace, car parts, molds, semiconductors, and ceramics;
• Precision field of detectionHigh-end alloy, precision devices, microscopy over-sight-sighting.
Concluding remarks
The gold is a tact.Details determine accuracy, and the waste material determines success or failure.A stable, high-quality diamond suspension can significantly reduce the end-of-life rate of samples, reduce the return to work of experiments, and improve detection efficiency, so that each gold spectrograph is clear, accurate and meets industry standards.
Fuyun detection technologyThe consistent focus on the whole-process solution of the gold phase is supported by the provision of all-facility materials, such as gold-phase polish, gold sandpaper, corrosive fluid, mosaics, and sample-making equipment, in addition to the gold-formula suspension, which meets the needs of the laboratory sample.
